أوراق نانوية فائقة الرقة ذات سبائك عالية الانتروبيا مصممة بذرات مو مفردة مع إجهاد شد داخلي تعزز التحفيز الكهربائي Single-atom Mo-tailored high-entropy-alloy ultrathin nanosheets with intrinsic tensile strain enhance electrocatalysis

المجلة: Nature Communications، المجلد: 15، العدد: 1
DOI: https://doi.org/10.1038/s41467-024-45874-z
PMID: https://pubmed.ncbi.nlm.nih.gov/38480686
تاريخ النشر: 2024-03-13

أوراق نانوية فائقة الرقة ذات سبائك عالية الانتروبيا مصممة بذرات مو مفردة مع إجهاد شد داخلي تعزز التحفيز الكهربائي

تاريخ الاستلام: 23 يونيو 2023
تم القبول: 6 فبراير 2024
نُشر على الإنترنت: 13 مارس 2024
(أ) التحقق من التحديثات

لين منغغانغ لونغيو شوو جينغ يكون ليو فينيانغ تيان مينغتشوان لو هو ليو يونغشينغ يو وي وي يانغ شاو جون قوه ©

إن التكامل الهيكلي الدقيق لميزات الذرات الفردية وسبائك عالية الانتروبيا من أجل التحفيز الكهربائي للطاقة جذاب للغاية لتحويل الطاقة، ولكنه لا يزال يمثل تحديًا كبيرًا. هنا، نبلغ عن فئة من نانوصفائح سبائك PdPtNiCuZn عالية الانتروبيا المصممة من ذرات مو فردية مع تجمعات رقيقة من البلاتين و إجهاد شد داخلي. ) كعوامل تحفيز كهربائية فعالة لتعزيز تفاعل أكسدة الميثانول. المنتج المصنوع يقدم PdPtNiCuZn نشاطًا كتليًا استثنائيًا من و ، جنبًا إلى جنب مع متانة طويلة الأمد مثيرة للإعجاب. تعدل ذرات الأكسوفيلية المفردة من الموليبدينوم المزروعة كعوامل محفزة التركيب الإلكتروني لمواقع البلاتين المعزولة في مضيف سبائك عالية الانتروبيا، مما يثبط تكوين مواد الإعلانات من أول أكسيد الكربون ويوجه التفاعل نحو مسار الفورمات. في الوقت نفسه، تعمل عوامل التحفيز من الموليبدينوم والضغط الشدّي بشكل متكامل لتحسين سلوك الامتصاص للوسطاء لتحقيق مسار أكثر ملاءمة من الناحية الطاقية وتقليل حاجز تفاعل أكسدة الميثانول. يعزز هذا العمل تصميم مواقع تحفيزية دقيقة على المستوى الذري من خلال إنشاء نموذج جديد من سبائك عالية الانتروبيا مصممة بذرات مفردة، مما يفتح طريقًا مشجعًا لتصميم المحفزات الكهربائية المقاومة لثاني أكسيد الكربون.
تعتبر خلايا الوقود ذات غشاء البوليمر الكهربائي من أكثر أجهزة تحويل الطاقة الواعدة التي يمكن أن تعوض الطلب العالمي المتزايد على الطاقة المستدامة. بشكل خاص، نظرًا لكونها صديقة للبيئة، وذات كفاءة عالية في تحويل الطاقة، وسهولة نقلها، فإن خلايا الوقود الميثانول المباشر تعتبر أجهزة مرغوبة للغاية لتحويل الطاقة في المركبات الكهربائية والأجهزة الإلكترونية المحمولة. “. ومع ذلك، فإن الجرعات العالية من المحفزات المعتمدة على البلاتين (الأكثر شيوعًا لتفاعل أكسدة الميثانول الأنودي (MOR)) ووجود مواد كيميائية ضعيفة من ثاني أكسيد الكربون ( (الوسيط الشهير الذي تم إلقاء اللوم عليه في تسميم مواقع النشاط في MOR) تقيد تحملهم
التسويق التجاري . نظرًا لتأثير تسمم أول أكسيد الكربون، فإن تحسين كفاءة المحفز من خلال تقليل حاجز الأكسدة الإضافي لـ أو تحويل التفاعل إلى مسار يهيمن عليه عدم وجود ثاني أكسيد الكربون سيكون مرغوبًا فيه .
تشمل الحكمة التقليدية لمعالجة قضايا النشاط والمتانة في المحفزات القائمة على المعادن الثمينة بشكل رئيسي تعديل الهياكل، وخلطها مع معادن انتقالية أخرى (M)، وتشكيل الأشكال، وتحسين الدعامات، وما إلى ذلك. على الرغم من أن بناء سبائك PtM قد تم تنفيذه لضبط الهيكل الإلكتروني للبلاتين بشكل عقلاني لتحسين طاقات الربط، فإن
تعيق قدرة تعديل الإلكترون النطاق التكويني المحدود . علاوة على ذلك، فإن وفرة المترابطات تجمعات في سبائك PtM تجعل من المرجح أن تتشكل مع وجود مواقع البلاتين فقط حول ذرات المعدن الإضافية التي يمكن أن تتحمل تسمم أول أكسيد الكربون، مما يجعل من الصعب تعظيم النشاط التحفيزي والمتانة. .
تعتبر سبائك عالية الانتروبيا (HEAs) مواد واعدة للتخلص من تسمم أول أكسيد الكربون وتحسين أداء تفاعل الأكسدة الكحولية المتعددة (MOR) بسبب قدرتها القوية على عزل ذرات البلاتين ومساحتها التركيبية الواسعة والقابلة للتعديل. ومن خلال إعادة توزيع الشحنات الناتجة عن السبائك وتمكين مواقع نشطة متعددة، تم تصميم العديد من سبائك HEAs لتعديل طاقات الربط بشكل مناسب للأنواع الوسيطة الحرجة في تفاعل الأكسدة الكحولية المتعددة الإلكترونات. . على الرغم من الجهود المهمة الأخيرة في تخليق إن التصميم الدقيق والتحسين للسبائك عالية الانتشار على المستوى الذري من أجل تعزيز النشاط، وتحمل ثاني أكسيد الكربون، والاستقرار لتفاعل الأكسدة الجزئية للكحول لا يزال يمثل تحديًا كبيرًا.
في هذه الدراسة، تم استخدام معدن الموليبدينوم المحب للأكسجين في شكل مواقع موزعة ذريًا لتخصيص رقائق HEA (NSs) من أجل تعزيز تفاعل الكهروكيمياء للأكسدة الكحولية (MOR) بشكل كبير من حيث النشاط، وتحمل أول أكسيد الكربون، والمتانة. تم تحسين التعريف الجيد لـ نانوهيكليات سبائك عالية الفوضى ذات ذرة واحدة (SAHEA) قدمت نشاطًا كتلويًا فائق الارتفاع و ، على التوالي لـ MOR، 18.13 و 8.58 مرة أعلى من تلك الخاصة بمحفزات Pt/C، مع متانة مثيرة للإعجاب. تكشف الحسابات النظرية والنتائج الطيفية أن الأداء المتفوق لـ SAHEA NSs يعود إلى ذرات الموليبدينوم المعزولة والضغط الشد الداخلي لبناء بيئة إلكترونية مناسبة لمواقع البلاتين المخففة، مما يسهل الأكسدة العميقة للأنواع التفاعلية الرئيسية. هذا يغير الوسطاء من لتشكيل يتجاوز تسمم أول أكسيد الكربون ويعجل بعملية MOR من الناحيتين الحركية والديناميكية الحرارية.

النتائج

تركيب المواد وخصائصها

تم تحقيق تثبيت ذرات الموليبدينوم المعزولة على نانوشرائح HEA المتوترة بواسطة طريقة تخليق سائلة بسيطة من خطوة واحدة (التفاصيل في قسم التجارب). لفهم آلية النمو، تم دراسة الوسائط التي تم جمعها في مراحل نمو مختلفة باستخدام -PdPtNiCuZn SAHEA NSs كمنصة (الأشكال التكميلية 1-4). بشكل عام، يمكن تقسيم نمو SAHEA NSs إلى ثلاث خطوات رئيسية، تتضمن التكوين الأولي لأغشية نانوية غنية بالبلاتين بسمك ذري، وتقليل متحكم فيه وانتشار للذرات القابلة للاختزال الأخرى (مثل، ، و Zn )، والتكوين اللاحق لمواقع Mo الموزعة ذريًا على سطح NSs. توضح الشكل 1a بشكل تخطيطي إجراء التخليق وتطور الشكل لـ SAHEA NSs. على وجه الخصوص، الجرعات المناسبة من وعامل الاختزال (حمض L-أسكوربيك) هما عنصران حاسمان لتشكيل نانوهيكل HEA المصمم من ذرات موحدة. تظهر أنماط XRD للوسطيات المختلفة ثلاثة قمم حيادية نموذجية مكعبة متمركزة في الوجه (fcc)، والتي تنتقل تدريجياً إلى زوايا أعلى مع تقدم التفاعل، مما يكشف عن أن المزيد من الذرات تم سبكها مع نانوهيكل Pd خلال مراحل ما بعد التفاعل.
تظهر صور المجهر الإلكتروني الناقل التمثيلي (TEM) وصور المجهر الإلكتروني الماسح بتقنية الحقل المظلم ذو الزاوية العالية (HAADF-STEM) بتكبير منخفض أن تسيطر طبقات النانو الرقيقة الشبيهة بالجرافين ثنائية الأبعاد (2D) تمامًا على SAHEA NSs (الشكل التكميلي 5 والشكل 1b). يظهر نمط حيود الأشعة السينية (XRD) نمطًا نموذجيًا هيكل Pd (PDF# 46-1043) دون فصل واضح للطور، مما يشير إلى النجاح في إنشاء HEAs (الشكل 1c). في الوقت نفسه، يكشف ضعف وتوسع قمم الحيود عن وجود تشوه في الشبكة. نسبة الذرات لـ SAHEA NSs. في تم تحديد CuZn SAHEA NSs بقيم 24.1/14.6/26.3/22.1/11.1/1.8 بواسطة مطيافية الكتلة مع التحليل الطيفي بالتحفيز الكهربائي (ICP-MS) في البئر.
الاتفاق مع نتائج مطيافية الأشعة السينية المشتتة بالطاقة STEM (STEM-EDS) ومطيافية الانبعاث الضوئي للبلازما المقترنة بالحث (ICP-OES) (الشكل 1d والجدول التكميلي 1). تم تحديد السماكة المتوسطة بواسطة المجهر القوة الذرية (AFM) لتكون حوالي 1.69 نانومتر، مما يؤكد طبيعتها الرقيقة للغاية (الشكل 1e، f). علاوة على ذلك، يمكن الكشف عن الخصائص متعددة البلورات والعيوب المقعرة على مقياس ذري بكثرة من خلال صورة TEM عالية الدقة (HRTEM) المأخوذة من فردي. -PdPtNiCuZn SAHEA NS، التي تنشأ بشكل رئيسي من النقش الأكسيدي بواسطة كميات ضئيلة من تم تقديمه خلال إضافة سوائل النحاس (الشكل 1g). يمكن تأكيد ذلك من خلال حقيقة أن فقط المثقوب تم الحصول على SAHEA NSs عند إدخال المزيد من في محلول سلفيد النحاس (الشكل التكميلي 6). تكشف صورة HAADF-STEM المصححة للانحرافات بشكل أكبر عن علوية البلورات العالية لـ SAHEA NSs مع الحواف الشبكية الواضحة لوجوه (111)، والتي يمكن التحقق منها أيضًا من خلال أنماط تحويل فورييه السريع (FFT) المقابلة (الشكل. ). علاوة على ذلك، تظهر أنماط تحويل فورييه العكسي وكثافات البكسل المدمجة المقابلة أن متوسط المسافة بين الشبكات يتراوح من 0.233 نانومتر إلى 0.237 نانومتر (الشكل 1i، j والشكل التكميلية 7)، مما يشير إلى تشوهات كبيرة في الشبكة و الشد الداخلي في -PdPtNiCuZn SAHEA NSs، الناتجة عن اختلاف أحجام الذرات لكل مكون، العيوب المقعرة، وسماكة رقيقة للغاية تظهر خريطة EDS العنصرية التوزيع المتجانس لـ وعناصر الزنك، وذرات الموليبدينوم المعزولة في -PdPtNiCuZn SAHEA NSs (الشكل 1k). بالإضافة إلى ذلك، تم إجراء تحليل طيف الإلكترون السيني (XPS) لتأكيد وجود ومو في SAHEA NSs (الشكل التوضيحي التكميلي 8). لاحظ أن Pd، Pt، ، وذرات الزنك تكون بشكل رئيسي في الحالة المعدنية، بينما تكون ذرات الموليبدينوم في الغالب في حالات الأكسدة، مما يعكس حقيقة أن ذرات الموليبدينوم في -PdPtNiCuZn HEA NSs هي ذرات غير منسقة وأكثر محبة للأكسجين من الذرات الأخرى على الوجوه. (الشكل التكميلي 9). نظرًا لسهولة أكسدة الموليبدينوم، نستنتج أن ذرات الموليبدينوم تقع على السطح من ساهيا نس .
تظهر خرائط العناصر بتقنية EDX عالية الدقة أن Pd و Pt، ، وعناصر Zn موزعة بشكل متساوٍ في جميع أنحاء PdPtNiCuZn SAHEA NSs (الشكل 2a). ومع ذلك، يتم توزيع ذرات الموليبدينوم بشكل متقطع ولكن متساوٍ في NSs في شكل ذرة معزولة، مما يوفر الدليل الأولي على ذرات الموليبدينوم المفردة المعزولة على -PdPtNiCuZn SAHEA NSs (الشكل 2b). تم إجراء قياس مسح خطي لطاقة فقدان الإلكترون على المستوى الذري (EELS) لتأكيد وجود ذرات الموليبدينوم كذرات مفردة (الشكل 2c والشكل التكميلي 10). تُظهر الأطياف وجود ذرة موليبدينوم في هذه الأعمدة الذرية، مع التوقيع الحافة التي تحدث عند مستويات الطاقة المتوقعة هذه الميزات غير موجودة في EELS لمواقع ذرية أخرى مجاورة لهذا الموقع الذري، مما يثبت أن أنواع الموليبدينوم في -PdPtNiCuZn SAHEA NSs توجد بشكل رئيسي كذرات مفردة. بيئة التنسيق وحالة التكافؤ لذرات الموليبدينوم في -تم تأكيد SAHEA NSs من نوع PdPtNiCuZn بشكل إضافي من خلال قياسات هيكل الامتصاص الدقيق للأشعة السينية (XAFS). تُظهر طيف هيكل الامتصاص القريب من الحافة (XANES) أن موضع عتبة امتصاص حافة Mo K وشدة الخط الأبيض لـ إن قيم PdPtNiCuZn SAHEA أعلى من تلك الخاصة بورق الموليبدينوم، مما يشير إلى أن ذرات الموليبدينوم المعرضة على السطح في حالات تكافؤ عالية، وهو ما يتماشى مع نتائج XPS (الشكل 2d). ومن الجدير بالذكر أن طيف XANES لـ تشير PdPtNiCuZn SAHEA NSs إلى وجود كتف حول 20010 إلكترون فولت في منطقة ما قبل الحافة، مما يدل على وجود مع تشويه هيكل ثماني الوجوه من أجل توضيح المعلومات الدقيقة حول ظروف التنسيق، -تحويلات فورييه ذات الوزن من منحنيات هيكل الامتصاص الدقيق للأشعة السينية الممتدة (FT-EXAFS) لـ -تم تركيب PdPtNiCuZn SAHEA NSs ورقة Mo عند حافة Mo K في فضاءات R و k (الشكل 2e والشكل التوضيحي 11). يمكن فحص معلمات التركيب المقابلة في الجدول التوضيحي 2. -أطياف FT-EXAFS ذات الوزن تكشف أن تظهر CuZn SAHEA NSs الذروة الرئيسية عند Åنُسب إلى مو-أو

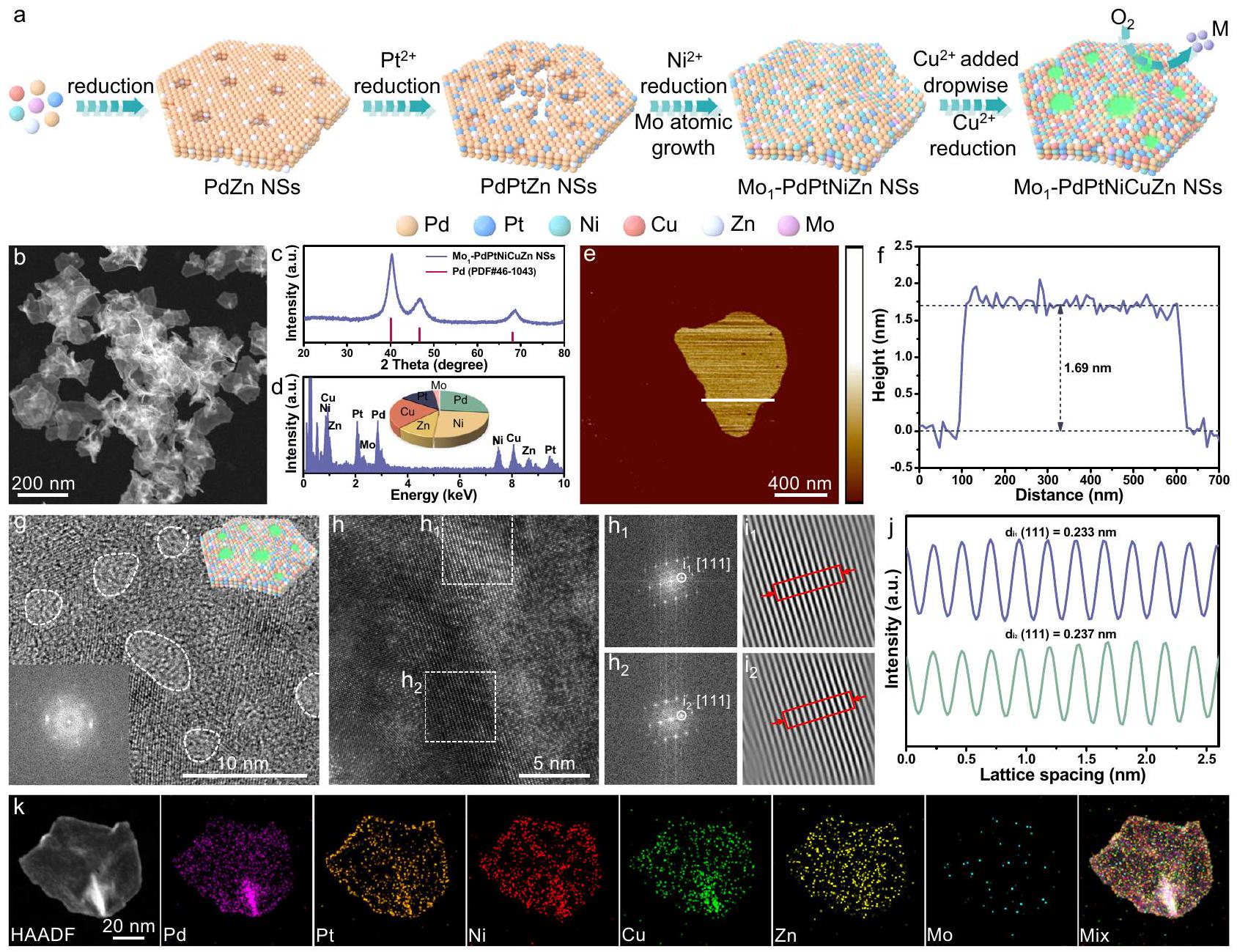

الشكل 1 | التخليق والتوصيفات لـ -PdPtNiCuZn SAHEA NSs.
رسم تخطيطي لآلية تشكيل -PdPtNiCuZn SAHEA NSs. صورة HAADF-STEM، (ج) نمط XRD و (د) طيف STEM-EDS (الإدراج هو نتيجة ICP-OES المقابلة) لـ -PdPtNiCuZn SAHEA NSs. صورة AFM و (f) الملف الارتفاعي المقابل لواحد SAHEA NS. صورة HRTEM (الإدراج هو نمط FFT ونموذج ثلاثي الأبعاد) لواحد ساهيا إن إس.
صورة HAADF-STEM عالية الدقة لترتيب الذرات السطحية على عينة مفردة -PdPtNiCuZn SAHEA NS و أنماط FFT المقابلة من المناطق البيضاء المتقطعة في ( ). أنماط تحويل فورييه العكسي المقابلة لـ و ملفات الكثافة من المناطق الحمراء في و تخطيط العناصر باستخدام HAADF-STEM-EDS لعنصر واحد -PdPtNiCuZn SAHEA NS.
تشتت من في SAHEAs. القمة المميزة لتشتت Mo-Mo ( Åللفويل مو) يكاد يكون غائبًا، مما يؤكد بقوة أن الأنواع مو في -PdPtNiCuZn SAHEA NSs توجد بشكل رئيسي في شكل مواقع موزعة ذريًا دون تنسيق بعيد المدى مع مراكز المعادن الأخرى، مما يعني أن الأنواع Mo تعمل كأنواع معدلة على السطح. علاوة على ذلك، تؤكد تحويلة الموجات (WT) EXAFS مجددًا على أن الموليبدينوم يظهر على المستوى الماكروسكوبي ميزة الذرات المعدنية المعزولة (الشكل 2f، g). مجتمعة، تظهر النتائج أعلاه النجاح في إنشاء محفزات NSs HEA المكونة من ذرات مفردة من موليبدينوم مصممة خصيصًا.
بالنظر إلى أن العناصر القابلة للاختزال الأخرى (مثل، يمكن سبكه مع البلاتين في وجود مختزل في نظام OAm عند تسمح الطريقة الاصطناعية الحالية للحصول على نانوهيكل HEA مع ذرات مو مفردة تحت إجهاد شد بزيادة مساحة التركيب لمضيفات HEA، مثل السداسي. -PdPtCoNiCuZn SAHEA NSs (الشكل 3a والشكل التكميلي 12) وسباعية -PdPtFeCoNiCuZn SAHEA NSs (الشكل 3b والشكل التكميلي 13)، إلخ. من المRemarkably، تُظهر خريطة العناصر بتقنية EDX عالية الدقة التوزيع المتجانس لـ وعناصر الزنك والذرات المعزولة من الموليبدينوم في هذه الأنظمة النانوية SAHEA. تؤكد طيفيات FT-EXAFS ذات الوزن الإضافي ميزة الذرة الواحدة لأنواع الموليبدينوم (الشكل التكميلي 14). في الوقت نفسه، يوجد إجهاد شد داخلي ملحوظ،
تمت ملاحظة تشوه الشبكة والعيوب في جميع أنظمة SAHEA المذكورة أعلاه، والتي نشأت بشكل رئيسي بسبب الخصائص الفائقة النحافة والاختلافات الكبيرة في أحجام الذرات المختلفة. تؤكد هذه النتائج عمومية الطريقة الاصطناعية الحالية لأنظمة SAHEA المصممة على مستوى الذرة الواحدة. بالإضافة إلى ذلك، وجدنا أن الإضافة اللاحقة لـ كان المفتاح لتشكيل SAHEA NSs. الـ يمكن الحصول على تجميعات جزيئات نانوية من PdPtNiCuZn SAHEA من خلال الإدخال المتزامن لـ والمواد الأولية المعدنية الأخرى قبل التفاعل، بينما تظل الظروف الأخرى دون تغيير. تظهر الجسيمات النانوية الناتجة تركيبات وهياكل مصممة من ذرات مفردة من الموليبدينوم مشابهة لأسطح SAHEA (الأشكال التكميلية 15، 16).

اختبارات أداء التحفيز الكهربائي تجاه تفاعل الأكسدة الكحولية الميثيلية

لتأكيد التطبيق المحتمل لهذه المحفزات المخصصة المعدلة بالذرات الفردية من الموليبدينوم في تفاعل أكسدة الميثانول، تم تقييم أداء تفاعل أكسدة الميثانول في نظام ثلاثي الأقطاب نموذجي في الميثانول. قبل اختبارات التحفيز الكهربائي، -PdPtNiCuZn SAHEA NSs، -تم ترسيب جزيئات نانوية من PdPtNiCuZn SAHEA وPdPtNiCuZn HEA على دعم الكربون التجاري من خلال الموجات فوق الصوتية المستمرة، وتم غسلها بالإيثانول لضمان نظافة سطح المحفزات (الشكل التوضيحي 17). تم ملاحظة ذرة الهيدروجين النموذجية.

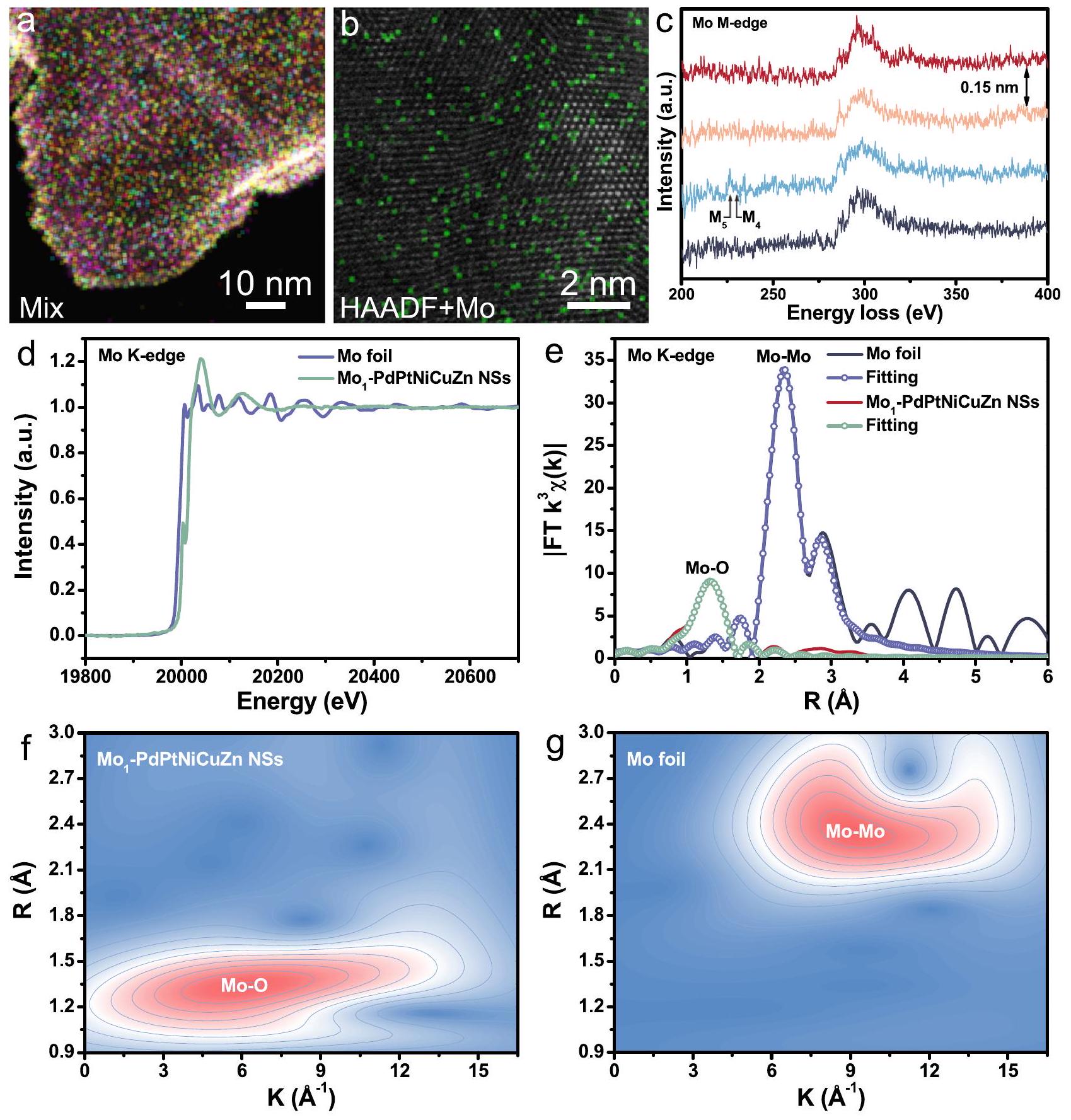

الشكل 2 | التوصيفات التركيبية والكهربائية الهيكلية لـ PdPtNiCuZn SAHEA NSs. أ، ب رسم خرائط العناصر بتقنية EDX عالية الدقة. ج طيف المسح الخطي EELS بعد طرح الخلفية لأربعة أعمدة ذرية متجاورة في تم الحصول على SAHEA NSs على طول الخط في الملحق
الشكل 10 (الـ تُشير الحواف لمو). طيف XANES لحافة Mo K PdPtNiCuZn SAHEA NSs وورق Mo. e The -تحويل فورييه الموزون لطيف EXAFS عند حافة Mo K. تحويل الموجات لـ -إشارات EXAFS عند حافة Mo K الموزونة لـ (f) -PdPtNiCuZn SAHEA NSs و (g) ورقة مو.
تشير عمليات الامتزاز/الامتزاز العكسي والأكسدة/الاختزال لمناطق البلاتين إلى الاستخدام العالي لذرات البلاتين في هذه المحفزات (الشكل 4أ). ومن الجدير بالذكر أن قمم الأكسدة لأنواع الموليبدينوم ( يمكن التعرف عليه بوضوح في منحنيات الفولتمترات الدائرية المعززة (CV) لـ -PdPtNiCuZn SAHEA NSs و Mo -PdPtNiCuZn SAHEA NPs، مما يوضح وجود ذرات Mo (الشكل التكميلي 18). تم تحديد المساحات السطحية النشطة كيميائيًا (ECSAs) لتكون ، و لـ -PdPtNiCuZn SAHEA NSs، -جزيئات نانوية SAHEA PdPtNiCuZn، جزيئات نانوية HEA PdPtNiCuZn، وPt/C، على التوالي بواسطة CV. أكبر ECSA لـ يمكن أن يُعزى SAHEA NSs إلى خصائصه ثنائية الأبعاد فائقة النحافة، مما يكشف عن الاستخدام الفائق للمعادن النبيلة. الميثانول، الكل
تظهر المحفزات قمة أنودية واضحة خلال المسح الأمامي والعكسي، مما يتوافق مع عملية أكسدة الميثانول والوسائط المتوسطة (الشكل 4ب والشكل التكميلي 19). CuZn SAHEA NSs، Mo -PdPtNiCuZn SAHEA NPs و PdPtNiCuZn HEA NPs تظهر جميعها أنشطة MOR أعلى بكثير من المحفزات التجارية Pt/C. عند زراعة ذرات الموليبدينوم المفردة المعزولة في حالات أكسدة عالية كمحفزات في PdPtNiCuZn HEA NPs، تظهر Mol-PdPtNiCuZn SAHEA NPs الناتجة نشاطًا أعلى. علاوة على ذلك، تم بناء تقدم سبائك PdPtNiCuZn SAHEA ذات الإجهاد الشد الذاتي أعلى نشاط محدد لمعدل الانكسار. ، أعلى بوضوح من تلك الخاصة بـ -PdPtNiCuZn SAHEA NPs وأغلب المحفزات الكهروكيميائية المعتمدة على Pd/Pt المبلغ عنها، وأيضًا أعلى بمقدار 7.13 مرة من تلك الخاصة بالمنتجات التجارية

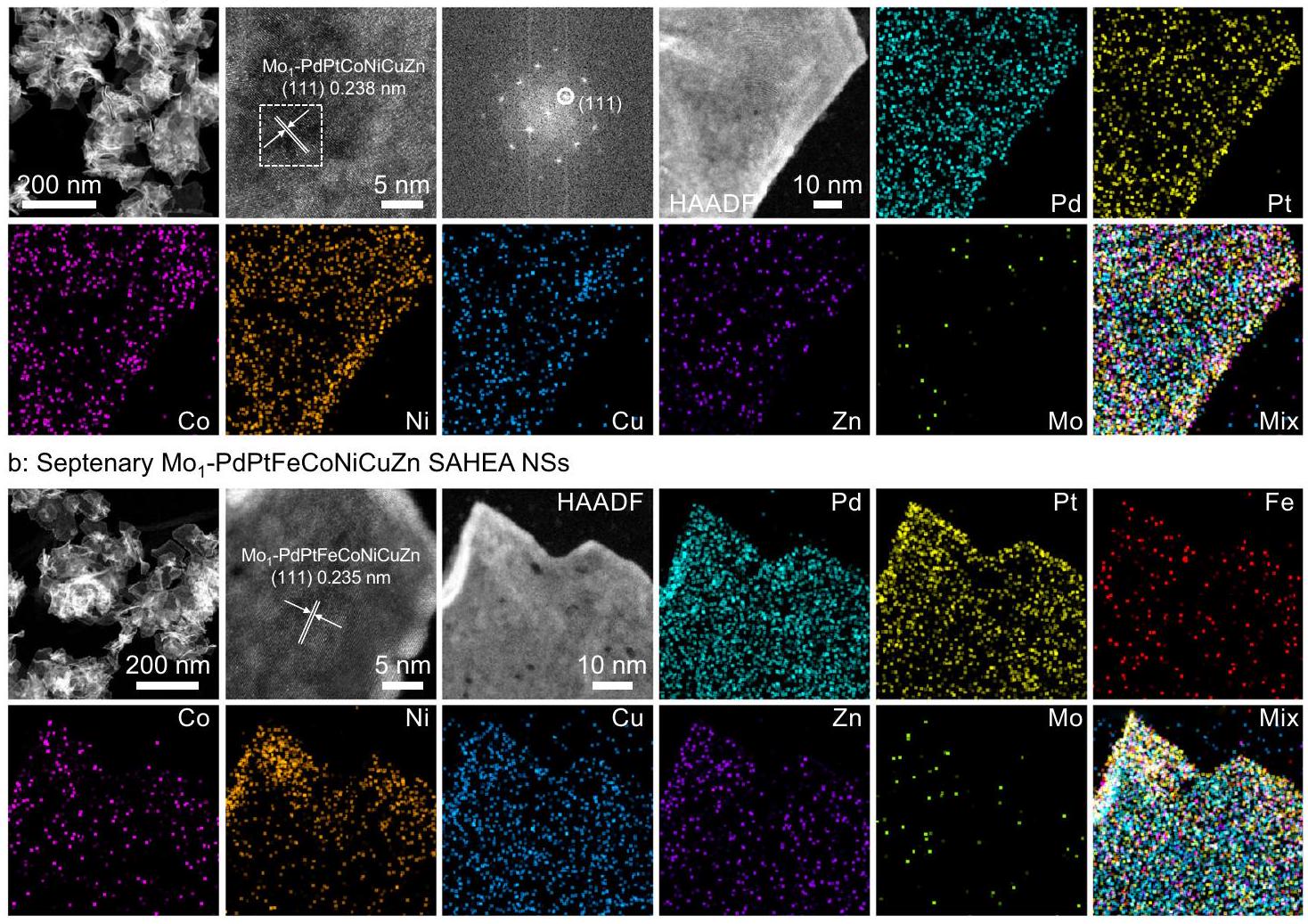

أ: سداسي -PdPtCoNiCuZn SAHEA NSs
الشكل 4 | أداء MOR لمختلف المحفزات في الإلكتروليتات القلوية. أ. منحنيات الجهد-التيار لـ -PdPtNiCuZn SAHEA NSs، -جزيئات نانوية SAHEA PdPtNiCuZn، جزيئات نانوية HEA PdPtNiCuZn، و في -مشبع . منحنيات MOR المعيرة بواسطة ECSA. ج النشاط الكتلي لـ MOR -PdPtNiCuZn SAHEA NSs، -جزيئات نانوية SAHEA PdPtNiCuZn، جزيئات نانوية HEA PdPtNiCuZn، وPt/C في 1.0 M KOH تحتوي على 1.0 M ميثانول.
اختبارات الكرونوأمبرو مترية لتفاعل الأكسدة الكحولية عند 0.77 فولت مقابل RHE -PdPtNiCuZn SAHEA NSs، -PdPtNiCuZn SAHEA NPs، PdPtNiCuZn HEA NPs و Pt/C. e المتانة على المدى الطويل لـ SAHEA NSs، والأسهم تشير إلى متى يتم تجديد الإلكتروليت.
الشكل 5 | آلية التفاعل لـ MOR على الموليبدينوم -PdPtNiCuZn SAHEA NSs. منحنيات الإزالة المشتركة لـ تم تسجيل SAHEA NSs ومحفزات Pt/C في محلول مشبع 1.0 م كوه. طيف FTIR في الموقع لـ MOR على (ب) -PdPtNiCuZn SAHEA
NSs/C و (c) Pt/C عند إمكانيات مختلفة تتراوح من 0.20 إلى 1.30 فولت بفاصل 0.05 فولت في محلول الميثانول. د. مخطط تخطيطي للطرق المحتملة لتفاعل أكسدة الميثانول SAHEA NSs.
(الجدول التكميلي 3). بالإضافة إلى ذلك، فإن الأنشطة الجماهيرية لـ يمكن حساب PdPtNiCuZn SAHEA NSs على أنها و ، 18.13/8.58 مرة أعلى من تلك الخاصة بـ Pt/C التجارية (الشكل 4c). علاوة على ذلك، فإن حركيات نقل الشحنة لـ CuZn SAHEA NSs، Mo تمت دراسة نانو الجسيمات PdPtNiCuZn SAHEA وPdPtNiCuZn HEA وPt/C تجاه MOR باستخدام مطيافية الامتزاز الكهروكيميائية (EIS). من بين المحفزات الأربعة، تمثل SAHEA NSs الحد الأدنى من المقاومة الكهروكيميائية تحت 0.75 فولت مقابل RHE، مما يعكس الحد الأقصى من توصيل الشحنة (الشكل التكميلي 20). تشير النتائج أعلاه إلى أن تعديل مضيف سبيكة PdPtNiCuZn عالية الانتروبيا مع ذرات مو فردية موزعة ذريًا يسمح بتعديل كبير لسلوك الامتصاص للوسائط الرئيسية المعنية في MOR، مما يؤدي إلى مسار تفاعل مثالي وأداء عالٍ. في الوقت نفسه، يمكن أن يساعد الشد التوتري أيضًا في عملية الامتصاص/الإزالة، مما يساهم بشكل متزامن في تحفيز MOR بكفاءة. قمم الأنود الحادة SAHEA NSs و Mo -تؤكد جزيئات SAHEA NPs من PdPtNiCuZn في المسح العكسي أن التأثير الإلكتروني من خلال توزيع الموليبدينوم كذرات مفردة يمكن أن يُستخدم لتعزيز انتقائية التفاعل والديناميكا، وبالتالي الحصول على أداء تحفيزي أعلى.
لتقييم استقرار MOR، تم إجراء قياسات الكرونوأمبيرومترية (CA) لـ -PdPtNiCuZn SAHEA NSs، -تم تنفيذ NPs SAHEA PdPtNiCuZn و NPs HEA PdPtNiCuZn و المحفزات التجارية Pt/C عند 0.77 فولت مقابل RHE لـ . كما هو موضح في الشكل 4d، الـ PdPtNiCuZn SAHEA NSs، Mo -جزيئات نانوية من PdPtNiCuZn SAHEA، وجزيئات نانوية من PdPtNiCuZn HEA جميعها تظهر كثافات تيار أعلى بكثير من تلك الخاصة بـ Pt/C التجارية، مما يدل على متانتها الممتازة على المدى الطويل تجاه MOR. بالإضافة إلى ذلك، اختبارات CA لـ تم تمديد SAHEA NSs لـ MOR إلى 10 ساعات (الشكل التوضيحي 21).
تظل كثافات التيار لـ MOR بعد اختبارات المتانة على المدى الطويل، مما يؤكد المزيد من استقرارها الفائق PdPtNiCuZn SAHEA NSs. من الجدير بالذكر أن النشاط التحفيزي لـ يمكن استعادة CuZn SAHEA NSs عن طريق استبدال الإلكتروليتات الجديدة بعد خمسة دورات متتالية من اختبارات CA، مما يكشف عن قابلية إعادة إنتاج محترمة (الشكل 4e). أشكال SAHEA NSs, يمكن الحفاظ على جزيئات SAHEA NPs وPdPtNiCuZn HEA NPs بشكل جيد بعد اختبارات الاستقرار، بينما يظهر Pt/C التجاري تكتلاً واضحاً (الشكل التكميلي 22). شكل الورقة النانوية الرقيقة ثنائية الأبعاد والتركيبات متعددة المعادن لـ تُحافظ SAHEA NSs، مما يحقق مزيدًا من التحقق من الاستقرار التركيبي والتكويني المثير للإعجاب تحت الجهد المطبق 0.77 فولت (الشكل التوضيحي 23). طيف XPS لـ كانت نتائج SAHEA NSs بعد اختبارات MOR مشابهة جدًا لتلك التي قبل التحفيز الكهربائي MOR، مما يؤكد الاستقرار الممتاز (الأشكال التكميلية 24، 25).

تحقيق في الآلية

للحصول على نظرة ثاقبة حول أصل الأداء العالي لمؤشر MOR في PdPtNiCuZn SAHEA NSs، استخدمنا اختبارات إزالة CO واختبارات الطيفية في الموقع. كما هو موضح في الشكل 5a، فإن ذروة الأكسدة لـ CO الممتص عند حوالي 0.75 فولت مقابل RHE تكون أكثر كبتًا على الـ SAHEA NSs مقارنةً بـ Pt/C التجاري، مما يدل على التحمل الملحوظ لتسمم CO. وذلك بسبب وجود المعادن المتعددة في الـ يمكن أن تعمل SAHEA NSs على تخفيف مواقع Pt-Pt بشكل كبير لتشكيل مواقع Pt المعزولة على السطح، ويؤدي الشد التمددي إلى توسيع المسافة بين Pt-Pt. هذه الخصائص الهيكلية تعزز التحول من MOR إلى مسار مهيمن خالٍ من CO بسبب التكوين من يتطلب وجود ما لا يقل عن ثلاثة ذرات من البلاتين المتجاورة أو مواقع عيوب . بالإضافة إلى ذلك، التعرض و
تعديل ذرات الموليبدينوم الفردية المحبة للأكسجين يمكن أن يضبط بشكل فعال مركز النطاق لمواقعها المجاورة، محققة توازنًا ملائمًا بين التفكك الفعال للمواد المتفاعلة والارتباط المناسب للوسطاء من أجل تحسين انتقائية MOR وتسريع حركية التفاعل. لذلك، -PdPtNiCuZn SAHEA NSs تحقق تعزيزًا مزدوجًا في النشاط التحفيزي والاستقرار من خلال تجنب تكوين في MOR، يعزز الأكسدة العميقة للوسط التفاعلي الرئيسي، ويسرع من حركية الخطوة المحددة للسرعة. علاوة على ذلك، يمكن تأكيد الأداء المحسن للتحفيز الكهربائي لـ MOR الناتج عن التجمعات المخففة من البلاتين من خلال حقيقة أن تظهر محفزات SAHEA NSs أداءً محسنًا بشكل ملحوظ في تفاعل أكسدة الميثانول (MOR) مقارنةً مع NSs ذات الذرات الفردية المصممة من الموليبدينوم ذات السبائك ذات الانتروبيا المنخفضة والمتوسطة (الأشكال التكميلية 26، 27). على وجه التحديد، يمكن أن يؤدي بناء SAHEA NSs المصممة من الموليبدينوم إلى تخفيف تجمعات البلاتين بشكل كبير لتحقيق أقل تشكيل ممكن من وتحسين الهياكل الإلكترونية لتعزيز مسار الفورمات (الشكل التكميلي 28).

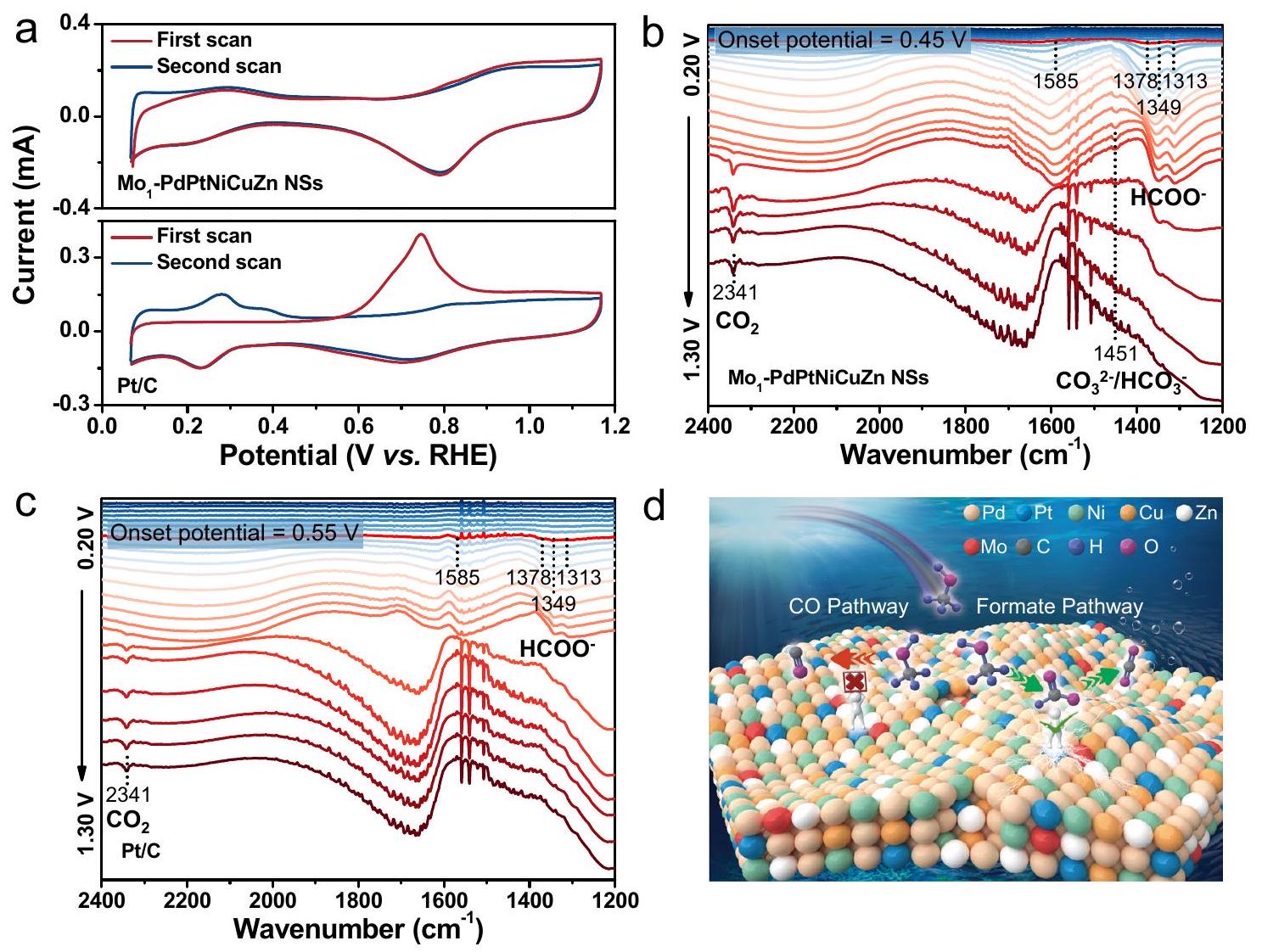

تم إجراء مطيافية الأشعة تحت الحمراء بتقنية تحويل فورييه (FTIR) في الموقع لتتبع الوسط التفاعلي أثناء التحفيز الكهربائي لتفاعل الأكسدة الجزئية. تم ملاحظة عدة نطاقات مميزة بين 2400 و يمكن ملاحظته بوضوح في نافذة الجهد التي تم التحقيق فيها (الشكل 5ب، ج). على وجه التحديد، الحزم عند حوالي 1585، 1378، و يمكن أن يُعزى إلى ، و من الفورمات ، على التوالي. الحزمة السفلية الموجودة عند حوالي ينتمي إلى قمة مميزة أخرى للفورمات لم يتم تأكيد وضعها الاهتزازي المحدد بعد. ومن الجدير بالذكر أنه لا يوجد إشارة على مدى الإمكانيات بالكامل، في حين أن (حوالي ) يظهر عند الجهود العالية، مما يدل على أن ينشأ من الأكسدة الإضافية للفورمات الم adsorbed بشكل ضعيف . علاوة على ذلك، الفرقة عند حوالي ينتمي إلى من تكونت من تفاعل المواد المنبعثة مع . الجهد الابتدائي لإنتاج الفورمات (الأشرطة المميزة عند 1585، 1378، 1349، و ) فوق -PdPtNiCuZn SAHEA NSs هو أقل من ذلك من Pt/C التجاري الفرقة المميزة الأكثر قوة من الفورمات تشير SAHEA NSs إلى أن الميثانول يمكن أن يتم أكسدته بسهولة أكبر لتكوين الفورمات على SAHEA NSs (الشكل التوضيحي التكميلي 29). في هذه الأثناء، المزيد من يتم ملاحظته في PdPtNiCuZn SAHEA NSs، مما يعني أن الميثانول يتم أكسدته بسهولة أكبر إلى الفورمات ومن ثم إلى ، مما يدعم بشكل أكبر الأداء المتميز لمؤشر MOR على SAHEA NSs. من خلال دمج إزالة CO والدراسات في الموقع باستخدام FTIR، يمكن لـ Mol-PdPtNiCuZn SAHEA NSs تجنب تشكيل وتحول MOR إلى المسار المهيمن على الفورمات (الشكل 5d)، بينما تتضمن عملية MOR لـ Pt/C كلاً من مسار CO ومسار الفورمات، مما يؤدي إلى تعطيل المحفز.
تم إجراء حسابات نظرية الكثافة الوظيفية (DFT) للتحقق بشكل أكبر من الآلية وراء تحسين أداء MOR. SAHEA NSs. بالنظر إلى دمج ذرات الموليبدينوم الفردية وإدخال الشد، فإن الشد PdPtNiCuZn تم بناء أسطح PdPtNiCuZn كنماذج حسابية (الشكل التكميلي 30). تكشف محاكاة شحنة بادر أن حالة شحنة ذرات البلاتين تصبح أكثر سلبية مع كثافة إلكترونية عالية، مما يشير إلى أن الإلكترونات أكثر تركيزًا حول ذرات البلاتين. ومع ذلك، فإن ذرات الموليبدينوم تعاني من نقص في الإلكترونات، مما يعني أن نقل الإلكترونات يكون فعالًا، بما يتماشى مع تحليل XPS (الشكل 6a والشكل التكميلي 31). توضح النتائج أن إدخال ذرة موليبدينوم واحدة يمكن أن يحسن بشكل فعال الكثافة الإلكترونية حول مواقع البلاتين. لفهم الهياكل الإلكترونية بشكل أفضل تم توضيح الكثافة الجزئية لحالات كل عنصر في HEA لـ SAHEA و PdPtNiCuZn HEA. كما هو موضح في الشكل 6b و 6c، تعمل عناصر النيكل والموليبدينوم كمراكز استنزاف الإلكترونات خلال عملية MOR، مما يعزز نقل الإلكترونات لأسطح HEA. في الوقت نفسه، فإن الكفاءة الارتباط المداري بين ، والزنك لا يقلل فقط من حاجز الطاقة لنقل الإلكترون أثناء الأكسدة ولكن أيضًا
يمكن أن يثبت حالة التكافؤ لمواقع البلاتين، مما يسهل استقرار الوسائط لـ . يمكن أن يوفر هذا التركيب العنصري التكوين السطحي الأمثل، والبيئة الإلكترونية الدقيقة المناسبة، ومواقع الامتزاز/الامتزاز المثالية لـ MOR، مما يمكّن من الامتزاز الصحيح للوسائط الرئيسية لتعزيز MOR الذي يهيمن عليه الفورمات. بالمقارنة مع PdPtNiCuZn، فإن إدخال ذرات مو فردية بالقرب من مواقع البلاتين يعزز النشاط الكهربائي بشكل أكبر. علاوة على ذلك، فإن الإجمالي تم حساب مخططات كثافة الحالات (TDOS) لنماذج مختلفة لتصور -مراكز النطاق، التي يمكن ربط مواقعها مباشرة بالنشاط المعزز لمور (الشكل 6d). المقارنة مع الهيكل الإلكتروني لـ PdPtNiCuZn تكشف أن الإجمالي -مركز الشريط المتوتر قد ارتفع بشكل ملحوظ بعد إدخال ذرات الموليبدينوم الفردية والضغط الشدّي، مما يشير بشكل أكبر إلى تحسين كفاءة نقل الإلكترونات للمواد المحفزة الكهربائية. بسبب انخفاض شغل المدارات المضادة للرابطة، فإن الارتفاع في يمكن أن تساهم منطقة النطاق في الامتزاز القوي للوسائط. . لذلك، متوتر مع النقل للأعلى يظهر مركز النطاق – أن طاقة الربط الأقوى مع الوسائط التفاعلية الرئيسية و *OH، مما يزيد من فرصة أكسدة هذه الوسائط بشكل أكبر إلى .
علاوة على ذلك، فإن عروض و يتم مقارنة CuZn من منظور الطاقة. كما هو موضح في الشكل 6e، فإن الامتصاص الأكثر قوة لـ و على PdPtNiCuZn المعدل بـ Mo على مستوى الذرة الواحدة يؤدي إلى تعزيز النشاط الكهربائي تجاه MOR. كما هو متوقع، تظهر امتصاصًا غير مفضل لثاني أكسيد الكربون. نستنتج أن جزيئات ثاني أكسيد الكربون بالكاد تمتص على -PdPtNiCuZn SAHEA NSs في الإلكتروليتات القلوية. قد لا يكون وسيطًا مفضلًا، وهو ما يمكن إثباته بشكل أكبر من خلال التفضيل الأضعف لـ لمسار CO (الشكل 6f). اقترحت هذه الحسابات أن تشكيل HEA قد خفف بشكل كبير من مواقع Pt-Pt المستمرة، وأن زراعة ذرات Mo الفردية كمحفزات قد عدلت بشكل فعال الهيكل الإلكتروني لمضيفي HEA، مما يمنع بشكل حركي وثيرموديناميكي تشكيل ، وبالتالي التحايل على تأثير تسمم أول أكسيد الكربون وتبديل التفاعل بشكل متزامن إلى المسار الذي يهيمن عليه الفورمات. من أجل المسار، تحدث الخطوة المحددة لمعدل التفاعل (RDS) في إلى عند جهد قدره يعرض مسارًا أكثر ملاءمة من الناحية الطاقية وجهدًا زائدًا أقل من PdPtNiCuZn (الشكل 6g). عند الحد الأدنى من الجهد المطبق الذي يمكّن من الوصول إلى حالة توازن تفاعل مثالية عند RDS لـ مسار بدون طاقة خارجية إضافية على -سطح PdPtNiCuZn (111) يظهر انحدارًا صاعدًا عند RDS، مما يشير إلى أن خطوة التفاعل هي تفاعل ماص للحرارة عند هذا الجهد وتحتاج إلى طاقة إضافية. بالمقابل، يتم الوصول إلى حالة التوازن التفاعلي المثالية عند RDS دون الحاجة إلى طاقة خارجية إضافية. تظهر المزيد من طاقات التفاعل السلبية بعمق و الأكسدة على يصبح أكثر جدوى (الشكل 6h). بالإضافة إلى ذلك، تم دراسة تأثير قوة الشد على ميل التفاعل عند RDS أيضًا (الشكل 6i). من RDS على الضغط يظهر قيمة أكثر سلبية بسبب دمج تعديل ذرات الموليبدينوم الفردية والضغط الشدّي الداخلي، مما يكشف عن تسريع في الديناميات الحرارية والكيميائية يتماشى مع الملاحظات التجريبية.

نقاش

باختصار، نبلغ عن طريقة عامة لتخليق فئة من نانوشرائح HEA فائقة الرقة المصممة بموحدات ذرات مفردة مع إجهاد شد داخلي (بما في ذلك، ولكن لا تقتصر على، الخماسية ، سيناري PdPtCoNiCuZn، وسباعي -PdPtFeCoNiCuZn SAHEA NSs) كعوامل تحفيز كهربائية عالية الأداء تجاه MOR في ظروف قلوية. التمثيل تظهر SAHEA NSs نشاطًا جماهيريًا استثنائيًا لـ و في ذروة الإمكانيات، على التوالي، 18.13 و 8.58 مرة أعلى من المحفزات التجارية Pt/C، بالإضافة إلى إظهار متانة مثيرة للإعجاب. في الموقع

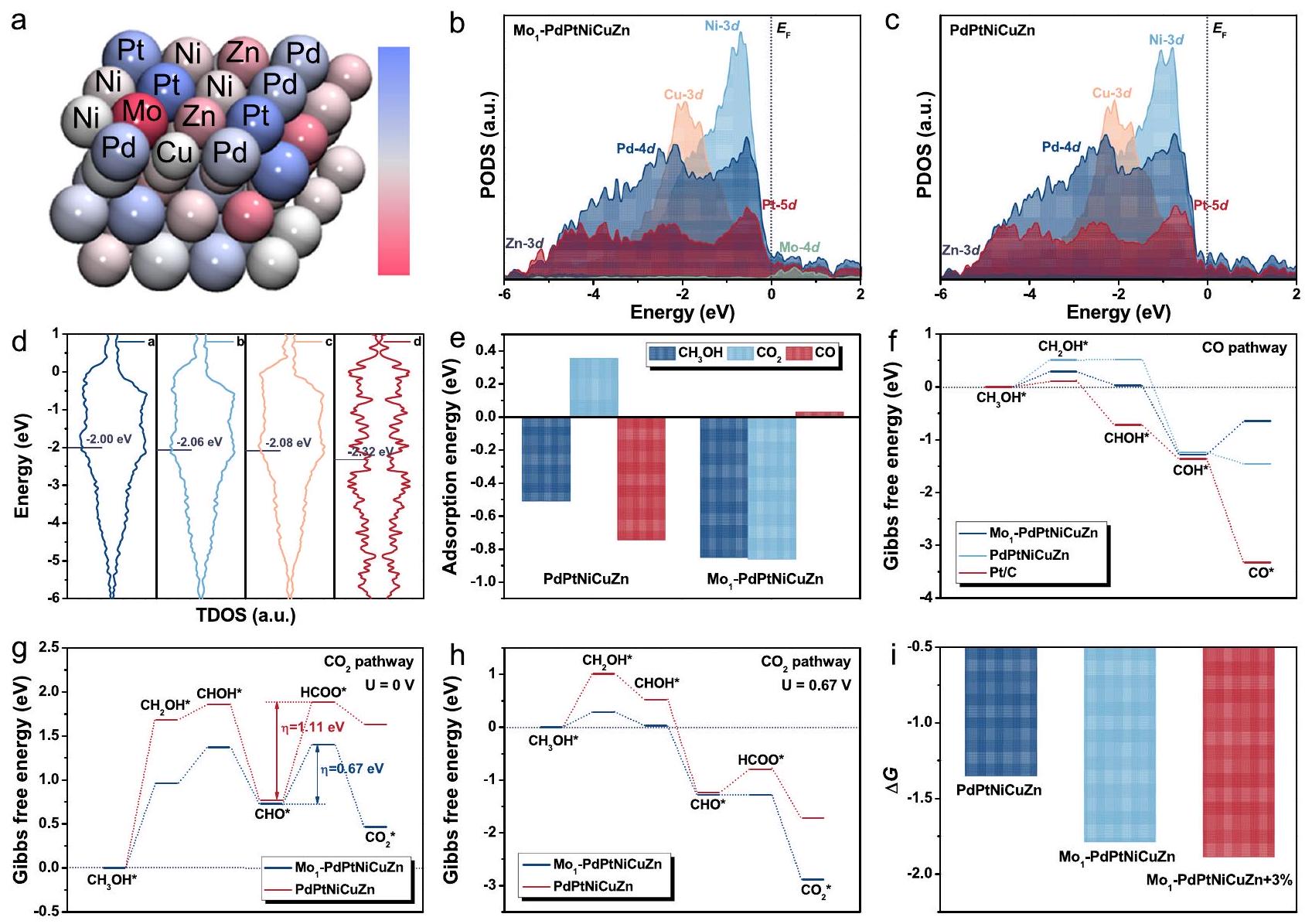

الشكل 6 | حسابات DFT لتكوين الهيكل ومسارات التفاعل الطاقية. أ محاكاة شحنة بادر لـ . كثافة حالات الطاقة (PDOS) لـ (ب) و PdPtNiCuZn. د الـ TDOS لـ -فرقة في (أ) متوترة PdPtNiCuZn، (ب) -PdPtNiCuZn، (c) PdPtNiCuZn، و (d) نماذج Pt/C. e الـ
مقارنة طاقة الامتزاز ، وCO على و PdPtNiCuZn. مقارنة طاقة التفاعل لمسار (f) CO و مسار لتحفيز الكهربية لـ MOR على ، و . أنا من RDS على المجهود ، وPdPtNiCuZn.
تحليل FTIR وحسابات DFT تكشف أن زراعة ذرات مو أحادية محبة للأكسجين يمكن أن توفر بيئة إلكترونية مناسبة لمواقع البلاتين المخففة المجاورة، مما يحول بشكل انتقائي تفاعل أكسدة الميثانول إلى المسار المهيمن على الفورمات، ويجمع مع الشد التوتري لتحسين سلوك امتصاص الوسائط، مما يساهم بشكل منطقي في النشاط الممتاز والاستقرار على المدى الطويل. تُظهر هذه الدراسة استراتيجية فعالة وعملية لتصميم محفزات HEA المعدلة بذرات مفردة مشدودة هندسياً لتسهيل استكشاف محفزات متقدمة ذات أداء تحفيزي متفوق لمجموعة واسعة من التطبيقات.

طرق

المواد الكيميائية

أسيتيل أسيتونات البالاديوم (II) أسيتيل أسيتونات الحديد (III) ) ، أسيتيل أسيتونات النيكل (II) ( ، 95%) ، أسيتيل أسيتونات الزنك (II) ( أسيتيل أسيتونات الكوبالت (III) أسيتيل أسيتونات النحاس (II) ، ) ، هكساكربونيل الموليبدينوم ( هيدروكسيد البوتاسيوم ( ) وأوليل أمين ( ) تم شراؤها جميعًا من علاء الدين. تم توفير أسيتيل أسيتونات البلاتين (II) (Pt(acac)، 97%) من إينوكيم. تم الحصول على حمض L-أسكوربيك (AA، 98%) ونافيو (5 wt.%) من أداماس. إيزوبروبانول ( . )، التولوين ( ميثانول . )، الإيثانول ( . ) و سيكلوهكسان ( تم توفيرها من قبل شركة سينوفارم للمواد الكيميائية المحدودة (شنغهاي، الصين). محفز البلاتين المدعوم بالفحم التجاري (Pt/C، من جزيئات النانو بقطر 3 نانومتر -Pt على الكربون الأسود) تم توفيرها من قبل شركة جونسون-ماثي. تم استخدام جميع المواد الكيميائية دون
تنقية إضافية، وتم تحضير جميع المحاليل حديثًا باستخدام مياه فائقة النقاء ( ).

تحضير نانوشرائح SAHEA فائقة الرقة

في تحضير نموذجي للخمسة SAHEA NSs, و تمت إضافة إلى قنينة بأربعة رقبات تحتوي على 12 مل من OAm. ثم تم تسخين هذا المزيج إلى في الفراغ وتم الاحتفاظ به لمدة 15 دقيقة تحت التحريك المغناطيسي لإزالة الهواء والماء. بعد ذلك، تم تطهير الكأس بالنيتروجين ( ) وتم تبريده إلى درجة حرارة الغرفة. بعد و AA تم إضافة إلى الخليط، وتم تفريغ القارورة مرة أخرى لمدة 10 دقائق. ثم، تم ملء القارورة بـ وتم تسخينه إلى تحت التحريك المغناطيسي. تم إذابته في 0.5 مل من OAm و 0.5 مل من التولوين، ثم أضيف قطرة قطرة إلى المزيج أعلاه تحت التحريك المغناطيسي. بعد الحقن، تم تسخين المحلول المختلط عند لمدة ساعتين. أخيرًا، تم تبريد خليط التفاعل بسرعة إلى درجة حرارة الغرفة وجمعه عن طريق الطرد المركزي. وأخيرًا، تم غسل المنتجات مرتين أو ثلاث مرات بمزيج من السيكلوهكسان والإيثانول.
تحضير ثنائي كانت خصائص نانو الجسيمات من سبائك ذات انتروبيا منخفضة من ذرة واحدة (SALEA) مشابهة لتلك الخاصة بالسبائك الخماسية -PdPtNiCuZn SAHEA NSs باستثناء غياب ، و في المتفاعلات. تحضير ثلاثي كانت خصائص جسيمات السبائك ذات الانتروبيا المتوسطة ذات الذرة الواحدة (SAMEA) مشابهة لتلك الخاصة بالسبائك الخماسية. PdPtNiCuZn SAHEA NSs باستثناء غياب و في المتفاعلات. تحضير السداسي كان CuZn SAHEA NSs مشابهًا لذلك الخاص بالخمسة.
SAHEA NSs باستثناء إضافة إلى المتفاعلات. تحضير السبعيات -PdPtFeCoNiCuZn SAHEA NSs كان مشابهًا لذلك الخاص بالخماسي SAHEA NSs باستثناء الإضافة و إلى المتفاعلات.

تحضير -PdPtNiCuZn نانو جزيئات SAHEA

التركيب لـ كانت NP-SAHEA مشابهة لتلك الخاصة بـ -PdPtNiCuZn SAHEA NSs باستثناء أن سلفيد النحاس تم إضافته إلى محلول التفاعل في البداية.

تحضير نانو جزيئات HEA من PdPtNiCuZn

كانت عملية تخليق جسيمات نانوية من PdPtNiCuZn HEA مشابهة لتلك الخاصة بـ جزيئات نانوية PdPtNiCuZn SAHEA باستثناء غياب في المتفاعلات.

توصيفات

تم جمع خصائص المجهر الإلكتروني الناقل (TEM) بواسطة JEM-1400 الذي يعمل عند 100 كيلوفولت (JEOL Ltd). تم تحديد المجهر الإلكتروني الناقل عالي الدقة (HRTEM) والمجهر الإلكتروني الناقل بتقنية الحقل المظلم الزاوي العالي (HAADF-STEM) وطيف الأشعة السينية المشتتة للطاقة (HAADF-STEM-EDS) بواسطة FEI Tecnai-G2 F30 عند جهد تسريع قدره 300 كيلوفولت. تم إجراء طيف حيود الأشعة السينية (XRD) على جهاز PANanalytical X’Pert Powder مع Åتم تحليل التركيبات باستخدام مطيافية الانبعاث الضوئي بالبلازما المقترنة بالحث (ICP-OES، Optima 8300) ومطيافية الكتلة بالبلازما المقترنة بالحث (ICP-MS، Agilent 7800). تم تسجيل أطياف مطيافية الإلكترونات السينية (XPS) على جهاز Thermo Scientific (ESCALAB 250 XI). تم إجراء صورة AFM للعينة في وضع اللمس باستخدام جهاز Multimode Nanoscope IIIa SPA (Veeco Instruments، Bruker) تحت ظروف بيئية. تم إجراء تجارب XAS عند حافة Mo K على خط الشعاع BL1W1B في منشأة الإشعاع المتزامن في بكين (BSRF). تم معالجة وتحليل بيانات XAS باستخدام حزمة البرمجيات Demeter. تم طرح دالة خطية من منطقة ما قبل الحافة، ثم تم تطبيع قفزة الحافة باستخدام برنامج Athena. .

قياسات التحفيز الكهربائي

قبل القياسات الكهروكيميائية، تم تحضير PdPtNiCuZn SAHEA NSs، Mo تم ترسيب جزيئات PdPtNiCuZn SAHEA وجزيئات PdPtNiCuZn HEA على دعائم الكربون التجارية (Ketjen Black-300) عن طريق الموجات فوق الصوتية لمدة 3 ساعات. تم جمع المنتجات النهائية عبر الطرد المركزي وغسلها بالإيثانول ثلاث مرات للحصول على المحفزات المدعومة بالكربون المختبرة. بعد ذلك، تم تفريق 1.0 ملغ من المحفزات الجافة في مذيب مختلط يحتوي على 0.4 مل من الإيزوبروبانول و0.6 مل من الماء النقي. نافيوين بالموجات فوق الصوتية لمدة 30 دقيقة للحصول على أحبار محفز متجانسة. للاختبارات الكهروكيميائية، تم إسقاط كمية من الحبر على قطب زجاجي كربوني نظيف (GCE، القطر: 4 مم) لتحضير القطب العامل، وقطب الكالوميل المشبع (SCE) ورقة بلاتين ( ) تم استخدامها كأقطاب مرجعية وأقطاب مضادة، على التوالي. تم إجراء جميع القياسات الكهروكيميائية على جهاز العمل الكهروكيميائي CHI 660 E (تشينهوا، شنغهاي) بتكوين ثلاثي الأقطاب النموذجي، وتم تحويل جميع الجهود المسجلة إلى القطب الهيدروجيني القابل للعكس (RHE). تم جمع الفولتاموجرامات الدورية (CVs) في -مشبع معدل المسح بـ تم تقدير المساحات السطحية النشطة كهربائياً (ECSAs) وفقًا للهيدروجين المودع تحت الجهد. طرق. من شحنة ذروة إزالة الهيدروجين Hupd في السجلات المسجلة، تم تحديد المساحات السطحية الفعالة (ECSAs) للمحفزات من طبقة واحدة من إزالة الهيدروجين على البلاتين بمعيار 0.21. .
تم الحصول على منحنيات الاستقطاب لتفاعل أكسدة الميثانول (MOR) عند معدل المسح في مشبع محلول الميثانول. قبل اختبارات MOR، تم تنشيط المحفزات بواسطة
إجراء السير الذاتية لتكون مستقرة في -مشبع 1 م كوه عند معدل مسح تم إجراء قياسات الكرونوأمبيرومترية (CA) لـ MOR في محلول الميثانول عند 0.77 فولت مقابل RHE. بالنسبة لقياس إزالة CO، تم تثبيت القطب العامل عند جهد ثابت قدره -0.88 فولت مقابل SCE تحت تدفق من CO يتم نفخه في -مشبع 1.0 م كOH الكهارل لمدة 15 دقيقة. بعد ذلك، تم نقل القطب العامل بسرعة إلى محلول إلكتروليتي مشبع بتركيز 1.0 مولار من هيدروكسيد البوتاسيوم وسجلت الدورتين بمعدل مسح .

طيفية الانعكاس FTIR الكهروكيميائية في الموقع

تم إجراء FTIR في الموقع لتتبع إشارات الوسائط باستخدام جهاز طيفي Nicolet iS50 مزود بكاشف من الزئبق والكادميوم والتيلوريوم (MCT) المبرد بالنيتروجين السائل. تم توفير خلية ECIR-II مزودة بجهاز Pike Veemax III ATR في نظام ثلاثي الأقطاب من شركة Shanghai Linglu Instrument & Equipment Co. تم إسقاط حبر المحفز على قطب الكربون الزجاجي المزود بتكوين خلية IR رقيقة ثلاثية الأقطاب مصنوعة خصيصًا، باستخدام كما هو الحال مع النافذة. تم جمع طيف FTIR في الموقع من 0.2 فولت إلى 1.3 فولت (مقابل RHE) كل 50 مللي فولت في -مشبع ميثانول.

إعداد الحساب

تم تنفيذ حسابات المبادئ الأولى في حزمة المحاكاة الأولية فيينا (VASP) باستخدام إمكانيات الموجة المعززة بالمشاريع (PAW) ضمن إطار نظرية الكثافة الوظيفية (DFT). تم وصف طاقة تبادل-ترابط الإلكترون بواسطة دالة بيردو-بورك-إرنزرهوف (PBE) ضمن التقريب العام للتدرج (GGA). تم إنشاء الهيكل شبه العشوائي الخاص (SQS) للسبائك عالية الانتروبيا باستخدام أداة مونت كارلو SQS (MCSQS) ضمن مجموعة أدوات أتمتة نظرية السبائك (ATAT). . أن تم بناء خلية تتكون من 32 ذرة لإجراء الحسابات. تم تعيين طاقة القطع لقاعدة الموجات المستوية إلى 500 إلكترون فولت. تم أخذ عينات من تكامل منطقة بريلوان باستخدام طريقة مونكهورست-باك. شبكة نقاط k. تم اعتبار استقطاب الدوران في جميع الحسابات. تم السماح للطبقتين العلويتين من الذرات في النموذج بالتكيف حتى كانت القوى المتبقية لكل ذرة أقل من Å، وكانت أقصى فرق في الطاقة أقل من .

توفر البيانات

تُعرض بيانات التجربة التي تدعم نتائج هذه الدراسة في هذه المقالة والمعلومات التكميلية، وهي متاحة من المؤلفين المراسلين عند الطلب. تُقدم بيانات المصدر التي تستند إليها الأشكال 1-6 كملف بيانات مصدر. تُقدم بيانات المصدر مع هذه الورقة.

References

  1. Seh, Z. W. et al. Combining theory and experiment in electrocatalysis: insights into materials design. Science 355, eaad4998 (2017).
  2. Zhou, Y. et al. Lattice-confined Ru clusters with high CO tolerance and activity for the hydrogen oxidation reaction. Nat. Catal. 3, 454-462 (2020).
  3. Zhuang, Z. et al. Atomically dispersed nonmagnetic electron traps improve oxygen reduction activity of perovskite oxides. Energy Environ. Sci. 14, 1016-1028 (2021).
  4. Aricò, A. S., Srinivasan, S. & Antonucci, V. DMFCs: from fundamental aspects to technology development. Fuel Cells 1, 133-161 (2001).
  5. Sharma, S. & Pollet, B. G. Support materials for PEMFC and DMFC electrocatalysts-a review. J. Power Sources 208, 96-119 (2012).
  6. Feng, Y., Liu, H. & Yang, J. A selective electrocatalyst-based direct methanol fuel cell operated at high concentrations of methanol. Sci. Adv. 3, e1700580 (2017).
  7. Liu, L. & Corma, A. Metal catalysts for heterogeneous catalysis: from single atoms to nanoclusters and nanoparticles. Chem. Rev. 118, 4981-5079 (2018).
  8. Jiang, J. et al. Freestanding single-atom-layer Pd-based catalysts: oriented splitting of energy bands for unique stability and activity. Chem 6, 431-447 (2020).
  9. Wang, J. et al. Toward electrocatalytic methanol oxidation reaction: longstanding debates and emerging catalysts. Adv. Mater. 35, 2211099 (2023).
  10. Mistry, H. et al. Nanostructured electrocatalysts with tunable activity and selectivity. Nat. Rev. Mater. 1, 16009 (2016).
  11. Han, S. et al. The synergy of tensile strain and ligand effect in PtBi nanorings for boosting electrocatalytic alcohol oxidation. Adv. Funct. Mater. 32, 2208760 (2022).
  12. Yin, P., Yan, Q. & Liang, H. Strong metal-support interactions through sulfur-anchoring of metal catalysts on carbon supports. Angew. Chem. Int. Ed. 62, e202302819 (2023).
  13. Li, C. et al. Synthesis of core@shell Cu-Ni@Pt-Cu nano-octahedra and their improved MOR activity. Angew. Chem. Int. Ed. 133, 7753-7758 (2021).
  14. Hao, J. et al. Unraveling the electronegativity-dominated intermediate adsorption on high-entropy alloy electrocatalysts. Nat. Commun. 13, 2662 (2022).
  15. Tao, F. et al. Reaction-driven restructuring of Rh-Pd and Pt-Pd coreshell nanoparticles. Science 322, 932-934 (2008).
  16. Sun, Y. et al. A general approach to high-entropy metallic nanowire electrocatalysts. Matter 6, 193-205 (2023).
  17. Zhu, J. et al. Ultrahigh stable methanol oxidation enabled by a high hydroxyl concentration on Pt clusters/MXene interfaces. J. Am. Chem. Soc. 144, 15529-15538 (2022).
  18. Jiang, K. et al. Electrocatalysis of formic acid on palladium and platinum surfaces: from fundamental mechanisms to fuel cell applications. Phys. Chem. Chem. Phys. 16, 20360-20376 (2014).
  19. Li, H. et al. Fast site-to-site electron transfer of high-entropy alloy nanocatalyst driving redox electrocatalysis. Nat. Commun. 11, 5437 (2020).
  20. Chen, W. et al. High-entropy intermetallic PtRhBiSnSb nanoplates for highly efficient alcohol oxidation electrocatalysis. Adv. Mater. 34, 2206276 (2022).
  21. Yao, Y. et al. High-entropy nanoparticles: synthesis-structureproperty relationships and data-driven discovery. Science 376, eabn3103 (2022).
  22. Nakaya, Y. et al. High-entropy intermetallics serve ultrastable single-atom Pt for propane dehydrogenation. J. Am. Chem. Soc. 144, 15944-15953 (2022).
  23. Zhan, C. et al. Subnanometer high-entropy alloy nanowires enable remarkable hydrogen oxidation catalysis. Nat. Commun. 12, 1-8 (2021).
  24. Tao, L. et al. A general synthetic method for high-entropy alloy subnanometer ribbons. J. Am. Chem. Soc. 144, 10582-10590 (2022).
  25. Fu, X. et al. High-entropy alloy nanosheets for fine-tuning hydrogen evolution. ACS Catal. 12, 11955-11959 (2022).
  26. Lin, F. et al. Local coordination regulation through tuning atomicscale cavities of Pd metallene toward efficient oxygen reduction electrocatalysis. Adv. Mater. 34, 2202084 (2022).
  27. Luo, M. et al. PdMo bimetallene for oxygen reduction catalysis. Nature 574, 81-85 (2019).
  28. Zhu, P. et al. Regulating the moiety by constructing dual-metal atom sites for efficient electrochemical oxygen reduction. Nano Lett. 22, 9507-9515 (2022).
  29. Wang, H. et al. In operando X-ray absorption fine structure studies of polyoxometalate molecular cluster batteries: polyoxometalates electron sponges. J. Am. Chem. Soc. 134, 4918-4924 (2012).
  30. Yang, Y. et al. O-coordinated W-Mo dual-atom catalyst for universal electrocatalytic hydrogen evolution. Sci. Adv. 6, eaba6586 (2020).
  31. Li, M. et al. Single-atom tailoring of platinum nanocatalysts for highperformance multifunctional electrocatalysis. Nat. Catal. 2, 495-503 (2019).
  32. Ma, M. et al. Single-atom molybdenum engineered platinum nanocatalyst for boosted alkaline hydrogen oxidation. Adv. Energy Mater. 12, 2103336 (2022).
  33. Luo, S. et al. A tensile-strained PtRh single-atom alloy remarkably boosts ethanol oxidation. Adv. Mater. 33, 2008508 (2021).
  34. Wang, X. et al. The role of bismuth in suppressing the CO poisoning in alkaline methanol electrooxidation: switching the reaction from the CO to formate pathway. Nano Lett. 23, 685-693 (2023).
  35. Kong, F. et al. Selectively coupling Ru single atoms to PtNi concavities for high-performance methanol oxidation via d-band center regulation. Angew. Chem. Int. Ed. 61, e202207524 (2022).
  36. Matsuoka, K. et al. Electro-oxidation of methanol and ethylene glycol on platinum in alkaline solution: Poisoning effects and product analysis. Electrochim. Acta 51, 1085-1090 (2005).
  37. Zhu, J. et al. Hierarchical porous Rh nanosheets for methanol oxidation reaction. Appl. Catal. B Environ. 264, 118520 (2020).
  38. Ravel, B. & Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 12, 537-541 (2005).
  39. Kresse, G. & Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15-50 (1996).
  40. Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758 (1999).
  41. Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865-3868 (1996).
  42. Van de Walle, A. et al. Efficient stochastic generation of special quasirandom structures. Calphad 42, 13-18 (2013).

شكر وتقدير

تم دعم هذا العمل من قبل المؤسسة الوطنية للعلوم الطبيعية في الصين بموجب المنح (الأرقام 52071119، 52271170، 52025133 و52261135633)، وصندوق العلوم الطبيعية في هيلونغجيانغ للعلماء الشباب المتميزين (رقم المنحة JQ2O23EOO4)، وصندوق البحث الأساسي للجامعات المركزية (رقم المنحة HIT.OCEF. 2021025)، والمختبر الوطني الرئيسي لموارد المياه الحضرية والبيئة (معهد هاربين للتكنولوجيا) (رقم 2022TS38)، ومشروع التعاون الاستراتيجي للبحث الأساسي بين شركة النفط الوطنية الصينية وجامعة بكين، ومؤسسة العلوم الطبيعية في بكين (رقم Z220020)، وصندوق الابتكار لشركة CNPC (2021DQ02-1002) ومؤسسة العلوم ما بعد الدكتوراه في الصين (رقم 2022M710201). تم إجراء الحسابات العددية في هذه الورقة في مركز الحوسبة المتقدمة في هيفي. يشكر المؤلفون قسم الإشعاع الضوئي BL1W1B في منشأة الإشعاع المتزامن في بكين (BSRF) على المساعدة في التوصيفات. يشكر المؤلفون الدكتور لي دونغمي من المركز التجريبي في كلية البيئة على المساعدة في اختبارات TEM.

مساهمات المؤلفين

S.G. و W.Y. و Y.Y. تصوروا المشروع. L.H. و M.L. صمموا التجارب. L.H. و M.L. و L.Q. و M.Luo قاموا بتحليل البيانات ومناقشات التجارب. L.H. و H.L. شاركوا في تجارب XAFS وتحليل البيانات. L.H. و Y.L. أجروا قياسات HAADF-STEM و HRTEM وتحليل البيانات. L.H. و S.Geng قاموا بإجراء تجارب FTIR في الموقع وتحليل البيانات. L.Q. و F.T. نفذوا محاكاة DFT. L.H. و M.L. و L.Q. كتبوا الورقة. جميع المؤلفين ناقشوا النتائج وعلقوا على المخطوطة.

المصالح المتنافسة

يعلن المؤلفون عدم وجود مصالح متنافسة.

معلومات إضافية

معلومات إضافية النسخة الإلكترونية تحتوي على
المواد التكميلية متاحة على
https://doi.org/10.1038/s41467-024-45874-z.
يجب توجيه المراسلات والطلبات للحصول على المواد إلى يونغشينغ يو، وي وي يانغ أو شاو جون قوه.
معلومات مراجعة الأقران تشكر مجلة Nature Communications دونغ كي لي والمراجعين الآخرين المجهولين على مساهمتهم في مراجعة هذا العمل. يتوفر ملف مراجعة الأقران.
معلومات إعادة الطباعة والتصاريح متاحة على
http://www.nature.com/reprints
ملاحظة الناشر: تظل Springer Nature محايدة فيما يتعلق بالمطالبات القضائية في الخرائط المنشورة والانتماءات المؤسسية.
الوصول المفتوح: هذه المقالة مرخصة بموجب رخصة المشاع الإبداعي للاستخدام والتوزيع والتكيف وإعادة الإنتاج في أي وسيلة أو صيغة، طالما أنك تعطي الائتمان المناسب للمؤلفين الأصليين والمصدر، وتوفر رابطًا لرخصة المشاع الإبداعي، وتوضح ما إذا تم إجراء تغييرات. الصور أو المواد الأخرى من طرف ثالث في هذه المقالة مشمولة في رخصة المشاع الإبداعي للمقالة، ما لم يُشار إلى خلاف ذلك في سطر الائتمان للمادة. إذا لم تكن المادة مشمولة في رخصة المشاع الإبداعي للمقالة وكان استخدامك المقصود غير مسموح به بموجب اللوائح القانونية أو يتجاوز الاستخدام المسموح به، ستحتاج إلى الحصول على إذن مباشرة من صاحب حقوق الطبع والنشر. لعرض نسخة من هذه الرخصة، قم بزيارةhttp://creativecommons.org/licenses/by/4.0/.
© المؤلف(ون) 2024

  1. المختبر الوطني الرئيسي لموارد المياه الحضرية والبيئة، كلية الكيمياء والهندسة الكيميائية، معهد هاربين للتكنولوجيا، هاربين، هيلونغجيانغ 150001، الصين. كلية علوم المواد والهندسة، جامعة بكين، بكين 100871، الصين. قسم الهندسة الكيميائية، كلية الكيمياء والهندسة الكيميائية، جامعة قويتشو، قويتشو 550025، الصين. مركز الأدوات التحليلية، المختبر الوطني الرئيسي لتحويل الفحم، معهد كيمياء الفحم، الأكاديمية الصينية للعلوم، تاييوان، شانشي 030001، الصين. المختبر الرئيسي للاستخدام الأخضر والعالي المستوى لموارد البحيرات المالحة، معهد بحيرات الملح في تشينغهاي، الأكاديمية الصينية للعلوم، شينينغ 810008، الصين. ساهم هؤلاء المؤلفون بالتساوي: لين هي، منغغانغ لي، لونغيو تشيو. البريد الإلكتروني:ysyu@hit.edu.cn; yangww@hit.edu.cn; guosj@pku.edu.cn

Journal: Nature Communications, Volume: 15, Issue: 1
DOI: https://doi.org/10.1038/s41467-024-45874-z
PMID: https://pubmed.ncbi.nlm.nih.gov/38480686
Publication Date: 2024-03-13

Single-atom Mo-tailored high-entropy-alloy ultrathin nanosheets with intrinsic tensile strain enhance electrocatalysis

Received: 23 June 2023
Accepted: 6 February 2024
Published online: 13 March 2024
(A) Check for updates

Lin , Menggang , Longyu , Shuo Geng , Yequn Liu , Fenyang Tian , Mingchuan Luo , Hu Liu , Yongsheng Yu , Weiwei Yang Shaojun Guo ©

The precise structural integration of single-atom and high-entropy-alloy features for energy electrocatalysis is highly appealing for energy conversion, yet remains a grand challenge. Herein, we report a class of single-atom Mo-tailored PdPtNiCuZn high-entropy-alloy nanosheets with dilute Pt-Pt ensembles and intrinsic tensile strain ( ) as efficient electrocatalysts for enhancing the methanol oxidation reaction catalysis. The as-made PdPtNiCuZn delivers an extraordinary mass activity of and , along with impressive long-term durability. The planted oxophilic Mo single atoms as promoters modify the electronic structure of isolated Pt sites in the high-entropy-alloy host, suppressing the formation of CO adsorbates and steering the reaction towards the formate pathway. Meanwhile, Mo promoters and tensile strain synergistically optimize the adsorption behaviour of intermediates to achieve a more energetically favourable pathway and minimize the methanol oxidation reaction barrier. This work advances the design of atomically precise catalytic sites by creating a new paradigm of single atom-tailored high-entropy alloys, opening an encouraging pathway to the design of CO-tolerance electrocatalysts.
Polymer electrolyte membrane fuel cells are considered as the most promising energy conversion devices that can compensate for the increasing global demand for sustainable energy . In particular, owing to their environmentally friendly, high energy conversion efficiency and convenient transport, direct methanol fuel cells are highly desirable devices for energy conversion in electric vehicles and portable electronic devices . However, the high dosages of Pt-based catalysts (the most common for anodic methanol oxidation reaction (MOR)) and poor CO adsorbates ( ) (the notorious intermediate blamed for poisoning Pt active sites in MOR) tolerance hinder their
commercialization . Given the CO-poisoning effect, improving the catalyst efficiency by attenuating the further oxidation barrier of or switching the reaction to a CO-free dominated pathway will be desirable .
Conventional wisdom to address the activity and durability issues of precious-metal-based catalysts mainly includes manipulating architectures, alloying with other transition metals ( M ), tailoring morphologies, optimizing supports, and so on . Although the construction of PtM alloys has been implemented to rationally tune the electronic structure of Pt to optimize the binding energies, the
capability of electron modulation is hampered by the restricted compositional scope of . Moreover, the abundance of interlinked ensembles in PtM alloys makes it more likely to form , with only the Pt sites around the additional metal atoms that can tolerate CO poisoning, making it challenging to maximize the catalytic activity and durability .
High entropy alloys (HEAs) are promising materials for the freedom from CO poisoning and improving MOR performance because of their robust capacity for isolating Pt atoms and their expansive and modulable compositional space. Stemming from alloying-induced charge redistribution and enabling multiple active sites, various HEAs have been designed to suitably modulate the binding energies of critical reaction intermediate species toward multi-electron involved MOR electrocatalysis . Despite recent important endeavors in the synthesis of , precise design and optimization of HEAs at the atomic level for greatly enhancing the activity, CO tolerance, and stability for MOR is still a grand challenge.
In this study, an oxophilic Mo metal in the form of atomically dispersed sites was used to tailor the HEA nanosheets (NSs) for significantly boosting the MOR electrocatalysis in terms of activity, CO tolerance and durability. The optimized well-defined single-atom high-entropy-alloy (SAHEA) NSs delivered an ultrahigh mass activity of and , respectively for MOR, 18.13 and 8.58 folds higher than that of Pt/C catalysts, with the impressive durability. Theoretical calculations and spectroscopic results unveil that the superior MOR performance of SAHEA NSs is due to the isolated Mo atoms and intrinsic tensile strain for constructing a suitable electronic microenvironment for the diluted Pt sites, facilitating the deep oxidation of the key reactive species. This switches the intermediates from to formate that circumvents CO poisoning and accelerates the MOR process kinetically and thermodynamically.

Results

Material synthesis and characterizations

The immobilization of isolated Mo-atoms on tensile-strained HEA NSs was achieved by a simple one-pot liquid-phase synthesis method (Details in Experimental Section). To understand the growth mechanism, the intermediates collected at different growth stages were investigated using -PdPtNiCuZn SAHEA NSs as a platform (Supplementary Figs. 1-4). Overall, the growth for SAHEA NSs can be divided into three major steps, involving the initial formation of atomic-thick Pd-rich nanosheets, controlled reduction and diffusion of other reducible atoms (e.g., , and Zn ), and subsequent formation of atomically dispersed Mo sites on the surface of NSs. Figure 1a schematically illustrates the synthetic procedure and shape evolution of SAHEA NSs. In particular, the appropriate dosages of and reducing agent (L-ascorbic acid) are critical to forming single-atom Mo-tailored HEA NSs. The XRD patterns of different intermediates all show three typical face-centered cubic (fcc) diffraction peaks, which gradually shift to higher angles as the reaction progresses, revealing that more atoms were alloyed with Pd NSs during the post-reaction stages.
Representative transmission electron microscopy (TEM) and lowmagnification high-angle annular dark-field scanning TEM (HAADFSTEM) images display that the SAHEA NSs are entirely dominated by two-dimensional (2D) graphene-like ultrathin nanosheets (Supplementary Fig. 5 and Fig. 1b). X-ray diffraction (XRD) pattern exhibits a typical structure of Pd (PDF# 46-1043) without apparent phase segregation, implying the successful creation of HEAs (Fig. 1c). Meanwhile, the weakening and broadening of diffraction peaks reveal the presence of lattice distortion in SAHEA NSs. The atomic ratio of in CuZn SAHEA NSs is determined to be 24.1/14.6/26.3/22.1/11.1/1.8 by inductively coupled plasma mass spectrometry (ICP-MS), in well
agreement with the STEM energy-dispersive X-ray spectroscopy (STEM-EDS) and inductively coupled plasma optical emission spectroscopy (ICP-OES) results (Fig. 1d and Supplementary Table 1). The average thickness was determined by atomic force microscopy (AFM) to be about 1.69 nm , further confirming their ultrathin character (Fig. 1e, f). Moreover, the polycrystalline properties and abundant atomic-scale concave defects can be revealed by the high-resolution TEM (HRTEM) image taken from individual -PdPtNiCuZn SAHEA NS, mainly arising from the oxidative etching by trace amount of introduced during the addition of Cu precursors (Fig. 1g). This can be confirmed by the fact that only pierced SAHEA NSs were obtained when introducing more into the Cu precursor solution (Supplementary Fig. 6). The aberration-corrected HAADFSTEM image further reveals the high-crystallinity of SAHEA NSs with the clear lattice fringes of (111) facets, which can also be verified by the corresponding fast Fourier transform (FFT) patterns (Fig. ). Furthermore, the inverse FFT patterns and the corresponding integrated pixel intensities display the average lattice spacing varies from 0.233 nm to 0.237 nm (Fig. 1i, j and Supplementary Fig. 7), indicating substantial lattice distortions and intrinsic tensile strain in the -PdPtNiCuZn SAHEA NSs, arising from the difference in atomic sizes of each component, concave defects, and ultrathin thickness . The elemental EDS mapping demonstrates the homogeneous distribution of , and Zn elements, and isolated Mo atoms in the -PdPtNiCuZn SAHEA NSs (Fig. 1k). In addition, X-ray photoelectron spectroscopy (XPS) analysis was performed to further confirm the presence of and Mo in SAHEA NSs (Supplementary Fig. 8). Note that Pd, Pt, , and Zn atoms are mainly in the metallic states, while Mo atoms are primarily in the oxidation states, reflecting the fact that the Mo atoms in -PdPtNiCuZn HEA NSs are under-coordinated atoms and more oxyphilic than other atoms on facets. (Supplementary Fig. 9). Given the ease with which Mo is oxidized, we deduce that the Mo atoms are located on the surface of SAHEA NSs .
High-resolution EDX elemental mapping demonstrates that Pd, Pt, , and Zn elements are uniformly distributed throughout the PdPtNiCuZn SAHEA NSs (Fig. 2a). However, Mo atoms are distributed sporadically but evenly doped into the NSs in the form of an isolated atom, providing the preliminary evidence for the isolated Mo singleatoms on -PdPtNiCuZn SAHEA NSs (Fig. 2b). Atomic-level electron energy loss spectroscopy (EELS) line-scanning acquisition was further performed to confirm that Mo atoms existed as single atoms (Fig. 2c and Supplementary Fig. 10). The spectra demonstrate the presence of a Mo atom in these atomic columns, with the signature edge occurring at the expected energy levels . These features are not present in the EELS of other atomic positions adjacent to this atomic site, proving that the Mo species in -PdPtNiCuZn SAHEA NSs mainly exist as single atoms. The coordination environment and valence state of Mo atoms in -PdPtNiCuZn SAHEA NSs were further confirmed by the X-ray absorption fine structure (XAFS) measurements. The X-ray absorption near-edge structure (XANES) spectra show that the Mo K-edge adsorption threshold position and white line intensity of PdPtNiCuZn SAHEA NSs are higher than those of Mo foil, implying that the surface-exposed Mo atoms are in high valence states, consistent with XPS results (Fig. 2d). Notably, the XANES spectrum of PdPtNiCuZn SAHEA NSs indicates a shoulder around 20010 eV in the pre-edge region, indicating that the existence of with distorted octahedron structure . In order to further clarify the subtle information about coordination circumstance, the -weight Fourier transforms of extended X-ray absorption fine structure (FT-EXAFS) curves of -PdPtNiCuZn SAHEA NSs and Mo foil at Mo K-edge were fitted in R and k spaces (Fig. 2e and Supplementary Fig. 11). The corresponding fitting parameters can be inspected in Supplementary Table 2. The -weight FT-EXAFS spectra reveal that the CuZn SAHEA NSs exhibit the major peak at , attributed to Mo-O
Fig. 1 | Synthesis and characterizations of -PdPtNiCuZn SAHEA NSs.
a Schematic illustration of the formation mechanism of -PdPtNiCuZn SAHEA NSs. b HAADF-STEM image, (c) XRD pattern and (d) STEM-EDS spectra (inset is the corresponding ICP-OES result) of -PdPtNiCuZn SAHEA NSs. e AFM image and (f) corresponding height profile of single SAHEA NS. g HRTEM image (inset is the FFT pattern and 3D model) of a single SAHEA NS.
High-resolution HAADF-STEM image of the surface atomic arrangement on a single -PdPtNiCuZn SAHEA NS and the corresponding FFT patterns from the dashed white areas in ( ). The corresponding inverse FFT patterns of and The intensity profiles from the red areas in and HAADF-STEM-EDS elemental mapping of a single -PdPtNiCuZn SAHEA NS.
scattering from in SAHEAs. The characteristic peak of Mo-Mo scattering ( for the Mo foil) is almost absent, strongly confirming that the Mo species in -PdPtNiCuZn SAHEA NSs mainly exist in the form of atomically dispersed sites without long-range coordination to other Mo metal centres, further implying that the Mo species act as surface-modified species . Furthermore, the wavelet transform (WT) EXAFS reconfirms macroscopically Mo exhibits the feature of isolated metal atoms (Fig. 2f, g). Taken cumulatively, the above results demonstrate the successful creation of single-atom Motailored PdPtNiCuZn HEA NSs catalysts.
Considering that other reducible elements (e.g., ) can be alloyed with Pt in the presence of reductant in the OAm system at , the present synthetic method for single-atom Mo-tailored HEA NSs with tensile-strained allows for the expansion of the compositional space of HEA hosts, such as senary -PdPtCoNiCuZn SAHEA NSs (Fig. 3a and Supplementary Fig. 12) and septenary -PdPtFeCoNiCuZn SAHEA NSs (Fig. 3b and Supplementary Fig. 13), etc. Remarkably, high-resolution EDX elemental mapping demonstrates the uniform distribution of and Zn elements and the isolated Mo atoms in these SAHEA NSs. The -weight FT-EXAFS spectra further verify the single-atom feature of Mo species (Supplementary Fig. 14). Meanwhile, conspicuous intrinsic tensile strain,
lattice deformation, and defects were observed in all the SAHEA NSs mentioned above, mainly generated by the ultrathin feature and significant differences in the sizes of various atoms. These results confirm the generality of the present synthetic method for single-atom Motailored SAHEA NSs. Besides, we found that the subsequent addition of was the key to forming SAHEA NSs. The -PdPtNiCuZn SAHEA nanoparticle assemblies (NPs) can be obtained by the simultaneous introductions of and other metal precursors before the reaction, while other conditions are kept unchanged. As-obtained NPs exhibit compositions and single-atom Mo-tailored structures similar to SAHEA NSs (Supplementary Figs. 15, 16).

Electrocatalytic performance tests toward MOR

To validate the potential application of these customized single-atom Mo-modified HEA catalysts in MOR, the MOR performances were evaluated in a typical three-electrode system in methanol. Before electrocatalytic tests, -PdPtNiCuZn SAHEA NSs, -PdPtNiCuZn SAHEA NPs, and PdPtNiCuZn HEA NPs were deposited onto commercial carbon support through continuous ultrasonication, and washed with ethanol to ensure the surface of catalysts be clean (Supplementary Fig. 17). The observation of typical H atom
Fig. 2 | Compositional and electro-structural characterizations of PdPtNiCuZn SAHEA NSs. a, b High-resolution EDX elemental mapping. c Background-subtracted EELS line-scanning spectra of four adjacent atomic columns in SAHEA NSs acquired along the line in Supplementary
Fig. 10 (the edges for Mo are indicated). d Mo K-edge XANES spectra of PdPtNiCuZn SAHEA NSs and Mo foil. e The -weighted Fourier transformation of the Mo K-edge EXAFS spectra. Wavelet transformation of the -weighted Mo K-edge EXAFS signals of (f) -PdPtNiCuZn SAHEA NSs and (g) Mo foil.
adsorption/desorption and the oxidation/reduction of Pt regions indicates the high Pt atom utilization of these catalysts (Fig. 4a). Notably, the oxidation peaks of Mo species ( ) can be obviously identified in the amplified cyclic voltammograms (CV) curves of the -PdPtNiCuZn SAHEA NSs and Mo -PdPtNiCuZn SAHEA NPs, further demonstrating the presence of Mo atoms (Supplementary Fig. 18). The electrochemically active surface areas (ECSAs) are determined to be , and for -PdPtNiCuZn SAHEA NSs, -PdPtNiCuZn SAHEA NPs, PdPtNiCuZn HEA NPs, and Pt/C, respectively by the CV. The largest ECSA of SAHEA NSs can be attributed to its ultrathin 2D characters, revealing the ultrahigh utilization of noble metals methanol, all
catalysts display a clear anodic peak during the forward and reverse scanning, corresponding to the oxidation process of methanol and the intermediates (Fig. 4b and Supplementary Fig. 19). The CuZn SAHEA NSs, Mo -PdPtNiCuZn SAHEA NPs, and PdPtNiCuZn HEA NPs all show much higher MOR activities than commercial Pt/C catalysts. Planting the isolated Mo single atoms in high oxidation states as promoters into PdPtNiCuZn HEA NPs, the as-obtained Mol-PdPtNiCuZn SAHEA NPs show higher activity. Moreover, the constructed PdPtNiCuZn SAHEA NSs with intrinsic tensile strain deliver the highest MOR specific activity of , obviously higher than those of -PdPtNiCuZn SAHEA NPs and most of reported Pd/Pt-based electrocatalysts, and also 7.13 times higher than that of commercial
a: Senary -PdPtCoNiCuZn SAHEA NSs
Fig. 4 | MOR performances of different catalysts in alkaline electrolytes. a CVs of -PdPtNiCuZn SAHEA NSs, -PdPtNiCuZn SAHEA NPs, PdPtNiCuZn HEA NPs , and in -saturated . b ECSA-normalized MOR curves. c MOR mass activity of -PdPtNiCuZn SAHEA NSs, -PdPtNiCuZn SAHEA NPs, PdPtNiCuZn HEA NPs, and Pt/C in 1.0 M KOH containing 1.0 M methanol.
d Chronoamperometric tests for MOR at 0.77 V vs. RHE of -PdPtNiCuZn SAHEA NSs, -PdPtNiCuZn SAHEA NPs, PdPtNiCuZn HEA NPs and Pt/C. e Long-term durability of SAHEA NSs, and the arrows indicate when the electrolyte is refreshed.
Fig. 5 | Reaction mechanism of MOR on Mo -PdPtNiCuZn SAHEA NSs. a COstripping curves of SAHEA NSs and Pt/C catalysts recorded in saturated 1.0 M KOH . In-situ FTIR spectrum of MOR on (b) -PdPtNiCuZn SAHEA
NSs/C and (c) Pt/C at different potentials varying from 0.20 to 1.30 V at an interval of 0.05 V in methanol solution. d Schematic diagram of possible pathways for MOR on SAHEA NSs.
(Supplementary Table 3). In addition, the mass activities of PdPtNiCuZn SAHEA NSs can be calculated to be and , 18.13/8.58 times higher than those of commercial Pt/ C (Fig. 4c). Furthermore, the charge transfer kinetics of CuZn SAHEA NSs, Mo PdPtNiCuZn SAHEA NPs, PdPtNiCuZn HEA NPs and Pt/C towards MOR were investigated by electrochemical impedance spectroscopy (EIS). Among the four catalysts, SAHEA NSs represent the minimum electrochemical impedance under 0.75 V vs. RHE, reflecting the maximum charge conductivity (Supplementary Fig. 20). The above results suggest that tailoring the PdPtNiCuZn high-entropy alloy host with atomically dispersed Mo single atoms allows for significant modulation of the adsorption behavior of the key intermediates involved MOR, resulting in an optimal reaction path and high performance. Meanwhile, tensile strain can also assist the adsorption/desorption process, synergistically contributing to efficient MOR catalysis . The sharp anodic peaks of SAHEA NSs and Mo -PdPtNiCuZn SAHEA NPs in the reverse scan further confirm that the electronic effect via dispersing Mo as single atoms can be utilized to enhance the reaction selectivity and kinetics, thus obtaining higher catalytic performance.
To evaluate the MOR stability, the chronoamperometry (CA) measurements of the -PdPtNiCuZn SAHEA NSs, -PdPtNiCuZn SAHEA NPs, PdPtNiCuZn HEA NPs, and commercial Pt/C catalysts were executed at 0.77 V vs. RHE for . As shown in Fig. 4d, the PdPtNiCuZn SAHEA NSs, Mo -PdPtNiCuZn SAHEA NPs, and PdPtNiCuZn HEA NPs all display much higher current densities than that of commercial Pt/C, indicating their excellent long-term durability toward MOR. Additionally, CA tests of the SAHEA NSs for MOR have been further prolonged to 10 h (Supplementary Fig. 21).
The current densities remain for MOR after the long-term durability tests, further confirming the superior stability of PdPtNiCuZn SAHEA NSs. Of note, the catalytic activity of CuZn SAHEA NSs can be restored by replacing fresh working electrolytes after five consecutive cycles of CA tests, revealing respectable reproducibility (Fig. 4e). The morphologies of SAHEA NSs, SAHEA NPs, and PdPtNiCuZn HEA NPs after stability tests can be well preserved, while the commercial Pt/C exhibits obvious aggregation (Supplementary Fig. 22). The 2D ultrathin nanosheet shape and multimetallic compositions of SAHEA NSs are maintained, further verifying the impressive compositional and structural stability under the applied potential of 0.77 V (Supplementary Fig. 23). XPS spectra of SAHEA NSs after MOR tests were very similar to that before MOR electrocatalysis, further confirming excellent stability (Supplementary Figs. 24, 25).

Mechanism investigation

To gain insight into the origin of the high MOR performance of PdPtNiCuZn SAHEA NSs, we employed CO stripping and in-situ spectroscopy tests. As shown in Fig. 5a, the oxidation peak of the absorbed CO at around 0.75 V vs. RHE is more repressed on the SAHEA NSs compared to that of commercial Pt/C, indicating the remarkable tolerance to CO poisoning. This is because the multiple metals in the SAHEA NSs can significantly dilute the Pt-Pt sites for forming the isolated Pt sites on the surface, and the tensile strain expands the Pt-Pt distance. These structural characteristics favor the switch from MOR to a CO-free dominated pathway due to the formation of requiring the presence of at least three contiguous Pt atoms or defect sites . In addition, the exposure and
modification of oxophilic Mo single-atoms can effectively tune the band center of their adjacent sites, achieving a favorable balance between effective dissociation of reactants and proper binding of intermediates for improving MOR selectivity and accelerating reaction kinetics. Therefore, the -PdPtNiCuZn SAHEA NSs achieve double enhancement of catalytic activity and stability by avoiding the formation of in MOR, boosting the deep oxidation of key reaction intermediate, and accelerating the kinetics of the rate-determining step. Moreover, the enhanced MOR electrocatalytic performance caused by the diluted Pt-Pt ensembles can be further confirmed by the fact that the SAHEA NSs catalysts exhibit significantly enhanced MOR performances over the single-atom Mo-tailored lowand medium-entropy-alloy NSs (Supplementary Figs. 26, 27). Specifically, the construction of Mo-tailored SAHEA NSs can significantly dilute Pt-Pt ensembles to achieve the slightest formation of and optimize electronic structures to enhance the formate pathway (Supplementary Fig. 28).
In-situ Fourier transform infrared (FTIR) spectroscopy was performed to track the reaction intermediate during MOR electrocatalysis. Several characteristic bands between 2400 and can be observed clearly in the investigated potential window (Fig. 5b, c). Specifically, the bands at ca. 1585, 1378, and can be attributed to , and of formate , respectively. The downward band located at about belongs to another characteristic peak of formate whose specific vibrational mode has not been confirmed yet. Notably, there is no signal over the entire potential range, whereas (ca. ) appears at high potentials, manifesting that originates from further oxidation of the weakly adsorbed formate . Moreover, the band at about belongs to the of , formed by the reaction of desorbed with . The onset potential for producing the formate (characteristic bands of 1585, 1378, 1349 , and ) over -PdPtNiCuZn SAHEA NSs is lower than that of commercial Pt/C . The much stronger formate characteristic band of formate) on SAHEA NSs indicates that methanol can be more easily oxidized to formate on SAHEA NSs (Supplementary Fig. 29). Meanwhile, more is observed on PdPtNiCuZn SAHEA NSs, meaning that methanol is more readily oxidized to formate and further to , further supporting the outstanding MOR performances on SAHEA NSs. Combining CO stripping and in-situ FTIR studies, the Mol-PdPtNiCuZn SAHEA NSs can avoid the formation of and switch the MOR to the formate-dominated pathway (Fig. 5d), while the MOR process of Pt/C involves both the CO pathway and the formate pathway, resulting in the catalyst deactivation.
Density functional theory (DFT) calculations were conducted to further verify the mechanism for the enhanced MOR performance over SAHEA NSs. Considering the incorporation of Mo single atoms and the introduction of tensile strain, the strained PdPtNiCuZn, , and PdPtNiCuZn surfaces were constructed as calculation models (Supplementary Fig. 30). Bader charge simulation reveals that the charge state of Pt atoms becomes more negative with high electron density, indicating that the electrons are more localized around the Pt atoms. However, the Mo atoms are electron deficient, meaning the efficient electron transfer, in agreement with the XPS analysis (Fig. 6a and Supplementary Fig. 31). The results illustrate that introducing single-atom Mo can efficaciously optimize the electronic density around Pt sites. To further understand the electronic structures of SAHEA and PdPtNiCuZn HEA, the partial projected density of states (PDOSs) of each element in HEA has been illustrated. As depicted in Fig. 6b, c, the Ni and Mo elements serve as electron depletion centers during the MOR process, promoting electron transfer for the HEA surfaces. Meanwhile, the efficient orbital coupling between , and Zn not only lowers the energy barrier of electron transfer during oxidation but also
can stabilize the valence state of Pt sites, facilitating the stabilization of intermediates for . Such element combination can provide the optimal surface configuration, suitable electronic microenvironment, and ideal adsorption/desorption sites for MOR, enabling proper adsorption of key intermediates to enhance the formate-dominated MOR. Compared with the PdPtNiCuZn, introducing Mo single atoms near the Pt sites further enhances the electroactivity. Moreover, the total -density of states (TDOS) plots of different models were calculated to visualize the -band centers, whose positions can be directly associated with enhanced MOR activity (Fig. 6d). Comparison with the electronic structure of PdPtNiCuZn reveals that the overall -band center of strained has significantly shifted upward after introducing Mo single atoms and tensile strain, further suggesting that the improved electron transfer efficiency of the electrocatalysts. Due to the reduced occupancy of the anti-bonding orbitals, the upward shift of the -band center can contribute to the strong adsorption of intermediates . Therefore, strained with the up-shifted -band center displays the stronger binding energy with key reaction intermediates and *OH, thus increasing the chance of these intermediates being further oxidized to .
Furthermore, the performances of and CuZn are compared from the energetic perspective. As shown in Fig. 6e, the more powerful adsorption of and on singleatom Mo-modified PdPtNiCuZn leads to enhanced electroactivity toward MOR. As expected, the exhibits an unpreferred adsorption CO . We deduce that CO molecules barely adsorb on -PdPtNiCuZn SAHEA NSs in alkaline electrolytes. may not be a preferable intermediate, which can be further demonstrated by the weaker preference of for the CO pathway (Fig. 6f). These calculations suggested that the formation of HEA significantly diluted the continuous Pt-Pt sites, and the planting of Mo single atoms as promoters effectively adjusted the electronic structure of HEA hosts, kinetically and thermodynamically prohibiting the formation of , thus circumventing the CO -poisoning effect and synchronously switching the reaction to the formate dominated pathway. For the pathway, the rate-determining step (RDS) occurs at to . At a potential of exhibits a more energetically favorable pathway and lower overpotential than PdPtNiCuZn (Fig. 6g). At , the minimum applied voltage enabling to reach an ideal reaction equilibrium state at the RDS of pathway without extra external energy on -PdPtNiCuZn (111) surface shows an uphill slope at the RDS, indicating that the reaction step is an endothermic reaction at this voltage and requires additional energy. In contrast, the ideal reaction equilibrium state is reached at the RDS without extra external energy on . The more negative reaction energies further reveal that deep and oxidation on becomes more feasible (Fig. 6h). In addition, the influence of tensile strength on reaction tendency at the RDS was also studied (Fig. 6i). The of the RDS on strained shows a more negative value due to the combination of modification of Mo single atoms and intrinsic tensile strain, revealing the acceleration in kinetics and thermodynamics consistent with the experimental observations.

Discussion

In summary, we report a general method for synthesizing a class of single-atom Mo-tailored HEA ultrathin NSs with intrinsic tensile strain (including but not limited to quinary , senary PdPtCoNiCuZn, and septenary -PdPtFeCoNiCuZn SAHEA NSs) as high-performance electrocatalysts toward MOR in alkaline conditions. The representative SAHEA NSs exhibit an extraordinary mass activity of and at the peak potential, respectively, 18.13 and 8.58 times higher than commercial Pt/C catalysts, as well as display impressive durability. In-situ
Fig. 6 | DFT calculations for the structural configuration and energetic reaction pathways. a The Bader charge simulation for . The PDOSs of (b) and PdPtNiCuZn. d The TDOS of -band in (a) strained PdPtNiCuZn, (b) -PdPtNiCuZn, (c) PdPtNiCuZn, and (d) Pt/C models. e The
adsorption energy comparison of , and CO on and PdPtNiCuZn. The reaction energy comparison of (f) CO pathway and pathway for MOR electrocatalysis on , and . i The of RDS on strained , and PdPtNiCuZn.
FTIR analysis and DFT calculations unveil that planting oxophilic Mo single atoms can provide a suitable electronic microenvironment for adjacent dilute Pt sites, selectively switch MOR to the formatedominated pathway, and combine with tensile strain to optimize intermediate adsorption behavior, which logically manipulated the excellent activity and long-term stability. This work demonstrates an effective and practical strategy for the design of engineering-strained single atom-modified HEA catalysts to facilitate the exploration of advanced catalysts with superior catalytic performance for a wide range of applications.

Methods

Chemicals

Palladium (II) acetylacetonate , iron (III) acetylacetonate ( ), nickel (II) acetylacetonate ( , 95%), zinc (II) acetylacetonate ( ), cobalt (III) acetylacetonate , copper (II) acetylacetonate , ), molybdenum hexacarbonyl ( ), potassium hydroxide ( ) and oleylamine ( ) were all purchased from Aladdin. Platinum (II) acetylacetonate (Pt(acac), 97%) was provided by Innochem. L-ascorbic acid (AA, 98%) and Nafion (5 wt.%) were obtained from Adamas. Isopropanol ( . ), toluene ( . ), methanol ( . ), ethanol ( . ), and cyclohexane ( , AR.) were supplied by Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). Commercial carbon supported Pt catalyst (Pt/C, of 3 nm -Pt nanoparticles on carbon black) was provided by Johnson-Matthey Corp. All regents were used without
further purification, and all solutions were freshly prepared with ultrapure water ( ).

Preparation of SAHEA ultrathin NSs

In a typical preparation of quinary SAHEA NSs, and were added into a four-neck flask containing 12 mL of OAm . This mixture was then heated to in vacuum and maintained for 15 min under magnetic stirring to remove air and water. Afterward, the flask was purged with nitrogen ( ) and cooled to room temperature. After and AA were added into the mixture, the flask was evacuated again for 10 min . Then, the flask was filled with and heated to under magnetic stirring. dissolved in 0.5 mL OAm and 0.5 mL toluene was then added dropwise to the above mixture under magnetic stirring. After the injection, the mixed solution was heated at for 2 h . At last, the reaction mixture was rapidly cooled down to room temperature and collected by centrifugation. Finally, the products were washed two or three times with a cyclohexane/ethanol mixture.
The preparation of binary single-atom low-entropy-alloy (SALEA) NSs was similar to that of quinary -PdPtNiCuZn SAHEA NSs except for the absence of , and in the reactants. The preparation of ternary single-atom medium-entropy-alloy (SAMEA) NSs was similar to that of quinary PdPtNiCuZn SAHEA NSs except for the absence of and in the reactants. The preparation of senary CuZn SAHEA NSs was similar to that of quinary
SAHEA NSs except for adding into reactants. The preparation of septenary -PdPtFeCoNiCuZn SAHEA NSs was similar to that of quinary SAHEA NSs except for adding and into reactants.

Preparation of -PdPtNiCuZn SAHEA NPs

The synthesis for SAHEA NPs was similar to those of -PdPtNiCuZn SAHEA NSs except that the Cu precursor was added into the reaction solution at the beginning.

Preparation of PdPtNiCuZn HEA NPs

The synthesis for PdPtNiCuZn HEA NPs was similar to those of PdPtNiCuZn SAHEA NPs except for the absence of in the reactants.

Characterizations

The Transmission electron microscopy (TEM) characterization was collected by JEM-1400 operating at 100 kV (JEOL Ltd). Highresolution TEM (HRTEM), high-angle annular dark-field scanning TEM (HAADF-STEM) and HAADF-STEM energy dispersive X-ray spectroscopy (HAADF-STEM-EDS) were characterized by an FEI Tecnai-G2 F30 at an accelerating voltage of 300 KV . X-ray diffraction spectroscopy (XRD) was performed on a PANanalytical X’Pert Powder with . The compositions were analyzed by inductively coupled plasma optical emission spectroscopy (ICP-OES, Optima 8300) and inductively coupled plasma mass spectrometry (ICP-MS, Agilent 7800). X-ray photoelectron spectroscopy (XPS) spectra were recorded on Thermo Scientific (ESCALAB 250 XI). AFM image of the sample was conducted on tapping mode with a Multimode Nanoscope IIIa SPA (Veeco Instruments, Bruker) under ambient conditions. XAS experiments were conducted at the Mo K-edge on the beamline BL1W1B in the Beijing Synchrotron Radiation Facility (BSRF). XAS data were processed and analyzed using the Demeter software package. A linear function was subtracted from the preedge region, then the edge jump was normalized using Athena software .

Electrocatalytic measurements

Before the electrocatalytic measurements, as-synthesized PdPtNiCuZn SAHEA NSs, Mo PdPtNiCuZn SAHEA NPs and PdPtNiCuZn HEA NPs were deposited onto the commercial carbon supports (Ketjen Black-300) by sonication for 3 h . The final products were collected via centrifugation and washed with ethanol for three times to obtain the tested carbon-supported catalysts. Subsequently, 1.0 mg of dry catalysts were dispersed in a mixed solvent containing 0.4 mL isopropanol, 0.6 mL ultrapure water, and Nafion by ultrasound for 30 min to obtain homogeneous catalyst inks. For the electrochemical tests, the of ink was dropped onto a clean glassy-carbon electrode (GCE, diameter: 4 mm ) to prepare the working electrode, and the saturated calomel electrode (SCE) and Pt foil ( ) were served as reference and counter electrodes, respectively. All the electrochemical measurements were performed on a CHI 660 E (Chenhua, Shanghai) electrochemical workstation with a typical threeelectrode configuration, and all the recorded potentials were converted to the reversible hydrogen electrode (RHE). The cyclic voltammograms (CVs) were collected in -saturated with a scan rate of . The electrochemical active surface areas (ECSAs) were estimated according to the underpotentially deposited H methods. From the charge of Hupd desorption peak in the recorded CVs, the ECSAs of catalysts were determined from one monolayer of hydrogen desorption on Pt with a criterion of 0.21 .
The methanol oxidation reaction (MOR) polarization curves were obtained at the scan rate of in -saturated methanol solution. Before MOR tests, the catalysts were activated by
conducting the CVs to be stable in -saturated 1 M KOH at a sweep rate of . The chronoamperometry (CA) measurements of MOR were conducted in methanol solution at 0.77 V vs. RHE. For the CO stripping measurement, the working electrode was held at a constant potential of -0.88 V vs. SCE under a flow of CO bubbled into the -saturated 1.0 M KOH electrolyte for 15 min . Afterward, the working electrode was quickly moved into a fresh saturated 1.0 M KOH electrolyte and recorded the two cycles at a scan rate of .

Electrochemical in-situ FTIR reflection spectroscopy

In-situ FTIR was carried out to trace the signals of the intermediates using a Nicolet iS50 Spectroscopy equipped with a liquid nitrogencooled mercury-cadmium-telluride (MCT) detector. An ECIR-II cell equipped with a Pike Veemax III ATR in a three-electrode system was provided from Shanghai Linglu Instrument & Equipment Co. of catalyst ink was dropped onto glass carbon electrode equipped with specially-made three-electrode thin-layer IR cell configuration, using as the window. The in-situ FTIR spectroscopy was collected from 0.2 V to 1.3 V (vs. RHE) every 50 mV in -saturated methanol.

Calculation setup

The First-Principles calculations were implemented in the Vienna ab initio Simulation Package (VASP) with the Projector-Augmented-Wave (PAW) pseudopotentials within the density functional theory (DFT) framework . The electron exchange-correlation energy was described by the Perdew-Burke-Ernzerhof (PBE) functional within the generalized gradient approximation (GGA) . The special quasi-random structure (SQS) of high-entropy alloys was generated using the Monte Carlo SQS (MCSQS) tool within the Alloy Theory Automation Toolkit (ATAT) . An cell consisting of 32 atoms was constructed to perform the calculations. The cut-off energy of the plane-wave basis was set to 500 eV . The Brillouin zone integration was sampled using a Monkhorst-Pack ( ) k-point mesh. Spin polarization was considered in all calculations. The top two layers of atoms in the model were allowed to be adjusted until the residual forces per atom were less than , and the maximum energy difference was less than .

Data availability

The experiment data which support the findings of this study are presented in this article and the Supplementary Information, and are available from the corresponding authors upon request. The source data underlying Figs. 1-6 are provided as a Source Data file. Source data are provided with this paper.

References

  1. Seh, Z. W. et al. Combining theory and experiment in electrocatalysis: insights into materials design. Science 355, eaad4998 (2017).
  2. Zhou, Y. et al. Lattice-confined Ru clusters with high CO tolerance and activity for the hydrogen oxidation reaction. Nat. Catal. 3, 454-462 (2020).
  3. Zhuang, Z. et al. Atomically dispersed nonmagnetic electron traps improve oxygen reduction activity of perovskite oxides. Energy Environ. Sci. 14, 1016-1028 (2021).
  4. Aricò, A. S., Srinivasan, S. & Antonucci, V. DMFCs: from fundamental aspects to technology development. Fuel Cells 1, 133-161 (2001).
  5. Sharma, S. & Pollet, B. G. Support materials for PEMFC and DMFC electrocatalysts-a review. J. Power Sources 208, 96-119 (2012).
  6. Feng, Y., Liu, H. & Yang, J. A selective electrocatalyst-based direct methanol fuel cell operated at high concentrations of methanol. Sci. Adv. 3, e1700580 (2017).
  7. Liu, L. & Corma, A. Metal catalysts for heterogeneous catalysis: from single atoms to nanoclusters and nanoparticles. Chem. Rev. 118, 4981-5079 (2018).
  8. Jiang, J. et al. Freestanding single-atom-layer Pd-based catalysts: oriented splitting of energy bands for unique stability and activity. Chem 6, 431-447 (2020).
  9. Wang, J. et al. Toward electrocatalytic methanol oxidation reaction: longstanding debates and emerging catalysts. Adv. Mater. 35, 2211099 (2023).
  10. Mistry, H. et al. Nanostructured electrocatalysts with tunable activity and selectivity. Nat. Rev. Mater. 1, 16009 (2016).
  11. Han, S. et al. The synergy of tensile strain and ligand effect in PtBi nanorings for boosting electrocatalytic alcohol oxidation. Adv. Funct. Mater. 32, 2208760 (2022).
  12. Yin, P., Yan, Q. & Liang, H. Strong metal-support interactions through sulfur-anchoring of metal catalysts on carbon supports. Angew. Chem. Int. Ed. 62, e202302819 (2023).
  13. Li, C. et al. Synthesis of core@shell Cu-Ni@Pt-Cu nano-octahedra and their improved MOR activity. Angew. Chem. Int. Ed. 133, 7753-7758 (2021).
  14. Hao, J. et al. Unraveling the electronegativity-dominated intermediate adsorption on high-entropy alloy electrocatalysts. Nat. Commun. 13, 2662 (2022).
  15. Tao, F. et al. Reaction-driven restructuring of Rh-Pd and Pt-Pd coreshell nanoparticles. Science 322, 932-934 (2008).
  16. Sun, Y. et al. A general approach to high-entropy metallic nanowire electrocatalysts. Matter 6, 193-205 (2023).
  17. Zhu, J. et al. Ultrahigh stable methanol oxidation enabled by a high hydroxyl concentration on Pt clusters/MXene interfaces. J. Am. Chem. Soc. 144, 15529-15538 (2022).
  18. Jiang, K. et al. Electrocatalysis of formic acid on palladium and platinum surfaces: from fundamental mechanisms to fuel cell applications. Phys. Chem. Chem. Phys. 16, 20360-20376 (2014).
  19. Li, H. et al. Fast site-to-site electron transfer of high-entropy alloy nanocatalyst driving redox electrocatalysis. Nat. Commun. 11, 5437 (2020).
  20. Chen, W. et al. High-entropy intermetallic PtRhBiSnSb nanoplates for highly efficient alcohol oxidation electrocatalysis. Adv. Mater. 34, 2206276 (2022).
  21. Yao, Y. et al. High-entropy nanoparticles: synthesis-structureproperty relationships and data-driven discovery. Science 376, eabn3103 (2022).
  22. Nakaya, Y. et al. High-entropy intermetallics serve ultrastable single-atom Pt for propane dehydrogenation. J. Am. Chem. Soc. 144, 15944-15953 (2022).
  23. Zhan, C. et al. Subnanometer high-entropy alloy nanowires enable remarkable hydrogen oxidation catalysis. Nat. Commun. 12, 1-8 (2021).
  24. Tao, L. et al. A general synthetic method for high-entropy alloy subnanometer ribbons. J. Am. Chem. Soc. 144, 10582-10590 (2022).
  25. Fu, X. et al. High-entropy alloy nanosheets for fine-tuning hydrogen evolution. ACS Catal. 12, 11955-11959 (2022).
  26. Lin, F. et al. Local coordination regulation through tuning atomicscale cavities of Pd metallene toward efficient oxygen reduction electrocatalysis. Adv. Mater. 34, 2202084 (2022).
  27. Luo, M. et al. PdMo bimetallene for oxygen reduction catalysis. Nature 574, 81-85 (2019).
  28. Zhu, P. et al. Regulating the moiety by constructing dual-metal atom sites for efficient electrochemical oxygen reduction. Nano Lett. 22, 9507-9515 (2022).
  29. Wang, H. et al. In operando X-ray absorption fine structure studies of polyoxometalate molecular cluster batteries: polyoxometalates electron sponges. J. Am. Chem. Soc. 134, 4918-4924 (2012).
  30. Yang, Y. et al. O-coordinated W-Mo dual-atom catalyst for universal electrocatalytic hydrogen evolution. Sci. Adv. 6, eaba6586 (2020).
  31. Li, M. et al. Single-atom tailoring of platinum nanocatalysts for highperformance multifunctional electrocatalysis. Nat. Catal. 2, 495-503 (2019).
  32. Ma, M. et al. Single-atom molybdenum engineered platinum nanocatalyst for boosted alkaline hydrogen oxidation. Adv. Energy Mater. 12, 2103336 (2022).
  33. Luo, S. et al. A tensile-strained PtRh single-atom alloy remarkably boosts ethanol oxidation. Adv. Mater. 33, 2008508 (2021).
  34. Wang, X. et al. The role of bismuth in suppressing the CO poisoning in alkaline methanol electrooxidation: switching the reaction from the CO to formate pathway. Nano Lett. 23, 685-693 (2023).
  35. Kong, F. et al. Selectively coupling Ru single atoms to PtNi concavities for high-performance methanol oxidation via d-band center regulation. Angew. Chem. Int. Ed. 61, e202207524 (2022).
  36. Matsuoka, K. et al. Electro-oxidation of methanol and ethylene glycol on platinum in alkaline solution: Poisoning effects and product analysis. Electrochim. Acta 51, 1085-1090 (2005).
  37. Zhu, J. et al. Hierarchical porous Rh nanosheets for methanol oxidation reaction. Appl. Catal. B Environ. 264, 118520 (2020).
  38. Ravel, B. & Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 12, 537-541 (2005).
  39. Kresse, G. & Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15-50 (1996).
  40. Kresse, G. & Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 59, 1758 (1999).
  41. Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865-3868 (1996).
  42. Van de Walle, A. et al. Efficient stochastic generation of special quasirandom structures. Calphad 42, 13-18 (2013).

Acknowledgements

This work was supported by the National Natural Science Foundation of China under Grant (Nos. 52071119, 52271170, 52025133 and 52261135633), Heilongjiang Natural Science Funds for Distinguished Young Scholar (Grant No. JQ2O23EOO4), the Fundamental Research Funds for the Central Universities (Grant No. HIT.OCEF. 2021025), State Key Laboratory of Urban Water Resource and Environment (Harbin Institute of Technology) (No. 2022TS38), China National Petroleum Corporation-Peking University Strategic Cooperation Project of Fundamental Research, the Beijing Natural Science Foundation (No. Z220020), CNPC Innovation Found (2021DQ02-1002) and the China Postdoctoral Science Foundation (No. 2022M710201). The numerical calculations in this paper have been done on Hefei advanced computing center. The authors thank the photoemission BL1W1B in the Beijing Synchrotron Radiation Facility (BSRF) for the help with characterizations. The authors thank Dr. Li Dongmei from the Experimental Center of the School of Environment for assistance in TEM tests.

Author contributions

S.G., W.Y., and Y.Y. conceived the project. L.H. and M.L. designed the experiments. L.H., M.L., L.Q. and M.Luo. performed data analysis and experiments discussions. L.H. and H.L. participated in the XAFS experiments and data analyses. L.H. and Y.L. conducted HAADF-STEM and HRTEM measurements and data analyses. L.H. and S.Geng. performed in-situ FTIR experiments and data analyses. L.Q. and F.T. carried out the DFT simulations. L.H., M.L. and L.Q. wrote the paper. All authors discussed the results and commented on the manuscript.

Competing interests

The authors declare no competing interests.

Additional information

Supplementary information The online version contains
Supplementary Material available at
https://doi.org/10.1038/s41467-024-45874-z.
Correspondence and requests for materials should be addressed to Yongsheng Yu, Weiwei Yang or Shaojun Guo.
Peer review information Nature Communications thanks Dong Ki Lee, and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.
Reprints and permissions information is available at
http://www.nature.com/reprints
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/ licenses/by/4.0/.
© The Author(s) 2024

  1. State Key Laboratory of Urban Water Resource and Environment, School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin, Heilongjiang 150001, China. School of Materials Science and Engineering, Peking University, Beijing 100871, China. Department of Chemical Engineering, School of Chemistry and Chemical Engineering, Guizhou University, Guiyang 550025, China. Analytical Instrumentation Center, State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan, Shanxi 030001, China. Key Laboratory of Green and High-end Utilization of Salt Lake Resources, Qinghai Institute of Salt Lakes, Chinese Academy of Sciences, Xining 810008, China. These authors contributed equally: Lin He, Menggang Li, Longyu Qiu. e-mail: ysyu@hit.edu.cn; yangww@hit.edu.cn; guosj@pku.edu.cn
