إنتاج الإيثيلين بالتحفيز الضوئي من خلال إزالة الهيدروجين المؤكسدة للإيثان باستخدام الأكسجين الثنائي على جزيئات نانوية بين المعادن PdZn المدعومة بـ ZnO Photocatalytic ethylene production by oxidative dehydrogenation of ethane with dioxygen on ZnO-supported PdZn intermetallic nanoparticles
تجفيف الأكسدة الانتقائية للإيثان (ODHE) يجذب اهتمامًا متزايدًا كطريقة لإنتاج الإيثيلين. عادةً ما تكون المحفزات الحرارية التي تعمل عند درجات حرارة عالية مطلوبة لـالتفعيل في الإيثان. في هذه الدراسة، نصف درجة حرارة منخفضة (مسار التحفيز الضوئي لـ ODHE، باستخدامكمؤكسد. يتم تحضير محفز ضوئي يحتوي على جزيئات نانوية بين المعادن PdZn مدعومة على ZnO، مما يوفر معدل إنتاج الإيثيلين منمعاختيارية الإيثيلين تحت إشعاع 365 نانومتر. عندما نستخدم تغذية غاز الصخر الزيتي المحاكية، يحقق نظام ODHE الضوئي تحويل الإيثان بنسبة تقارب 20% مع الحفاظ على اختيارية الإيثيلين بحواليتلعب الواجهة القوية بين جزيئات PdZn المعدنية الداعمة و ZnO دورًا حاسمًا في تنشيط الإيثان من خلال آلية مارس-فان كريفيلن المدعومة بالضوء، تليها تجديد سريع للأكسجين الشبكي لإكمال دورة التفاعل. تُظهر نتائجنا أن عملية ODHE الضوئية هي طريقة واعدة لتحويل الألكانات إلى ألكينات تحت ظروف معتدلة.
الإيثيلين هو واحد من أكثر المواد الخام استخدامًا في صناعة الكيمياء اليوم. حاليًا، يُعتبر التكسير بالبخار عند درجات حرارة عالية للهيدروكربونات الكبيرة المستمدة من النافثا الطريقة الرئيسية لإنتاج الإيثيلين. الاكتشاف الأخير لاحتياطيات كبيرة من الغاز الصخري، الذي يحتوي على حواليالإيثان )، أثار اهتمامًا في إزالة الهيدروجين من الإيثان كطريقة بديلة لإنتاج الإيثيلين يبحث الباحثون الآن بنشاط عن مواد وتقنيات تحفيزية جديدة قادرة على تحويل الإيثان إلى الإيثيلين بكفاءة وانتقائية.
في السنوات الأخيرة، تم إحراز تقدم كبير نحو اكتشاف محفزات فعالة لإزالة الهيدروجين من الإيثان، مع المحفزات المستمدة من الزيوليت والمعتمدة على الفاناديوم تحظى باهتمام كبير. نظرًا لأن طاقة الرابطة فيمرتفع بشكل استثنائي (عادةً ما تتطلب ظروف تفاعل قاسية لتحقيق استخراج أول ذرة هيدروجين من الإيثان (الخطوة المحددة لمعدل التفاعل في إزالة الهيدروجين المباشرة من الإيثان). بالمقارنة مع إزالة الهيدروجين المباشرة للإيثان، فإن إزالة الهيدروجين المؤكسدة للإيثان (ODHE)، التي تستخدم مؤكسدًا (مثل، أو )، هو أكثر ملاءمة من الناحية الديناميكية الحرارية (على سبيل المثال، ) ويمكن أن تحقق كل من تحويلات الإيثان الجيدة وانتقائيات الإيثيلين المقبولة . ومع ذلك، لا تزال عملية ODHE الحرارية الكيميائية تتطلب تفاعلاً عالياً
درجات الحرارة (لتحقيق تحويل فعال للإيثان، مما يحفز البحث نحو عمليات ODHE البديلة ذات درجات الحرارة المنخفضة المدعومة بمصادر الطاقة المستدامة.
تحمل التحفيز الضوئي إمكانيات كبيرة لتفعيل الجزيئات الصغيرة المدفوعة بالطاقة الشمسية مثل، و تحت ظروف معتدلة. المحفزات الضوئية القائمة على أكاسيد المعادن، مثل ZnO ولديهم القدرة على توليد أكسجين شبكي مفعل عند الإضاءة، مما يتيح تفعيل الروابط الكيميائية الخاملة من خلال مسارات الأكسدة الضوئية التي تتوسطها الأكسجين الشبكي. على سبيل المثال،، و تظهر المحفزات الضوئية نشاطًا في اقتران الميثان الضوئي، والأكسدة الجزئية، والاحتراق، على التوالي. جميع هذه المحفزات تستخدم أنواع الأكسجين النشطة المتولدة ضوئيًا.مشتق منأو أكسجين الشبكة ZnO لـتنشيط الروابط. علاوة على ذلك، فإن إدخال جزيئات النانو المعدنية (سبائك معدنية) مع تفاعل مناسب بين المعدن والداعم يعزز نقل الشحنات بين الواجهات وتحويل المواد الماصة النشطة على السطح، مما يسرع من حركية التفاعل الحفاز.أفاد تانغ وآخرون أنحقق المحفز الضوئي أكسدة جزئية للميثان لإنتاج الميثانول والفورمالديهايد مع تحسين فعال لنقل الشحنة بواسطة أنواع الذهب والنحاس.. بينما التحفيز الضوئيلقد حظيت تفعيل الروابط في تحويل الميثان باهتمام كبير، لكن لم يتم إجراء أي بحث حتى الآن حول الأكسدة الضوئية للميثان لإنتاج الإيثيلين، مما يحفز على إجراء تحقيق مفصل.
هنا، قمنا بتخليق جزيئات نانوية بين المعادن من PdZn مدعومة علىكعامل حفاز ضوئي لـ ODHE معتحت إضاءة 365 نانومتر، قدم نظام تحفيز ضوئي جريان يحتوي على PdZn ZnOمعدل الإنتاج لـمعالانتقائية. كان هذا المستوى من الأداء متفوقًا بشكل كبير على أداء المحفزات الضوئية التي تحتوي على Pd أو غيرها من الجسيمات النانوية البينية على ZnO، بينما كانت أيضًا تتفوق على معظم عمليات ODHE الحرارية الكيميائية عالية الحرارة. تظهر دراساتنا الشاملة للتوصيف أن هناك الواجهة تعزز بشكل فعال توليد الضوء(من أكسيد الزنك الأكسجين الشبكي)، الذي بدوره ينشط رابطة في الإيثان. علاوة على ذلك،تفاعل دعم المعادن يسمح بنقل سريع للإلكترونات من أجل تقليل الديوكسجين بكفاءة وتجديد أكسجين الشبكة في ZnO. إن الجمع بين هذه العمليات يقلل بشكل كبير من طاقة التنشيط الظاهرة لعملية ODHE إلى فقط، مع تقديم تحويل الإيثان بنسبة تقاربحواليالانتقائية في الغاز الصخري المحاكى وإظهار الجدوى في الأكسدة الانتقائية لإزالة الهيدروجين من البروبان والبيوتان. تحدد النتائج التحفيز الضوئي كاستراتيجية واعدة للإنتاج الانتقائي للإيثيلين من الإيثان عند درجات حرارة منخفضة.
النتائج والمناقشة
تركيب وتوصيف محفزات PdZn-ZnO الضوئية
نمط حيود الأشعة السينية (XRD) للـ Pd المضافيظهر السلف في الشكل التوضيحي 1. يمكن تعيين جميع القمم إلى الهيدروزينكيت أحادي الميل،رقم 19-1458لم تُلاحظ أي قمم لأي من الأنواع المحتوية على البالاديوم، مما يشير إلى أن البالاديوم كان موزعًا بشكل كبير في العينة.أظهر المجهر الإلكتروني الناقل (TEM) وجود Pd المضافامتلكت هيكلًا يشبه النانو شيت، مع تأكيد التحليل الطيفي بالأشعة السينية المشتتة للطاقة (EDS) أن“، وتم توزيع Pd بشكل موحد في العينة (الشكل التكميلي 2). بعد التلدين عندفي تدفق ( في Ar) لمدة 4 ساعات، تم تحويل السلف إلىالعامل المساعد. كما هو موضح في نمط XRD (الشكل 1a)، يتكون عامل PdZn-ZnO من ZnO سداسي السطوح (رقم JCPDS 36-1451) وجزيئات نانوية PdZn بين فلزية رباعية السطوح (رقم JCPDS 06-0620).بعد إذابة دعم ZnO بحمض الهيدروكلوريك المخفف، تظهر جزيئات نانو PdZn المعزولة نمط XRD يتطابق جيدًا مع جزيئات النانو البينية المتوقعة PdZn (الشكل التكميلي 3). تحميل Pd فيتم تحديده على أنه، الذي كان قريبًا من القيمة الاسمية المتوقعة (2.0 وزناً مئوية) (الجدول التكميلي 1). صورة TEM الماسح ذات الحقل المظلم الحلقي بزاوية عالية (HAADF-STEM) وEDS أكدت خرائط العناصر وجود جزيئات نانوية بين معدنية من PdZn موزعة على جزيئات ZnO (الشكل 1ب، ج). حواف الشبكة مع مسافات من، و 0.22 نانومتر تت corresponded إلى، مستويات ZnO (101) و PdZn (101) على التوالي. للمقارنة، تتكون المحفزات الضوئية من ZnO النقي وجزيئات نانوية من Pd المدعومة على ZnO ( ) تم إعدادها. الهيكل، الشكل، والمساحة السطحية المحددة لـ ZnO وكانت المحفزات الضوئية مشابهة لـ (الشكل التوضيحي 4 إلى 6).
تظهر السطح البلوري (100) لـ PdZn ترتيبًا بين الطور لعموديات الذرات من Pd و Zn وتحتوي على مستويات (001) و (010) (الشكل 1d). صورة HAADF-STEM المصححة للانحراف لجزيء نانو PdZn (الشكل 1e) فيتظهر مصفوفات مستطيلة مرتبة بشكل عالي مع أعمدة متناوبة من الذرات الساطعة والداكنة. نمط تحويل فورييه السريع (FFT) يتوافق مع نتائج المحاكاة لجزيئات نانوية من PdZn في اتجاه [010] (الشكل التكميلية 7). يقدم ملف الكثافة المقابل نمط تذبذب دوري في اتجاهين متعامدين يتوافقان مع [001] (الشكل 1f). كانت التكوينات الذرية المنتظمة لذرات Pd وZn في الجزيء النانوي من PdZn واضحة أيضًا في الخرائط العنصرية المقابلة (الشكل 1g)، مما يؤكد بشكل أكبر وجود جزيئات نانوية من PdZn..
تقييم أداء التحفيز الضوئي لعملية الأكسدة الانتقائية للهدروجين
تم إجراء اختبارات ODHE الضوئية المحفزة باستخدام مفاعل ضوئي مستمر مصنوع في المنزل مزود بمصباح LED بطول موجي 365 نانومتر كمصدر للضوء (انظر الطرق للحصول على تفاصيل التجربة). مزيج من ( في ) و فيمع معدل تدفق إجمالي قدرهتم تقديمه كغاز تغذية. الشكل 2أ والجدول التكميلي 2 يوضحان التحفيز الضوئيمعدل الإنتاج والانتقائية لـوسلسلة من عينات المرجع. أظهر PdZn-ZnO معدل الإنتاج لـمع انتقائية الإيثيلين لـلم يتم تشكيل أي منتجات سائلة تحتوي على الكربون، مثل الميثانول والإيثانول، خلال التفاعل الضوئي التحفيزي (الشكل التوضيحي 8). تم تحديد الجرعة المثلى من المحفز الضوئي والتحميل الاسمي للبلاتين (Pd) لتكون 5.0 ملغ و، على التوالي (الشكل التكميلي 9 إلى 11). تم تحسين درجة حرارة التكليس للسابقة لتكون (الشكل التوضيحي 12 و 13). الـمرجع تم تسليمهمعدل الإنتاج لـمعاختيارية الإيثيلين، التي هي أقل بكثير منيجب أن نلاحظ أنه بالنسبة لـ ZnO النقي، فقط وآثار تم توليدها، دون ملاحظة أي تحسين واضح لمزيج فيزيائي من ZnO مع جزيئات نانوية من PdZn (المشار إليها باسم PdZn-ZnO-mix، الشكل التكميلي 14). كما قمنا بتحضير جزيئات نانوية بين معدنية أخرى (AgZn، AuZn، PtZn، CuZn) مدعومة على ZnO (المشار إليها باسمو Cu) باستخدام طرق مشابهة لتلك المستخدمة في التحضير (الشكل التوضيحي الإضافي 15). ومع ذلك، كان المنتج الرئيسي لجميع هذه المحفزات الضوئية. بالإضافة إلى ذلك، تحتوي المحفزات التي تحتوي على جزيئات نانوية من PdZn على دعائم من أكاسيد معدنية أخرى، بما في ذلك، و تم التحضير (الشكل التوضيحي الإضافي 16).أفضل أن يتم الأكسدة بشكل مفرطإلىمع انخفاضانتقائية. PdZn-، و PdZn أظهر نشاطًا ضئيلًا تحت نفس ظروف التفاعل. من الواضح أن دعم ZnO شارك بنشاط في التحفيز الضوئي لعملية ODHE علىتشير النتائج أعلاه إلى أن جزيئات النانو البينية PdZn و ZnO والاتصال السطحي بين PdZn و ZnO كانت ضرورية للأداء الفوتوكاتاليتي المتميز.
تظهر الشكل 2ب أنكان للنسبة تأثير قوي على النشاط والانتقائيةلتحويل الإيثان إلى الإيثيلين. الـانخفضت الانتقائية من حواليإلىكـ ( في العربية ) / ( تم تغيير نسبة الغاز المدخل منإلىمعدل التدفق الكليمعدل الإنتاج لـتبع ذلك علاقة من نوع البركان، مع تحقيق أعلى معدل عند نسبة غاز التغذيةتم بعد ذلك دراسة تأثير معدل التدفق الكلي عندنسبة (الشكل التوضيحي 17). الـمعدل الإنتاج زاد تدريجياً منإلى
الشكل 1 | التوصيف الهيكلي لـ PdZn-ZnO. أ أنماط XRD. الإدراج: الهيكل البلوري لـ PdZn. ب صورة HAADF-STEM. ج خرائط العناصر بالأشعة السينية المشتتة للطاقة. د الإسقاط في اتجاه [010] لـ PdZn الرباعي. تمثل الكرات الصفراء والزرقاء ذرات Zn وPd، على التوالي. هـ HAADF-STEM مصحح الانحرافات.
صورة. إدراج: مخطط لبنية PdZn المعدنية. ف ملفات شدة تم قياسها من (هـ). ج صورة HAADF-STEM مصححة للانحراف وخرائط العناصر بدقة ذرية المقابلة. ، تصل إلى حد أقصى منالانتقائية إلىظل فوقتحت هذه ظروف التدفق. لرد الفعل الدفعي (معدل التدفق )، تم تحقيق أفضل أداء بعد حوالي 180 ثانية من الإشعاع ( تحويلالإنتاج، واختيارية الإيثيلين، الشكل التوضيحي التكميلي 18)، مع الوقت القصير للوصول إلى الأمثل بسبب استنفادفي مفاعل الدفعة. عند تركيزات أعلى من المتفاعلات، أظهر معدل إنتاج الإيثيلين زيادة كبيرة، حيث وصل إلىومن الجدير بالذكر أن انتقائية الإيثيلين أظهرت تراجعًا تدريجيًا منإلىمع زيادة تركيز المتفاعلات (الشكل التكميلي 19). وهذا يشير إلى أهمية إيجاد توازن بين معدل تكوين المنتج والانتقائية. خلال اختبار استقرار ضوئي مستمر لمدة 12 ساعة تحت ظروف التفاعل المحسّنة، كانت معدل الإنتاج لـفوقتأرجح حولدون أي تعطيل واضح وانتقائية مستقرة للإيثيلين تبلغ حوالي 92% (الشكل 2c). أظهر المحفز المستهلك تقريبًا عدم وجود تغييرات هيكلية كما تم التأكيد بواسطة
كما هو موضح في الشكل 2d والجدول التكميلي 3، فإن أداء التحفيز الضوئي لـ ODHEكان متفوقًا على المحفزات الحرارية التمثيلية المبلغ عنها حتى الآن عند النظر في المعلمات الثلاث الرئيسية للتفاعل: درجة الحرارة،معدل الإنتاج، والانتقائية. علاوة على ذلك، تم تطويره أظهر النظام الضوئي الحفاز أيضًا أداءً استثنائيًا في إزالة الهيدروجين المؤكسد للبروبان (معدل إنتاج البروبين منمعاختيارية البروبين) والبيوتان (معدل إنتاج البيوتينمعاختيارية البيوتين) (الشكل التوضيحي 24). بالإضافة إلى ذلك، من خلال استبدال غاز الإيثان المدخل بغاز صخري محاكى (، متوازن مع Ar )معدل الإنتاج حواليتم تحقيق ذلك، مع حوالي 87% من اختيار الإيثيلين عند تحويل الإيثان بنسبة تقارب 20% (الشكل التكميلي 25).
الشكل 2 | أداء التحفيز الضوئي لـ PdZn-ZnO في عملية ODHE. أ اختبارات ODHE على PdZnZnO ومقارنة المحفزات الضوئية. شروط التفاعل: 5.0 ملغ من المحفز الضوئي،في العربية، . ب النشاط الضوئي المحفز عند معدل تدفق إجمالي من مع مختلفنسب غاز التغذية. ج اختبار استقرار التحفيز الضوئي لمدة 12 ساعة من الإشعاع المستمر. د مقارنة الأداء مع المحفزات الحرارية المبلغ عنها. النشاط الضوئي المحفز عندتحت ظروف تبديل الضوء المظلم. مخططات أرهينيوس المقاسة في ظروف الظلام والضوء. شدة الضوءطيف الاستجابة الكمية المعتمد على الطول الموجي والانكسار المنتشر لـ ZnO وPdZn ZnO. تمثل أشرطة الخطأ الانحرافات المعيارية المستمدة من ثلاث قياسات مستقلة.
من الجدير بالذكر أن درجة حرارة السطح لـزاد المحفز الضوئي تحت إشعاع الضوء بسبب التأثيرات الضوحرارية، وبلغفي. (الشكل التوضيحي التكميلي 26a). كما هو موضح في الشكل 2e، لم يتم ملاحظة أي تشكيل ملحوظ للمنتج من خلال تسخين المفاعل كهربائيًا الذي يحتوي علىإلىفي الظلام. ومع ذلك، عند تعريض المحفز الضوئي للإشعاع الضوئي، فإنتم تعزيز معدل الإنتاج بشكل كبير عند نفس درجة الحرارة، وأظهر علاقة خطية مع شدة الضوء (الشكل التوضيحي 26b). تشير النتائج إلى أن عملية إزالة الهيدروجين المؤكسد للإيثان تتضمن آلية ضوئية محفزة. تم رسم مخططات أرهينيوس بناءً على معدلات تفاعل الإيثان ( ) عند درجات حرارة مختلفة موضحة في الشكل 2g. طاقة التنشيط الظاهرة لـ ODHE على تحت ظروف الإضاءة ) كان أقل بكثير مما هو عليه في الظلام ( )، مما يوحي بأن الفوتونات غيرت مسار التفاعل لـ ODHE وقللت بشكل كبير من حاجز طاقة التفاعل.القيم انخفضت تحت ظروف الإضاءة عند درجات حرارة أكبر منوالذي يُفسر من خلال العمر القصير لحاملات الشحنة الناتجة عن الضوء وزيادة استهلاك الأكسجين بسبب الأكسدة الزائدة للإيثان عند هذه درجات الحرارة العالية (الشكل التوضيحي 27 و28)الكفاءة الكمية الظاهرة المعتمدة على الطول الموجي (AQE) للتفاعل الضوئي ODHE على وُجد أنه ، و تحت الإشعاع أحادي اللون عندو 400 نانومتر، على التوالي (الشكل 2f). كانت هذه الاتجاهات تتطابق بشكل وثيق مع طيف الامتصاص لـ ZnO، مما يشير إلى أن التحفيز الضوئي لـ ZnO كان عملية رئيسية في إنتاج الإيثيلين.

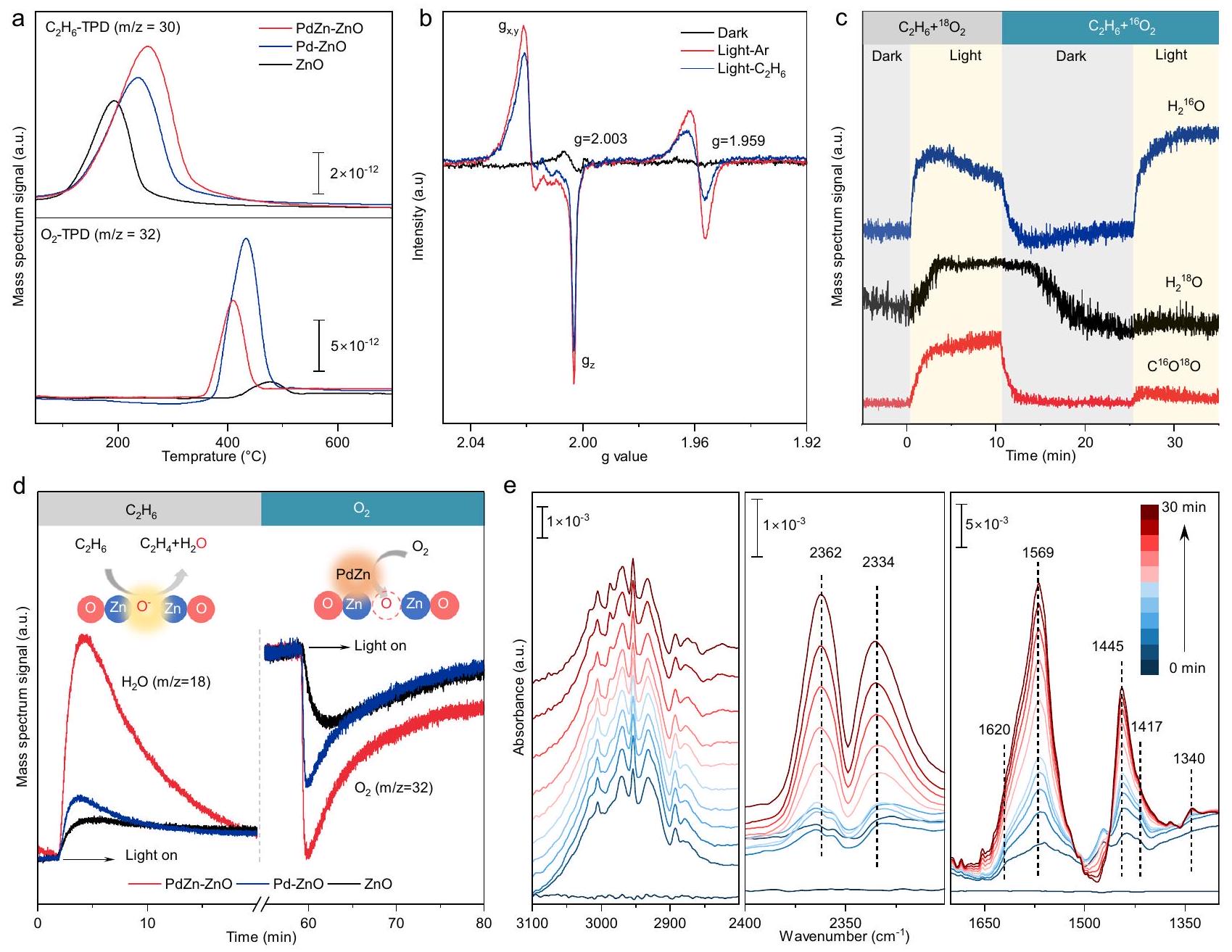

الشكل 3 | الدراسات الطيفية للوسطاء التفاعليين في عملية التحفيز الضوئي لـ ODHE. أ-TPD و-طيف TPD لـ و . ب طيف EPR في الموقع لـ ZnO المعرض للآرغون في الظلام وتحت إشعاع 365 نانومتر، والمعرض لـتحت إشعاع أقل من 365 نانومتر. ج تطور المتفاعلات والمنتجات خلال ODHE المراقب بواسطة MS عبر الإنترنت. بيانات MS عبر الإنترنت المحللة زمنياً لـإزالة الهيدروجين على و PdZn -ZnO. e تم جمع طيف FT-IR في الموقع من في غاز التغذية (3 حجم.مجلد، متوازن مع Ar ) في أوقات إشعاع مختلفة.
التحقيقات الميكانيكية
وعينتين مرجعيتين، ZnO وتم اختيارها لإجراء تحقيقات آلية إضافية. أولاً، تم إجراء تجارب إزالة الحرارة المبرمجة لـ و -TPD وتم إجراء (TPD) ، مع عرض النتائج في الشكل 3a. تظهر البيانات أنتم إزالته عند و على، و على التوالي. من الواضح أنيظهر درجة حرارة امتصاص أعلى من العينات الأخرى، مما يشير إلى امتصاص كيميائي قوي تجاه. علاوة على ذلك، يظهر أعلى قوة لامتصاص الإيثان عند مقارنته بـ، و (الشكل التوضيحي التكميلي 29). قد تكون هذه القدرة المعززة على امتصاص الإيثان عاملاً رئيسياً يساهم في تحسين أداء التحفيز الضوئي لعملية ODHE بشكل ملحوظ الذي تم ملاحظته في مقارنةً بنظرائها. في -ملفات TPD،تمت ملاحظة إشارات إزالة الامتصاص بين 400 ولجميع العينات الثلاث، والتي يمكن أن تُعزى إلى إزالة الأنواع الكيميائية الماصة للأكسجين.كانت سعة الامتزاز لـ ZnO النقي متواضعة، ويرجع ذلك إلى حد كبير إلىالامتزاز/التحلل على عيوب الأكسجين الناتجة عن معالجة العينة المسبقة في جو من الهيدروجينبمجرد إدخال جزيئات نانو Pd أو PdZn، زادت كمية الأكسجين الممتص بشكل كبير، مما يشير إلى أن Pd وPdZn كانتا المواقع النشطة السائدة لـالامتزاز والتنشيط.
الفصل الفعال ونقل حوامل الشحنة الناتجة عن الضوء أمران حاسمان للتفاعلات الضوئية التحفيزية.كان هناك انخفاض ملحوظ في شدة الفوتولومينسنس (PL) تحت تحفيز 365 نانومتر لـ و مقارنة مع ZnO النقي، مما يشير إلى تحسين فصل أزواج الإلكترونات والثقوب المثارة ضوئيًا (الشكل التكميلي 30). للتحقيق في ديناميات الحامل بشكل أعمق، تم تسجيل طيف الامتصاص العابر الزمني (TA) تحت تحفيز 365 نانومتر وتمت معاينته عند 520 نانومتر (الشكل التكميلي 31). أظهرت النتائج أن كان لديه أطول عمر لحاملات الشحنة الناتجة عن الضوء (187.3 بيكوثانية)، مقارنةً بـ ( 132.9 ps ) و ZnO ( 118.6 ps )، مما يؤكد كفاءة فصل الحامل المتفوقة. بعد ذلك، تم إجراء تجارب الرنين المغناطيسي الإلكتروني في الموقع (EPR) للتحقيق في عمليات نقل الإلكترون وتنشيط الإيثان. كما هو موضح في الشكل 3b والشكل التكميلي 32، تحت ظروف الظلام المعرضة لجو الأرجون، كل من ZnO وأظهر قمة EPR متناظرة بقيمة g تبلغ 2.003، والتي يمكن أن تُعزى إلى الإلكترونات غير المتزاوجة المحاصرة في فراغات الأكسجين.فيتحت إشعاع الضوء، قمة EPR متناظرة عندظهر لـ ZnO بسبب الإلكترونات المولدة ضوئيًا المحبوسة (أينوع. ومع ذلك، كانت إشارة الإلكترون المحبوس ضعيفة لـمما يشير إلى أن الإلكترونات المثارة في ZnO تم نقلها إلى جزيئات PdZn النانوية، التي عملت كمتقبلات للإلكترونات. بالإضافة إلى ذلك، إشارات EPR غير المتجانسة، وهي ، و ظهر أيضًا تحت الإشعاع، والذي يمكن أن يُنسب إلىالأنواع التي أنشأتها أكسيد الزنك الأكسجين (رسميًا ) حبس الثقوب الناتجة عن الضوء . بعد تغيير جو الاتصال من الأرجون إلى تحت ظروف الإضاءة، فإن شدة إشارة EPR المتعلقة بـانخفضت الأنواع بشكل كبير لكل من ZnO وPdZn ZnO، مما يشير إلى تفاعل السطحمعالجزيئات. توفر النتائج دليلًا قويًا على تعزيز نقل الإلكترونات بين السطح من ZnO إلى PdZn فيبينما يتم أيضًا تحديد الدور الحاسم للسطح الناتج عن الضوءمشتق من أكسجين الشبكة فيتفعيل.
تم استخدام تجارب تتبع وسم نظائر الأكسجين لاستكشاف الدور الرئيسي للأكسجين الشبكي في عملية التحفيز الضوئي لتفاعل الأكسدة الهيدروجينية. توضح الشكل 3 ج نتائج الـتجارب النظائر، مع استخدام مطياف الكتلة (MS) عبر الإنترنت للكشف عن-منتجات تحتوي على ODHE (انظر الطرق لمزيد من التفاصيل). أولاً، خليط غازي يحتوي على و تم تغذيته إلى المفاعل في الظلام لإزالة الشوائب الغازية المتبقية في غرفة التدفق. عند تعرضه للإشعاعإشارات قوية بسبب و تمت ملاحظتها تؤكد أن الأكسجين الشبكي السطحي ) على ZnO كان موقعًا نشطًا لإنتاج الماء وتحويل الإيثان خلال عملية التحفيز الضوئي ODHE. وقد تم تأكيد هذه النتيجة بشكل أكبر بواسطة تجارب تتبع – (الشكل التكميلي 33)، حيثكان قد تم دمجه مسبقًا في شبكة ZnO لـ. بعد 10 دقائق من الإضاءة، تم إيقاف الضوء وتغيير الجو إلى خليط غازي من و كشففي منتجات الغاز المحتوية على الأكسجين ) أكد أن منتغذية مُجددةخلال فترة الإشعاع الأولى وكان بإمكانه المشاركة في تفاعل ODHE التالي. وقد تم تأكيد هذه العملية لتجديد الأكسجين الشبكي أيضًا من خلال تأثير تبادل نظائر الأكسجين الناتج عن الضوء بينو PdZn-ZnO (الشكل التوضيحي التكميلي 34).
طيف الكتلة عبر الإنترنت مع تحليل زمني لـإزالة الهيدروجين علىثم تم جمع ZnO (الشكل 3d). تم إدخال تدفق غاز الإيثان أولاً إلى المفاعل، معتم الكشف عن الإشارة لجميع المحفزات الضوئية تحت إشعاع الضوء نتيجة لاستهلاك الأكسجين الشبكي وتوليد على ZnO خلال تفاعل ODHE. ثم تم إيقاف الضوء وتغيير الجو إلىلفترة من الزمن. عندما تم تشغيل الضوء مرة أخرى، كانت الإشارة لـفي الطور الغازي تدهور، مما يدل على استهلاكلملءالمواقع.أظهر أعلى إشارات توليد الماء واستهلاك الديوكسجين تحت الإضاءة، مما يشير إلى تعزيز كبير في عملية التحفيز الضوئي المعتمدة على الأكسجين الشبكي من خلال مسار مارس-فان كريفيلن (M-K) المعزز بالضوء. أي أن السطح المتولد بالضوءمن الأكسجين الشبكي على ZnO يستخرج ذرات الهيدروجين من الإيثان، مما يؤدي إلى تكوين جزيئات الماء و. ثم، الممتصة على PdZn يتم تنشيطها بواسطة الإلكترونات المثارة بالضوء، معجزيء ينفصل لملءوأكمل دورة التفاعل.
تم جمع طيف الأشعة تحت الحمراء بتقنية تحويل فورييه (FT-IR) في الموقع للحصول على معلومات إضافية حول الوسطاء التفاعليين وآلية التفاعل (انظر الطرق للحصول على تفاصيل التجربة). كما هو موضح في الشكل 3e، ظهرت سلسلة من قمم الامتصاص علىفي غاز التغذية (، متوازن مع الأرجون ) تحت ظروف الإضاءة، مع زيادة تدريجية في شدة القمم مع مرور وقت الإشعاع. أاهتزاز انحنائي عندتم الكشف عن، مما يشير إلى وجود مجموعات هيدروكسيل الممتصة على السطح (OH) الناتج عن استخراج ذرة الهيدروجين من الإيثان على أكسجين الشبكة السطحية (أي الناتج عن الضوءمواقعقمم الامتصاص عند، جنبًا إلى جنب مع نطاق الامتصاص حوليمكن أن يتم تعيينه إلى و اهتزازات الشد الماصةالمتوسطاتالقمم في و تم تخصيصها لأنواع الكربوكسيل الممتصة (HCOOالأنواع المرتبطة بمنتجات الأكسدة الزائدة للإيثان، والتي تم إثباتها أيضًا بواسطة الغازتصل إلى ذروتها في و تظهر نتائج FT-IR تشكيل المواد الممتصة على السطح، و خلال ODHE.
هذه هي الوسائط المتوقعة لتفاعل الأكسجين الشبكي المدعوم بالضوء (بالإضافة إلى بعض الوسائط والمنتجات الثانوية المرتبطة بالأكسدة المفرطة للإيثان).
للحصول على فهم أفضل لعمليات نقل الإلكترون وحالات الانتقال التفاعلية (TS) التي تحدث عند الواجهة بين الجسيمات النانوية المعدنية (PdZn أو Pd) ودعم ZnO، تم إجراء حسابات نظرية الكثافة الوظيفية (DFT). تم بناء نموذجين وتحسينهما لمحاكاة هيكل و . أعنقود مدعوم على (المشار إليه بـ ) تم استخدامه لتمثيل بينماعنقود مدعوم على (المشار إليه بـ ) تم استخدامه لتمثيل كما هو موضح في الشكل 4a و 4d. أظهر مقارنة فرق كثافة الشحنة بين النموذجين أن إعادة توزيع الشحنة محلية في منطقة محدودة بالقرب من الواجهة بين جزيئات المعدن النانوية ودعامات ZnO (الشكل 4b و 4e). توقع تحليل شحنة بادير زيادة تراكم الشحنة ( ) على الـ العنقود (الشكل 4ج) مقارنة بـعنقود (، الشكل 4f)، مما يشير إلى أن نقل الإلكترونات من PdZn إلى ZnO قد زاد مقارنة بنقل الإلكترونات من Pd إلى ZnO. إن الطاقة المرتبطة الأعلى لإشارة Pd 3d فيمنكما يدل على حالة نقص الإلكترون بشكل أكثر وضوحًا المرتبطة بنقل الإلكترون على الواجهة (الشكل التكميلي 35). أظهرت حسابات DFT أيضًا أن هناك تشتت ونقل قوي للإلكترونات على الواجهة فيأسفر عن موضع مركز حزمة Pd d-band أكثر سلبية (-1.68 eV) مقارنة بـالشكل 4 جإن مركز حزمة d السلبية أكثر في حالة PdZn المدعوم يساهم في حالة مضادة للرابطة منخفضة الطاقة لم adsorbates الأكسجين، مما يؤدي إلى زيادة شغل مدارات d وضعف طاقة الامتصاص للـ adsorbates الأكسجين النشطة.. كان من المتوقع أن يكون هذا مفيدًا لعمليات تجديد الأكسجين الشبكي اللاحقة على ZnO المجاورة خلال ODHE.
ديناميكا التفاعل لتنشيط الديوكسجين وإزالة الهيدروجين من الإيثان إلى الإيثيلين على و تمت محاكاة ثم، وتظهر ملفات الطاقة في الشكل 4h. المعلومات الإضافية حول النماذج وقيم الطاقة ملخصة في الشكل التكميلي 36-37 والجدول التكميلي 4-5. طاقة الامتزاز لـعلى وُجد أنه أعلى بشكل ملحوظ ( -2.35 eV ) من ذلك على الأكسجين الممتص ) ثم ينفصل إلى ذرتين من الأكسجين ( )، مع حواجز التنشيط ( ) من 0.68 إلكترون فولت و 1.08 إلكترون فولت على و ، على التوالي. هذه النتائج تتماشى مع استهلاك الأكسجين السريع على تمت ملاحظته في قياس الطيف الكتلي عبر الزمن على الإنترنت (الشكل 3d). وُجد أن لديه 0.32 إلكترون فولت لـ-مدعومقطع الروابط في، TS2)، الذي كان أقل بمقدار 0.54 إلكترون فولت من مما يشير إلى أن تنشيط الإيثان كان مفضلًا من الناحية الحركية على. بعد ذلك، الـمنيتم استخراجه لتشكيل و على ZnO (TS3). ثم، و *H تتحد لتشكل (TS4) عبر مسارين محتملين، مع الأكسجين في القادمة من إما أكسجين الشبكة السطحية (مسار M-K) أو الأكسجين الثنائي المنفصل (مسار لانغموير-هينشلود، L-H). حواجز هذين المسارين على تم حسابها لتكون 0.71 إلكترون فولت و0.92 إلكترون فولت، على التوالي (الشكل التكميلي 38 و39)، مما يشير إلى أنالمسار مفضل حركياً.مسار يتركعلى ZnO و *O إضافية على PdZn، على التوالي، تليها عملية تجديد أكسجين الشبكة ZnO بين النوعين (TS5) معمنيعرض أكبرلكل من TS4 و TS5 مقارنة بـ (الشكل التكميلي 40 و 41 ). قمنا بمقارنة ملفات الطاقة للخطوتين التفاعليتين الأوليين (TS1 و TS2 كخطوات محتملة تحدد المعدل) مع نماذج تم بناؤها لنانوجزيئات بين المعادن الأخرى المعتمدة على البالاديوم على و أظهرت النتائج أنعرضت الأدنىلتفعيل الأكسجين واستخراج الهيدروجين من الإيثان، مما يثبت أدائها الاستثنائي في التحفيز الضوئي لعملية ODHE (الشكل التكميلي 42 و43).
استنادًا إلى النتائج المقدمة، نقترح آلية تفاعل محتملة للتفاعل الضوئي الانتقائي ODHE على PdZn-ZnO (الشكل 5). في البداية، يتم توليد أزواج الإلكترون-الثقب المثارة ضوئيًا في ZnO تحت إشعاع UV (365 نانومتر). يتم نقل الإلكترونات الناتجة عن الضوء في ZnO بكفاءة إلى جزيئات PdZn، مما ينشطإلى ذرات الأكسجين الممتصة. في هذه الأثناء، تصل الثقوب الناتجة عن الضوء إلى أكسجين الشبكة السطحية لـ ZnO لتكوينالذي ينشطقطع الروابط فيلتشكيل و . بعد ذلك، شق في *يؤدي إلى تشكيل *وجزيء ماء، كلاهما ينفصل عن المحفزات الضوئية (متركاً على سطح ZnO). أخيرًا، الـيمتلئ بواسطة ذرة الأكسجين الممتصة التي تتدفق من مواقع PdZn.
باختصار، نبلغ عن أول مثال على التحفيز الضوئي الانتقائي لعملية ODHE معلإنتاج الإيثيلين. تم تحضير محفز ضوئي PdZn-ZnO، الذي يحتوي على جزيئات نانوية بين معدنية من PdZn، من خلال تقليل الهيدروجين الحراري لمادة تحتوي على Pd.السابقة. التفاعلات القوية لنقل الإلكترونات فيالواجهة تعزز توليد الضوء على السطحالمواقع النشطة على ZnO لتنشيط الروابط في الإيثان، مما يؤدي إلى تكوين الإيثيلين والماء. نقل الإلكترونات المثارة ضوئيًا من ZnO إلى PdZn سهل تفكك الديوكسجين، مما سمح بالتجديد السريع للأكسجين الشبكي لـ ZnO المستهلك في آلية مارس-فان كريفيلن.
كان للطاقة التنشيط الظاهرة لعملية التحفيز الضوئي ODHE على PdZn-ZnOتحت ظروف الإشعاع، أقل بكثير مما هو عليه في الظلام” ). الـيظهر المحفز الضوئي معدل إنتاج الإيثيلين بـمعالانتقائية عند درجات الحرارة المنخفضة، مع عرض معدلات إنتاج عالية من الألكينات وانتقائية للتحلل الضوئي للديهدروجين من البروبان والبيوتان، بالإضافة إلى الإيثان في غاز الصخر الزيتي المحاكى. تقدم هذه الدراسة تحقيقًا لإثبات المفهوم، مما يدل على أن التحلل الضوئي للديهدروجين عند درجات الحرارة المنخفضة هو نهج جديد واعد لإنتاج الإيثيلين من المواد الخام المحتوية على الإيثان. يجب توجيه الأعمال المستقبلية نحو تحقيقات أكثر تفصيلًا لآليات التفاعل وأيضًا تصميمات المفاعلات لتكبير العملية.
طرق
المواد الكيميائية
و تم الحصول عليها من شركة بكين إينوكيم للعلوم والتكنولوجيا المحدودة.، تم شراؤها من شركة شنغهاي علاء الدين للتكنولوجيا الحيوية المحدودة.وغاز متفاعل مختلط (، متوازنة مع Ar) تم شراؤها من شركة بكين بييانغ المتحدة للغاز المحدودة.الأكسجين المعلم نظائريًاتم الحصول عليه من شنغهاي ماوتو و . تشير الكرات الحمراء والزرقاء إلى مدى استنفاد الشحنة (إيجابي) والتراكم (سلبي). g كثافة حالات ذرات البالاديوم في و تشير الخطوط الأفقية المتقطعة إلى مركز حزمة d المحسوب.يمثل الطاقة بالنسبة لمستوى طاقة فيرمي.رسمت مخططات الطاقة الكامنة المحسوبة لـ ODHE إلىعلى و .
الشكل 5 | آلية التفاعل المقترحة للتفاعل الضوئي التحفيزي ODHE على PdZn-ZnO. زوايا الروابط وأطوال الروابط ليست دقيقة في المخطط. الكرة الرمادية تمثل جزيء نانو PdZn.
شركة الغازات المتخصصة المحدودة. تم استخدام جميع المواد دون مزيد من التنقية. تم استخدام الماء المقطر في تخليق جميع المحفزات.
تحضير المحفزات
(أ) PdZn-ZnO. مضاف إليه Pdسابقة (Pdتم تخليقه وفقًا لطريقة الترسيب المشترك المستخدمة بشكل شائع. عادةً، لتحضير محفز PdZn – ZnO،وكمية معينة منتم إذابتها في ماء منزوع الأيونات. ثم،تم إضافة المحلول المائي قطرة قطرة إلى محلول ملح المعدن تحت التحريك المستمر. بعد ذلك،تم جمع المنتج عن طريق الطرد المركزي، وغسله عدة مرات بالماء المنزوع الأيونات، ثم تم تجفيفه بالتجميد تحت الفراغ لمدة 24 ساعة. بعد ذلك،تم تسخين السلفإلىتحت تدفق ( )، ثم تم الاحتفاظ بـ لمدة 4 ساعات. (ب)طرق التخليق لـالمحفزات الضوئية (مع النسبة المئوية للكتلة من الذهب، أو بالنسبة لـ ZnO ) ، كانت مشابهة لتلك الموصوفة لـ محفز ضوئي مع استخدام أملاح معادن مختلفة حسب الحاجة. (ج) ZnO وتم تحضير محفز ZnO النقي عن طريق التسخينفيفيتدفق لمدة 4 ساعات. تم تحضير محفزات Pd-ZnO باستخدام طريقة التخفيضمع ZnO المُركب أعلاه كمواد خام، تليها التسخين في تيار من غاز النيتروجين عندلمدة 4 ساعات. (د) مزيج PdZn-ZnO. لتحضير عينة مزيج PdZn-ZnO، 1.0 جرام منتم غمره في 30 مل من محلول مائيتمت معالجة ZnO لمدة 10 دقائق لإذابته، ثم تم جمعه بواسطة الطرد المركزي وغسله بالماء. تم dispersing جزيئات PdZn الناتجة في 100 مل من الماء المنزوع الأيونات مع 980 ملغ من ZnO. تم تسليط الموجات فوق الصوتية على تشتت PdZn وZnO لمدة 30 دقيقة، تلاها التجفيف بالتجميد لمدة 24 ساعة.
توصيفات
تم فحص هيكل وبلورية المحفزات الضوئية بواسطة حيود الأشعة السينية (XRD، Bruker AXSD8 Advance، ألمانيا). كانت جهاز الحيود مزودًا بـمصدر الإشعاعيعمل عند 40 كيلو فولت. تم دراسة الأشكال والهيكل للمواد المحفزة للضوء باستخدام المجهر الإلكتروني الناقل (JEM، 2100 F، اليابان). تم إجراء صور HAADF-STEM المصححة للانحراف والتحليلات الطيفية عالية الدقة باستخدام مجهر إلكتروني بدقة ذرية JEOL JEM-ARM300F مع مصحح مزدوج للانحراف الكروي.
تم جمع منحنيات امتصاص/إزالة النيتروجين عند 77 كلفن على جهاز Quadrasorb SI MP. تم حساب المساحات السطحية المحددة عبر طريقة BET. تم تسجيل طيف الانعكاس المنتشر على مطياف Cary 7000 (Agilent) المزود بملحق كرة متكاملة. تم تحديد المحتويات الفعلية للمعادن في المحفزات الضوئية بواسطة مطيافية الانبعاث الضوئي البلازمي المقترن بالحث (ICP-OES، Varian 710). تم الحصول على ملفات تعريف -TPD باستخدام جهاز AutoChem II 2920 (شركة ميكروميريتكس). تم معالجة المحفزات الضوئية (200.0 ملغ) مسبقًا تحت جو من الهيليوم لمدة 60 دقيقة عندباستخدام معدل تسخين. بعد التبريد إلى تم الاحتفاظ بالعوامل الضوئية تحت بيئة نقيةالجو لمدة 60 دقيقة لتحقيق تشبع الامتزاز. بعد ذلك، تم الاحتفاظ بالعينات تحت تدفق الهيليوم ( ) لمدة 60 دقيقة لإزالة أي إيثان تم امتصاصه جسديًا بشكل ضعيف. أخيرًا، الـتم إجراء اختبارات TPD عن طريق تسخين المحفزات الضوئية منإلىبمعدل تسخين قدرهتحت غاز حامل الهيليوم، مع استخدام مطياف الكتلة لـالكشف. طريقة الاختبار لـكانت تجارب -TPD مشابهة لـ-اختبارات TPD، باستثناء أن يتم استبداله بـ .
تم جمع طيف EPR في الموقع على جهاز طيفي Bruker E500. قبل اختبارات EPR، تم معالجة المحفز مسبقًا في لمدة ساعتين تحت تدفق الأرجون لإزالة أي مواد مت adsorb على السطح. تم تحميل 50.0 ملغ من المحفز الضوئي في أنبوب زجاجي وتم تفريغه. ثم، الأرجون أوتم إدخال الغاز في أنبوب EPR. تم تسجيل طيف EPR في ظروف الظلام والضوء عند 110 كلفن.
تم إجراء تجارب قياس الطيف الكتلي عبر الزمن في مفاعل تدفق من الفولاذ المقاوم للصدأ ثابت السرير مصنوع يدويًا (الحجم ) مع نافذة من الكوارتز في الأعلى لتشعيع المحفزات الضوئية. تم ربط المفاعل بمطياف الكتلة (SPIMS 2000، طيف الكتلة Hexin). قبل كل اختبار، تم توزيع 20.0 ملغ من المحفز الضوئي بشكل متساوٍ على غشاء من ألياف الزجاج، ثم تم معالجة الغشاء المعدل مسبقًا في تدفق غاز الأرجون عند لمدة ساعتين لإزالة أي شوائب من الغشاء.
تم جمع بيانات مطيافية الأشعة تحت الحمراء بتقنية تحويل فورييه في الموقع (FT-IR) على جهاز مطياف FT-IR من طراز Bruker Vertex 70 V مزود بكاشف HgCdTe ضيق النطاق وغرفة تفاعل نقل (Harrick) متصلة بخط إخلاء.تم ضغط 5.0 ملغ من محفز PdZn-ZnO في قرص مدعوم ذاتيًا (بقطر 7.0 مم) ووضعه في غرفة النقل. في تجربة FT-IR في الموقع النموذجية، تم أولاً تطهير قرص المحفز بـلمدة 30 دقيقة لإزالة الشوائب الماصة على السطح. ثم، غاز التفاعل (3 حجم.مجلدمتوازن معتم إدخاله إلى الحجرة. بعد 30 دقيقة من امتصاص المتفاعل، تم تسجيل طيف FT-IR الخلفي. ثم تم جمع أطياف FT-IR أخرى كل دقيقة في جو التفاعل تحت الإضاءة من ليزر ديود مستمر بقوة 150 مللي واط (375 نانومتر)، الذي عمل كمصدر للضوء. تم تسجيل كل طيف من خلال متوسط 200 مسح تم جمعه بسرعة مسح تبلغ 40 كيلو هرتز ودقة.
قياسات النشاط الضوئي التحفيزي
تم إجراء اختبارات ODHE الضوئية في مفاعل تدفق ثابت مصنوع من الفولاذ المقاوم للصدأ ومخصص (الحجم ) مع نافذة من الكوارتز في الأعلى لتعرض الضوء (الشكل التوضيحي 44). عادةً ما يتم توزيع المحفز الضوئي (5.0 ملغ) بشكل متساوٍ على غشاء من ألياف الزجاج (واتمان، GE Healthcare Life Sciences، رقم الكتالوج 1823047) ثم يتم وضعه في المفاعل (بالتوازي مع نافذة الكوارتز). ثم، يتم إدخال غاز تفاعل يتكون من و ( فيبمعدل تدفق إجمالي قدرهتم إدخاله إلى المفاعل. بعد تطهيره لمدة 30 دقيقة لإزالة الهواء من المفاعل، تم استخدام مصباح LED بطول موجي 365 نانومتر (100 واط 365 نانومتر LED، شركة بكين بيرفكت لايت تكنولوجي المحدودة، PLS-LED100C) كمصدر للضوء لتحفيز التفاعل. تم تحليل عينات الغاز في المخرج باستخدام جهاز كروماتوغرافيا الغاز (Shimadzu GC-2014، شركة شيمادزو، اليابان) المزود بثلاث قنوات. قامت القناة الأولى بتحليل الهيدروكربونات في HP PLOT.عمود مع الهيليوم كغاز حامل وكاشف تأين اللهب (FID). القناة الثانية قامت بتحليل، وCO مع مزيج من ميكروبكيت هايسيب Q، H-N، وMolsieveالأعمدة باستخدام الهيليوم كغاز حامل وكاشف موصلية حرارية (TCD). القناة الثالثة تحللباستخدام ميكروبكيت هايسيب Q ومالسيفعمود معكغاز ناقل وكاشف TCD. بالنسبة لاختبار المفاعل الدفعي، تم استخدام مفاعل من نوع الدفعة (حجم = 56.0 مل). بعد إخلاء نظام التفاعل، تم إدخال غاز التفاعل (تم إدخال Ar ) المتوازن مع ) إلى المفاعل حتى وصل الضغط إلى 0.3 ميغاباسكال، بعد ذلك تم تعريض المحفز الضوئي لمصدر ضوء LED بطول موجي 365 نانومتر.
اليتم حساب الانتقائية وفقًا للمعادلة التالية.
أين و تمثل المولات من و في المنفذ، على التوالي. يتم حساب معدل التحويل بناءً على المنتجات وفقًا للمعادلة التالية.
أينيمثل عدد المولات منعند المدخل. يتم حساب توازن الكربون وفقًا للمعادلة التالية.
أينتمثل المولات من عند المخرج، على التوالي. تم حساب AQE وفقًا للمعادلة التالية.
أين (الإلكترونات) و (الفوتونات) تمثل عدد الإلكترونات المتفاعلة وعدد الفوتونات الساقطة، على التوالي. وفقًا للمعادلة الكيميائية , إلكترونات، حيث و تمثل المولات الناتجة و على التوالي. (الفوتونات) ، حيث ، و تمثل شدة الضوء (منطقة الإشعاع )، وقت الإشعاع ( ث ) وطاقة الفوتون (ج)، على التوالي. ، حيث ، و يمثل
ثابت بلانك، سرعة الضوء، وطول موجة الضوء أحادي اللون، على التوالي. شدة الضوء I عند أطوال موجية مختلفة (، ، و700 نانومتر) تم قياسه ليكون 51.3، 52.6،، و بواسطة مصباح زينون (مصباح 300 واط Xe، شركة بكين بيرفكتلايت تكنولوجي المحدودة، PLS-SXE300D) ومصفاة نطاق التمرير (الشكل التوضيحي التكميلي 45). نظرًا لأن درجة حرارة سطح المحفز كانت حوالي درجة حرارة الغرفة تحت إشعاع الضوء الأحادي اللون، لم يتم اعتبار مساهمة الحرارة الناتجة عن الإضاءة خلال اختبارات كفاءة الامتصاص الكمي.
التفاصيل الحاسوبية
تم إجراء حسابات مغناطيسية مستندة إلى المبادئ الأساسية باستخدام برنامج المحاكاة الأولية فيينا (VASP)تم اعتماد تقريب التدرج العام (GGA) في شكل بيردو-بورك-إرنزرهوف (PBE) وطاقة قطع تبلغ 700 إلكترون فولت لمجموعة الأساس الموجية.. أمونكهورست-باكتم استخدام الشبكة لأخذ عينات من مناطق بريلوان في حسابات الهيكل. تم وصف تفاعلات الأيونات والإلكترونات بواسطة طريقة الموجة المعززة بواسطة المشروع (PAW).معايير التقارب لتحسين الهيكل كانت قوة قصوى أقل منعلى كل ذرة بتغير في الطاقة أقل منتم وصف تصحيح DFT-D3 شبه التجريبي من خلال طريقة مخطط غريمي..
نظرًا لأن الوجوه الرئيسية المعرضة من ZnO كانت (101)، فإنتم استخدام النموذج في الحسابات. الـتم تصميم السطح بواسطةخلية وحدة تعتمد على هيكل أولي مع معلمات الشبكة. تم استخدام تجمع يحتوي على خمسة عشر ذرة من البالاديوم وخمسة عشر ذرة من الزنك لمحاكاة جزيء نانوي بين المعدني PdZn، بينماتم استخدام تجمع مكون من ثلاثين ذرة Pd لمحاكاة جسيم نانوي من Pd. ما سبق و تم وضع المجموعات علىسطح لتشكيل نماذج و ، على التوالي. نماذج مشابهة لـتم استخدامها لبناء، “، و .
لحساب حاجز الطاقة الحركية للتفاعلات الكيميائية، تم استخدام طريقة الصورة المتسلقة للحزام المرن المدفوع (CI-NEB) للبحث عن، مع معايير التقارب قوة أقل منتم حسابه باستخدام، حيث و يمثل طاقة الحالة الانتقالية والحالة الابتدائية.
توفر البيانات
تتوفر مجموعات البيانات التي تم إنشاؤها و/أو تحليلها خلال الدراسة الحالية من المؤلف المراسل عند الطلب المعقول. تم الاستلام: ((سيتم ملؤه من قبل طاقم التحرير)) تم القبول: ((سيتم ملؤه من قبل طاقم التحرير)) تم النشر عبر الإنترنت: ((سيتم ملؤه من قبل طاقم التحرير)) يتم توفير بيانات المصدر مع هذه الورقة.
References
Li, X., Pei, C. & Gong, J. Shale gas revolution: catalytic conversion of light alkanes to value-added chemicals. Chem 7, 1755-1801 (2021).
Melzer, D. et al. Design and synthesis of highly active MoVTeNb-oxides for ethane oxidative dehydrogenation. Nat. Commun. 10, 4012 (2019).
Yang, Z. et al. Coking-resistant iron catalyst in ethane dehydrogenation achieved through siliceous zeolite modulation. J. Am. Chem. Soc. 142, 16429-16436 (2020).
Xie, Z., Wang, X., Chen, X., Liu, P. & Chen, J. G. General descriptors for -assisted selective bond scission in ethane. J. Am. Chem. Soc. 144, 4186-4195 (2022).
Venegas, J. M., McDermott, W. P. & Hermans, I. Serendipity in catalysis research: boron-based materials for alkane oxidative dehydrogenation. Acc. Chem. Res. 51, 2556-2564 (2018).
Cavani, F., Ballarini, N. & Cericola, A. Oxidative dehydrogenation of ethane and propane: How far from commercial implementation? Catal. Today 127, 113-131 (2007).
Song, S. et al. A selective hybrid photocatalyst for oxidative coupling of methane to ethane with dioxygen. Nat. Catal. 4, 1032-1042 (2021).
Zhang, W. et al. High-performance photocatalytic nonoxidative conversion of methane to ethane and hydrogen by heteroatomsengineered . Nat. Commun. 13, 2806 (2022).
Song, H. et al. Direct and selective photocatalytic oxidation of to oxygenates with on cocatalysts/ ZnO at room temperature in water. J. Am. Chem. Soc. 141, 20507-20515 (2019).
Chen, X . et al. Photocatalytic oxidation of methane over silver decorated zinc oxide nanocatalysts. Nat. Commun. 7, 12273 (2016).
Parastaev, A. et al. Boosting hydrogenation via size-dependent metal-support interactions in cobalt/ceria-based catalysts. Nat. Catal. 3, 526-533 (2020).
Luo, L. et al. Binary Au-Cu reaction sites decorated ZnO for selective methane oxidation to oxygenates with nearly selectivity at room temperature. J. Am. Chem. Soc. 144, 740-750 (2022).
Xiong, P. et al. Zn-ion transporting, in situ formed robust solid electrolyte interphase for stable zinc metal anodes over a wide temperature range. ACS Energy Lett. 8, 1613-1625 (2023).
Zhang, F. et al. Catalytic activity of catalysts mediated by MgO promoter in hydrogenation of methyl acetate to ethanol. J. Energy Chem. 61, 203-209 (2021).
Ye, C. et al. PdZn intermetallic compound stabilized on nitrogen-decorated carbon hollow spheres for catalytic semihydrogenation of alkynols. Nano Res 15, 3090-3098 (2022).
Hu, M. et al. MOF-confined sub-2 nm atomically ordered intermetallic PdZn nanoparticles as high-performance catalysts for selective hydrogenation of acetylene. Adv. Mater. 30, 1801878 (2018).
Qiu, Y. et al. Construction of Pd-Zn dual sites to enhance the performance for ethanol electro-oxidation reaction. Nat. Commun. 12, 5273 (2021).
Zabilskiy, M. et al. Mechanistic study of carbon dioxide hydrogenation over Pd/ZnO-based catalysts: the role of palladium-zinc alloy in selective methanol synthesis. Angew. Chem. Int. Ed. 60, 17053-17059 (2021).
Huang, R. et al. Direct insight into ethane oxidative dehydrogenation over boron nitrides. ChemCatChem 9, 3293-3297 (2017).
Sarkar, B. et al. nanoclusters decorated on nanorods for oxidative dehydrogenation of ethane to ethylene. Appl. Catal., B 217, 637-649 (2017).
Luongo, G. et al. Highly selective oxidative dehydrogenation of ethane to ethylene via chemical looping with oxygen uncoupling through structural engineering of the oxygen carrier. Adv. Energy Mater. 12, 2200405 (2022).
Solsona, B., Concepción, P., Hernández, S., Demicol, B. & Nieto, J. M. L. Oxidative dehydrogenation of ethane over mixed oxides catalysts. Catal. Today 180, 51-58 (2012).
Dang, D., Chen, X., Yan, B., Li, Y. & Cheng, Y. Catalytic performance of phase-pure composite for oxidative dehydrogenation of ethane. J. Catal. 365, 238-248 (2018).
Ykrelef, A. et al. Mixed oxide TiSiO prepared by non-hydrolytic Xerogel method as a diluter of nickel oxide for the oxidative dehydrogenation of ethane. Catal. Today 299, 93-101 (2018).
Zhang, Z. et al. Low-temperature, highly selective, highly stable -foam catalyst for the oxidative dehydrogenation of ethane. Catal. Sci. Technol. 8, 4383-4389 (2018).
Lu, J. et al. Coking-and sintering-resistant palladium catalysts achieved through atomic layer deposition. Science 335, 1205-1208 (2012).
Kong, L. et al. Oxidative dehydrogenation of ethane to ethylene over Mo-incorporated mesoporous SBA-16 catalysts: The effect of dispersion. Appl. Catal. A-Gen. 510, 84-97 (2016).
Kong, L. et al. Template-induced mesoporous oxide catalysts with tuned physico-chemical properties for the oxidative dehydrogenation of ethane. Chem. Eng. J. 452, 139247 (2023).
Cao, X. et al. Boron and nitrogen co-doped porous carbon nanospheres for oxidative dehydrogenation of ethane to ethylene. Carbon 197, 120-128 (2022).
Yan, P., Chen, Y. & Cheng, Y. Industrially potential MoVNbTeOx@FoamSiC structured catalyst for oxidative dehydrogenation of ethane. Chem. Eng. J. 427, 131813 (2022).
Shi, R. et al. Structural disorder in higher-temperature phases increases charge carrier lifetimes in metal halide perovskites. J. Am. Chem. Soc. 144, 19137-19149 (2022).
Yang, Y. et al. Oxygen-vacancy-induced activation and electron-hole migration enhance photothermal catalytic toluene oxidation. Cell Rep. Phys. Sci. 3, 101011 (2022).
Rieboldt, F., Bechstein, R., Besenbacher, F. & Wendt, S. Vicinal rutile surfaces and their interactions with . J. Phys. Chem. C. 118, 3620-3628 (2014).
Xu, C. et al. Nanostructured materials for photocatalysis. Chem. Soc. Rev. 48, 3868-3902 (2019).
Kang, L. et al. Photo-thermo catalytic oxidation over a -supported platinum catalyst. Angew. Chem. Int. Ed. 59, 12909-12916 (2020).
Zhu, S. et al. Efficient photooxidation of methane to liquid oxygenates over ZnO Nanosheets at atmospheric pressure and near room temperature. Nano Lett. 21, 4122-4128 (2021).
Shoji, S. et al. Photocatalytic uphill conversion of natural gas beyond the limitation of thermal reaction systems. Nat. Catal. 3, 148-153 (2020).
Wang, P. et al. Selective photocatalytic oxidative coupling of methane via regulating methyl intermediates over metal/ZnO nanoparticles. Angew. Chem. Int. Ed. 62, e202304301 (2023).
Wang, W. et al. Photocatalytic C-C coupling from carbon dioxide reduction on copper oxide with mixed-valence copper(I)/copper(II.).J. Am. Chem. Soc 143, 2984-2993(2021).
Bian, Y., Kim, M., Li, T., Asthagiri, A. & Weaver, J. F. Facile dehydrogenation of ethane on the surface. J. Am. Chem. Soc. 140, 2665-2672 (2018).
Zhang, R. et al. Photocatalytic oxidative dehydrogenation of ethane using as a soft oxidant over catalysts to and syngas. ACS Catal. 8, 9280-9286 (2018).
Ye, L., Duan, X. & Xie, K. Electrochemical oxidative dehydrogenation of ethane to ethylene in a solid oxide electrolyzer. Angew. Chem. Int. Ed. 60, 21746-21750 (2021).
He, Y. et al. In situ identification of reaction intermediates and mechanistic understandings of methane oxidation over hematite: a combined experimental and theoretical study. J. Am. Chem. Soc. 142, 17119-17130 (2020).
Luo, M. et al. PdMo bimetallene for oxygen reduction catalysis. Nature 574, 81-85 (2019).
Lee, B.-H. et al. Supramolecular tuning of supported metal phthalocyanine catalysts for hydrogen peroxide electrosynthesis. Nat. Catal. 6, 234-243 (2023).
Wang, P. et al. Efficient photocatalytic aerobic oxidation of bisphenol A via gas-liquid-solid triphase interfaces. Mater. Today Energy 23, 100908 (2022).
Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169-11186 (1996).
Kresse, G. & Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15-50 (1996).
Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865-3868 (1996).
Monkhorst, H. J. & Pack, J. D. Special points for Brillouin-zone integrations. Phys. Rev. B 13, 5188-5192 (1976).
Blöchl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953-17979 (1994).
Grimme, S., Antony, J., Ehrlich, S. & Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 132, 154104 (2010).
Harl, J., Schimka, L. & Kresse, G. Assessing the quality of the random phase approximation for lattice constants and atomization energies of solids. Phys. Rev. B 81, 115126 (2010).
Henkelman, G., Uberuaga, B. P. & Jónsson, H. A climbing image nudged elastic band method for finding saddle points and minimum energy paths. J. Chem. Phys. 113, 9901-9904 (2000).
Henkelman, G. & Jónsson, H. Improved tangent estimate in the nudged elastic band method for finding minimum energy paths and saddle points. J. Chem. Phys. 113, 9978-9985 (2000).
شكر وتقدير
يود المؤلفون أن يعبروا عن امتنانهم للدعم المالي من البرنامج الوطني الرئيسي للبحث والتطوير في الصين (2023YFA1507201)، ومؤسسة العلوم الطبيعية الوطنية في الصين (51825205، 52120105002، 22272190، 22088102)، ومؤسسة بكين للعلوم الطبيعية (2222035)، ومشروع الأكاديمية الصينية للعلوم للعلماء الشباب في البحث الأساسي (YSBR-004)، وصندوق التعاون DNL، الأكاديمية الصينية للعلوم (DNL202016)، وجمعية تعزيز الابتكار للشباب في الأكاديمية الصينية للعلوم. كما تعترف GINW بالدعم المالي من الجمعية الملكية Te Apārangi (لمنحة بحثية من جيمس كوك)، ومعهد ماكديارميد للمواد المتقدمة وتكنولوجيا النانو، وصندوق التعليم في مجال الطاقة في نيوزيلندا. يود المؤلفون أن يشكروا يويرو وو من مختبر شياينجيا.www.shiyanjia.com) للحصول على المساعدة في تجارب TPD.
مساهمات المؤلفين
قام R.S. و T.Z. بالإشراف على المشروع. قام P.W. بتصور فكرة المشروع وأجرى تخليق المحفز، والتوصيف، واختبارات التحفيز الضوئي. شارك X.Z. في معالجة البيانات لحسابات DFT. ساعد J.Z. و R.S. في تحليل البيانات. كتب P.W. المخطوطة. قام R.S. و G.I.N.W. و J.T. و T.Z. بمراجعة المخطوطة. ناقش جميع المؤلفين النتائج وعلقوا على المخطوطة في جميع المراحل.
يجب توجيه المراسلات والطلبات للحصول على المواد إلى رن شي أو تيروي زانغ.
معلومات مراجعة الأقران تشكر مجلة Nature Communications ليانغ وانغ والمراجعين الآخرين المجهولين على مساهمتهم في مراجعة الأقران لهذا العمل. يتوفر ملف مراجعة الأقران.
المختبر الرئيسي للتحويل الضوئي والمواد البصرية، المعهد الفني للفيزياء والكيمياء، الأكاديمية الصينية للعلوم، بكين 100190، الصين.مركز علوم المواد وهندسة الإلكترونيات الضوئية، جامعة الأكاديمية الصينية للعلوم، بكين 100049، الصين.مختبر البلورات الوظيفية، المعهد الفني للفيزياء والكيمياء، الأكاديمية الصينية للعلوم، بكين 100190، الصين.مدرسة العلوم الكيميائية، جامعة أوكلاند، أوكلاند 1142، نيوزيلندا.قسم الهندسة الكيميائية، كلية لندن الجامعية، لندن WC1E 7JE، المملكة المتحدة.مركز الحفز الصناعي، قسم الهندسة الكيميائية، جامعة تسينغhua، بكين 100084، الصين. البريد الإلكتروني:shirun@mail.ipc.ac.cn; tierui@mail.ipc.ac.cn
The selective oxidative dehydrogenation of ethane (ODHE) is attracting increasing attention as a method for ethylene production. Typically, thermocatalysts operating at high temperatures are needed for activation in ethane. In this study, we describe a low temperature ( ) photocatalytic route for ODHE, using as the oxidant. A photocatalyst containing PdZn intermetallic nanoparticles supported on ZnO is prepared, affording an ethylene production rate of with ethylene selectivity under 365 nm irradiation. When we employ a simulated shale gas feed, the photocatalytic ODHE system achieves nearly 20% ethane conversion while maintaining an ethylene selectivity of about . The robust interface between the PdZn intermetallic nanoparticles and ZnO support plays a crucial role in ethane activation through a photo-assisted Mars-van Krevelen mechanism, followed by a rapid lattice oxygen replenishment to complete the reaction cycle. Our findings demonstrate that photocatalytic ODHE is a promising method for alkane-to-alkene conversions under mild conditions.
Ethylene is one of the most widely used feedstocks in the today’s chemical industry. Currently, high-temperature steam cracking of large hydrocarbons derived from naphtha is the primary method for producing ethylene. The recent discovery of large reserves of shale gas, which contains about ethane ( ), has sparked interest in ethane dehydrogenation as an alternative method for producing ethylene . Researchers are now actively seeking new catalytic materials and technologies capable of efficiently and selectively converting ethane to ethylene.
In recent years, significant progress has been made towards the discovery of efficient catalysts for ethane dehydrogenation, with
zeolite-derived and vanadium-based catalysts receiving a lot of attention . Given that the bond energy in is exceptionally high ( ), harsh reaction conditions are typically required to achieve the first hydrogen atom extraction from ethane (the ratelimiting step for direct ethane dehydrogenation) . Compared with direct ethane dehydrogenation, the oxidative dehydrogenation of ethane (ODHE), which utilizes an oxidant (e.g. , or ), is more thermodynamically favorable (for example, ) and can deliver both good ethane conversions and acceptable ethylene selectivities . However, thermochemical ODHE still requires high reaction
temperatures ( ) to achieve a meaningful ethane conversion, stimulating research towards alternative low-temperature ODHE processes powered by sustainable energy sources .
Photocatalysis holds great potential for the solar-driven activation of small molecules such as , and under mild conditions. Metal oxide-based semiconductor photocatalysts, such as ZnO and , have the ability to generate activated lattice oxygen upon illumination , enabling activation of inert chemical bonds via lattice oxygen-mediated photocatalytic oxidative pathways. For examples, , and photocatalysts show activity for the photocatalytic methane coupling, partial oxidation, and combustion, respectively. These catalysts all use photogenerated active oxygen species ( ) derived from or ZnO lattice oxygen for bond activation. Moreover, the introduction of metal (metal alloy) nanoparticles with appropriate metal-support interaction boosts interfacial charge transfer and surface active adsorbent conversion, thus speeding up the catalytic reaction kinetics . Tang et al. reported that photocatalyst achieved methane partial oxidation for methanol and formaldehyde production with efficient charge transfer enhanced by Au and Cu species . Whilst photocatalytic bond activation in methane conversion has received considerable attention, no research has yet been conducted on photocatalytic ODHE for ethylene production, motivating a detailed investigation.
Herein, we synthesized PdZn intermetallic nanoparticles supported on as a photocatalyst for ODHE with . Under 365 nm illumination, a flow photocatalytic system containing PdZn ZnO delivered a production rate of with selectivity. This level of performance was vastly superior to that of photocatalysts containing Pd or other intermetallic nanoparticles on ZnO , whilst also outperforming most high-temperature thermochemical ODHE processes. Our comprehensive characterization studies demonstrate that a robust interface effectively enhances the photogeneration of (from ZnO lattice oxygen), which in turn activates the bond in ethane. Further, the metalsupport interaction allows fast electron transfer for efficient dioxygen reduction and ZnO lattice oxygen replenishment. The combination of these processes significantly reduced the apparent activation energy for ODHE to only , with delivering an ethane conversion of nearly with about selectivity in simulated shale gas and showing feasibilities in the selective oxidative dehydrogenation of propane and butane. Results identify photocatalysis as a promising strategy for the selective production of ethylene from ethane at low temperatures.
Results and Discussion
Synthesis and characterization of PdZn-ZnO photocatalysts
The X-ray diffraction (XRD) pattern of the Pd-doped precursor is shown in Supplementary Fig. 1. All peaks can be assigned to monoclinic hydrozincite, No. 19-1458) . No peaks were seen for any Pd -containing species, indicating that Pd was highly dispersed in the sample . Transmission electron microscopy (TEM) revealed Pd-doped possessed a nanosheet-like structure, with energy dispersive X-ray spectroscopy (EDS) confirming that , and Pd were uniformly dispersed in the sample (Supplementary Fig. 2). After annealing at in a flow ( in Ar ) for 4 h , the precursor was transformed into a catalyst. As shown in the XRD pattern (Fig. 1a), the PdZn-ZnO catalyst consists of hexagonal wurtzite ZnO (JCPDS No. 36-1451) and tetragonal intermetallic PdZn nanoparticles (JCPDS No. 06-0620) After dissolving the ZnO support with dilute hydrochloric acid, the isolated PdZn nanoparticles show a XRD pattern matched well with the predicted PdZn intermetallic nanoparticle (Supplementary Fig. 3). The Pd loading in was determined to be , which was close to the expected nominal value (2.0 wt.%) (Supplementary Table 1). The highangle annular dark-field scanning TEM (HAADF-STEM) image and EDS
element maps confirmed the presence of PdZn intermetallic nanoparticles dispersed on ZnO nanoparticles (Fig. 1b, c). Lattice fringes with spacings of , and 0.22 nm corresponded to , ZnO (101) and PdZn (101) planes, respectively . For comparison, photocatalysts consisting of pristine ZnO and ZnO -supported Pd nanoparticles ( ) were prepared. The structure, morphology, and specific surface area of ZnO and photocatalysts were similar to that of (Supplementary Fig. 4 to 6).
The (100) crystal plane of PdZn shows an interphase arrangement of Pd and Zn atomic columns and contains of (001) and (010) planes (Fig. 1d). The aberration-corrected HAADF-STEM image of a PdZn nanoparticle (Fig. 1e) in shows highly ordered rectangular arrays with alternating bright and dark columns of atoms. The fast Fourier-transform (FFT) pattern is consistent with the simulation results for a PdZn intermetallic nanoparticle in the [010] direction (Supplementary Fig. 7). The corresponding intensity profile presents a periodic oscillation pattern in two perpendicular directions corresponding to [001] (Fig. 1f). The regular atomic configurations of Pd and Zn atoms in the PdZn nanoparticle were also evident in the corresponding elemental maps (Fig. 1g), further confirming the presence of PdZn intermetallic nanoparticles in .
Photocatalytic ODHE performance evaluation
Photocatalytic ODHE tests were carried out using a home-made continuous flow photoreactor equipped with a 365 nm LED lamp as the light source (see Methods for experimental details). A mixture of ( in ) and in with a total flow rate of was introduced as the feed gas. Figure 2a and Supplementary Table 2 show the photocatalytic production rate and selectivity for and a series of reference samples. PdZn-ZnO exhibited a production rate of with an ethylene selectivity of . No liquid carbon-containing products, such as methanol and ethanol, were formed during the photocatalytic reaction (Supplementary Fig. 8). The optimal photocatalyst dosage and nominal Pd loading were determined to be 5.0 mg and , respectively (Supplementary Fig. 9 to 11). The calcination temperature of the precursor was optimized to be (Supplementary Fig. 12 and 13). The reference delivered a production rate of with ethylene selectivity, which is significantly lower than . It should be noted that for pristine ZnO , only and traces of were generated, with no obvious enhancement observed for a physical mixture of ZnO with PdZn nanoparticles (denoted as PdZn-ZnO-mix, Supplementary Fig. 14). We also prepared other intermetallic nanoparticles (AgZn, AuZn, PtZn, CuZn) supported on ZnO (denoted as and Cu ) using methods similar to that used to prepare (Supplementary Fig. 15). However, was the major product for all these photocatalysts. In addition, catalysts containing PdZn nanoparticles on other metal oxide supports, including , and were prepared (Supplementary Fig. 16). prefer to over-oxidize to with a low selectivity of . PdZn- , and PdZn showed negligible activity under the same reaction conditions. Clearly, the ZnO support actively participated in photocatalytic ODHE over . Above results indicated that PdZn intermetallic nanoparticles, ZnO , and the interfacial contact between PdZn and ZnO were indispensable to the outstanding photocatalytic performance.
Figure 2b shows that the ratio had a strong influence on the activity and selectivity of for ethane-to-ethylene conversion. The selectivity decreased from nearly to as the ( in Ar ) / ( in Ar ) feed gas ratio was changed from to (total flow rate ). The production rate of followed a volcano-type relationship, with the highest rate achieved at a feed gas ratio of . The effect of the total flow rate was then investigated at the ratio of (Supplementary Fig. 17). The production rate increased gradually from to
Fig. 1 | Structural characterization of PdZn-ZnO. a XRD patterns. Inset: crystal structure of PdZn. b HAADF-STEM image. c Energy-dispersive X-ray element maps. d Projection in the [010] direction for tetragonal PdZn. The yellow and blue spheres represent Zn and Pd atoms, respectively. e Aberration-corrected HAADF-STEM
image. Inset: schematic of the PdZn intermetallic structure. f Intensity profiles measured from (e).g Aberration-corrected HAADF-STEM image and corresponding atomic-resolution elemental maps. , reaching a maximum of . The selectivity to remained above under these flow conditions. For a batch reactor (flow rate ), the best performance was realized after about 180 s of irradiation ( conversion, production, and ethylene selectivity, Supplementary Fig. 18), with the short time to reach the optimum being due to depletion of in the batch reactor. At higher reactant concentrations, the ethylene production rate exhibited a substantial increase, reaching up to . Notably, the ethylene selectivity showed a gradual decline from to as the concentration of reactants increased (Supplementary Fig. 19). This suggests the importance of finding a balance between the rate of product formation and selectivity. During a 12 h of continuous photocatalytic stability test under the optimized reaction condition, the production rate of over fluctuated around with no obvious deactivation and a stable ethylene selectivity of around 92% (Fig. 2c). The spent catalyst showed almost no structural changes as confirmed by
XRD (Supplementary Fig. 20). The nearly carbon balance, supported by thermogravimetric and Raman spectroscopy analyses, confirms the absence of carbon deposition (Supplementary Fig. 21-23).
As shown in Fig. 2d and Supplementary Table 3, the photocatalytic ODHE performance of was superior to representative thermocatalysts reported to date when considering the three main reaction parameters: temperature, production rate, and selectivity . Moreover, the as-developed photocatalytic system also demonstrated exceptional performance for the oxidative dehydrogenation of propane (a propene production rate of with propene selectivity) and butane (a butene production rate of with butene selectivity) (Supplementary Fig. 24). Additionally, by replacing the ethane feed gas with a simulated shale gas ( , balanced with Ar ), production rate of about was achieved, with about 87% ethylene selectivity at nearly 20% ethane conversion (Supplementary Fig. 25).

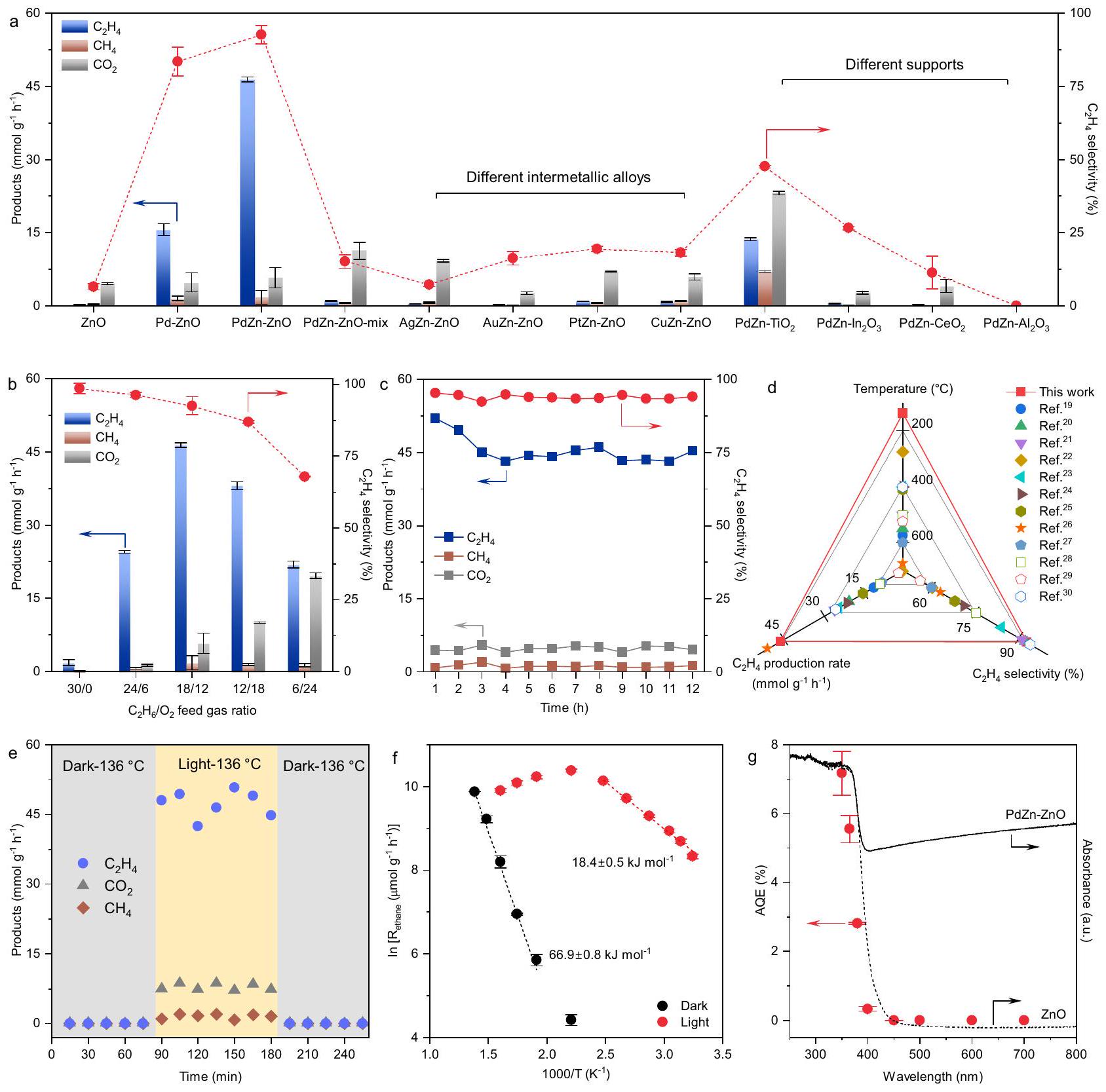

Fig. 2 | Photocatalytic ODHE performance of PdZn-ZnO. a ODHE tests over PdZnZnO and comparison photocatalysts. Reaction condition: 5.0 mg photocatalyst, in Ar, , . b Photocatalytic activity at a total flow rate of with different feed gas ratios. c Photocatalytic stability test for 12 h of continuous irradiation. d Performance comparison with reported thermocatalysts.
e Photocatalytic activity at under dark-light switch conditions. f Arrhenius plots measured in the dark and light conditions. Light intensity . g Wavelength-dependent AQE and diffuse reflectance spectra of ZnO and PdZn ZnO. Error bars represent standard deviations obtained from three independent measurements.
It is noteworthy that the surface temperature of the photocatalyst increased under light irradiation due to the photothermal effects, and reached at . (Supplementary Fig. 26a). As depicted in Fig. 2e, no significant product formation was observed by electrically heating the reactor containing to in the dark. However, on exposing the photocatalyst to light irradiation, the production rate was greatly enhanced at the same temperature, and showed a linear relationship with the light intensity (Supplementary Fig. 26b). The results indicate that the ethane oxidative dehydrogenation process involved a photocatalytic mechanism. Arrhenius plots based on ethane reaction rates ( ) at different temperatures are shown in Fig. 2g. The apparent activation energy for ODHE over under light conditions ( ) was
significantly lower than in the dark ( ), implying that photons changed the reaction pathway for ODHE and significantly reduced the reaction energy barrier. values decreased under light conditions at temperatures greater than , which is explained by shortened lifetime of photogenerated charge carriers and increased oxygen consumption due to ethane overoxidation at such high temperatures (Supplementary Fig. 27 and 28) . The wavelengthdependent apparent quantum efficiency (AQE) for photocatalytic ODHE over was found to be , and under monochromatic irradiation at , and 400 nm , respectively (Fig. 2f). This trend closely matched the absorbance spectrum of ZnO , indicating that photo-excitation of ZnO was a key process in ethylene production.
Fig. 3 | Spectral studies for reaction intermediates of photocatalytic ODHE. a -TPD and -TPD spectra for and . b In situ EPR spectra for ZnO exposed to Ar in the dark and under 365 nm irradiation, and exposed to under 365 nm irradiation. c Evolution of reactants and products
during ODHE monitored by online MS. d Time-resolved online MS data for dehydrogenation over and PdZn -ZnO. e In situ FT-IR spectra collected from in a feed gas ( 3 vol. vol. , balanced with Ar ) at different irradiation times.
Mechanistic investigations
and two reference samples, ZnO and , were selected for further mechanistic investigations. Firstly, temperatureprogrammed desorption experiments for and -TPD and -TPD) were conducted, with the results shown in Fig. 3a. The data show that desorbed at and on , and , respectively. Clearly, shows a higher desorption temperature than the other samples, indicating a strong chemical adsorption towards . Furthermore, demonstrates the highest ethane adsorption strength when compared to , and (Supplementary Fig. 29). This heightened ethane adsorption capability could be a key factor contributing to the significantly improved photocatalytic ODHE performance observed in compared to its counterparts. In the -TPD profiles, desorption signals were observed between 400 and for all three samples, which can be ascribed to the desorption of chemisorbed oxygen species. The adsorption capacity of pristine ZnO was modest, and largely attributable to adsorption/dissociation on oxygen defects produced by sample pretreatment in a hydrogen atmosphere . Once Pd or PdZn nanoparticles were introduced, the amount of adsorbed oxygen increased significantly, indicating that Pd and PdZn were the dominant active sites for adsorption and activation .
The efficient separation and transport of photogenerated charge carriers are critical for photocatalytic reactions . The photoluminescence (PL) intensity under 365 nm excitation was notably decreased for and compared with pristine ZnO , indicating improved separation of photo-excited electron-hole pairs (Supplementary Fig. 30). To investigate the carrier dynamics further, time-resolved transient absorption (TA) spectra were then recorded under 365 nm excitation and probed at 520 nm (Supplementary Fig. 31). The results showed that had the longest lifetime of photogenerated charge carriers ( 187.3 ps), compared to ( 132.9 ps ) and ZnO ( 118.6 ps ), confirming its superior carrier separation efficiency. Next, in situ electron paramagnetic resonance (EPR) experiments were conducted to investigate the electron transfer and ethane activation processes. As shown in Fig. 3b and Supplementary Fig. 32, under dark conditions exposed to Ar atmosphere, both ZnO and showed a symmetric EPR peak with a g value of 2.003 , which could be attributed to unpaired electrons trapped at oxygen vacancies in . Under light irradiation, a symmetric EPR peak at appeared for ZnO due to trapped photogenerated electrons (i.e. species) . However, this trapped electron signal was weak for , suggesting that the excited electrons in ZnO were transferred to PdZn nanoparticles, which acted as electron acceptors . Additionally, anisotropic EPR signals, namely , and , also appeared under irradiation, which can be assigned to species created by the ZnO lattice oxygen (formally ) trapping photogenerated holes . After switching the contacting atmosphere from Ar to under light conditions, the intensity of the EPR signal related to species decreased significantly for both ZnO and PdZn ZnO , inferring the reaction of surface with molecules. The results provide strong evidence for enhanced interfacial electron transfer from ZnO to PdZn in , whilst also establishing the crucial role of photogenerated surface derived from lattice oxygen in activation.
Oxygen isotope labeling tracing experiments were utilized to explore the key role of lattice oxygen in photocatalytic ODHE. Figure 3 c shows the results of the isotope experiments, with online mass spectrometry (MS) used to detect -containing products of ODHE (see Methods for more details). Firstly, a gas mixture containing and was fed to the reactor in the dark to remove residual gas impurities in the flow chamber. Upon irradiation of , strong signals due to and were observed confirming that surface lattice oxygen ( ) on ZnO was an active site for water production and ethane conversion during photocatalytic ODHE. This result was further corroborated by the -tracer experiments (Supplementary Fig. 33), in which had been pre-incorporated in the ZnO lattice of . After 10 min of illumination, the light was turned-off and the atmosphere switched to a gas mixture of and . The detection of in the oxygen-containing gas products ( ) confirmed that from the feed replenished during the first irradiation period and could participate in the following ODHE reaction. This lattice oxygen replenishment process was also confirmed by the light-induced oxygen isotope exchange effect between and PdZn-ZnO (Supplementary Fig. 34).
Time-resolved online MS spectra for dehydrogenation over , and ZnO were then collected (Fig. 3d). An ethane gas flow was first introduced into the reactor, with a signal being detected for all photocatalysts under light irradiation as a result of lattice oxygen consumption and generation on ZnO during the ODHE reaction. The light was then turned off and the atmosphere switched to for a period of time. When the light was again turned on, the signal for in the gas phase decayed, indicating the consumption of to fill sites. showed the highest water generation and dioxygen consumption signals under illumination, indicating a significantly promoted lattice oxygen-mediated photocatalytic ODHE through a photo-enhanced Mars-van Krevelen (M-K) pathway. That is, the photogenerated surface from lattice oxygen on ZnO extracts hydrogen atoms from ethane, resulting in the formation of water molecules and . Then, adsorbed on PdZn is activated by photo-excited electrons, with the molecule dissociating to fill and complete the reaction cycle.
In situ Fourier transform infrared (FT-IR) spectra were collected to gain additional information about the reaction intermediates and reaction mechanism (see Methods for experiment details). As shown in Fig. 3e, a series of absorption peaks appeared over in a feed gas ( , balanced with Ar ) under light conditions, with the intensities of the peaks gradually increasing with irradiation time. A bending vibration at was detected , indicating the presence of surface-adsorbed hydroxyl groups (OH) generated by hydrogen atom extraction from ethane on surface lattice oxygen (i.e. photo-generated sites) of . The absorption peaks at , together with the absorption band around , could be assigned to and stretching vibrations of adsorbed intermediates . The peaks at and were assigned to adsorbed carboxyl species (HCOO) species associated with ethane overoxidation products, which were also evidences by gaseous peaks at and . The FT-IR results demonstrate the formation of surfaceadsorbed , and during ODHE over .
These are the expected intermediates for lattice oxygen-mediated photocatalytic ODHE (along with some minor intermediates and products associated with the over-oxidation of ethane).

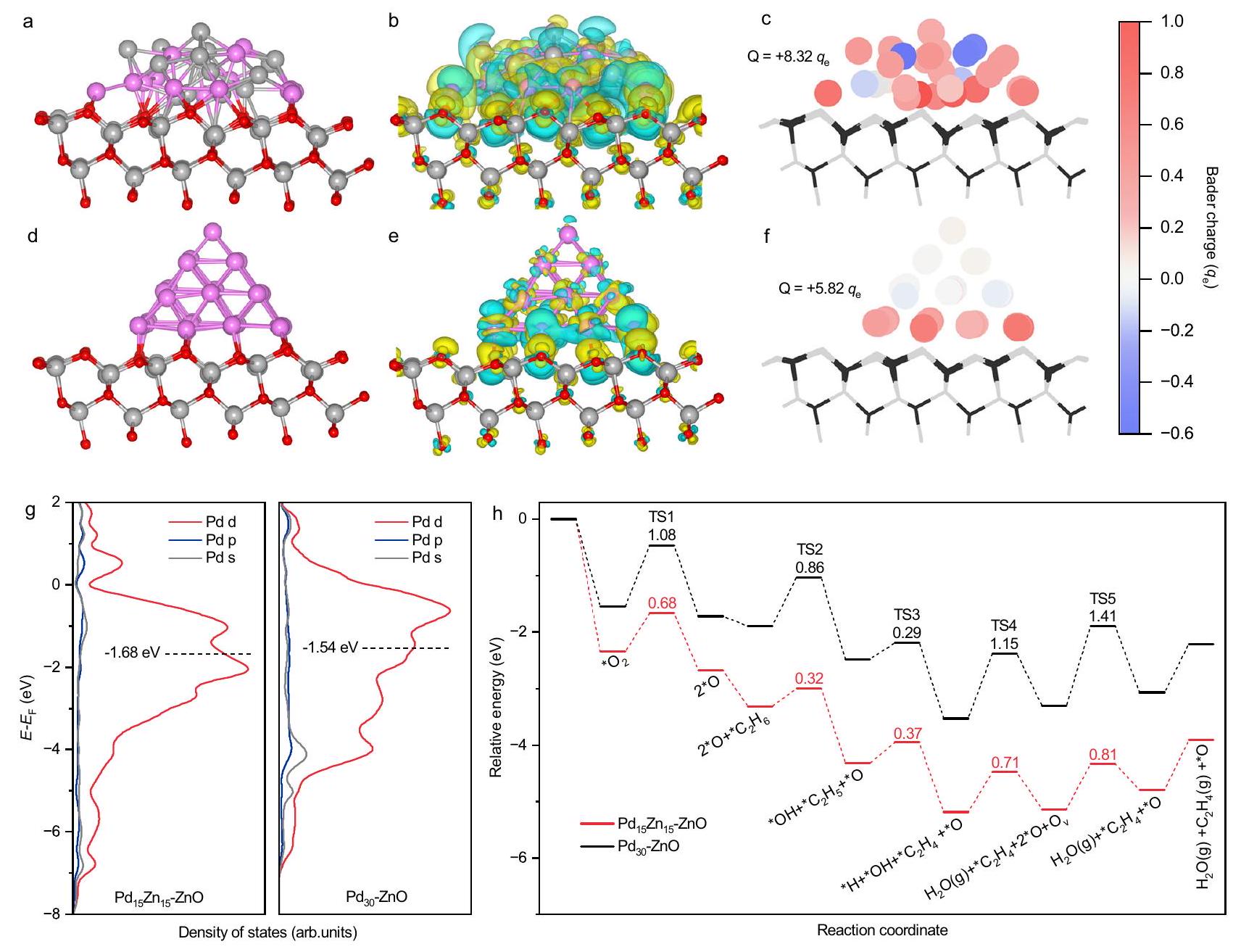

To gain a better understanding of the electron transfer processes and reaction transition states (TS) occurring at the interface between the metal nanoparticle ( PdZn or Pd ) and the ZnO support, density functional theory (DFT) calculations were performed. Two models were built and optimized to simulate the structure of and . A cluster supported on (denoted as ) was used to represent , whilst a cluster supported on (denoted as ) was used to represent , as shown in Fig. 4a, d. A charge density difference comparison between the two models revealed that charge redistribution is localized in a limited region near the interface between metal nanoparticles and ZnO supports (Fig. 4b, e). Bader charge analysis predicted increased charge accumulation ( ) on the cluster (Fig. 4c) compared to the cluster ( , Fig. 4f), indicating that electron transfer from PdZn to ZnO was enhanced compared to electron transfer from Pd to ZnO . The higher binding energy of the Pd 3d signal in than in also signifies a more pronounced electron deficiency state associated with interfacial electron transfer (Supplementary Fig. 35). DFT calculations also showed that the strong interfacial electron delocalization and transfer in resulted in a more negative Pd d-band center position ( -1.68 eV ) compared with Fig. 4 g. The more negative d -band center in the case of supported PdZn contributes to a downshifted antibonding state for oxygen adsorbates, leading to an increased d orbital occupancy and weakened adsorption energy of activated oxygen adsorbates . This was expected to be beneficial for subsequent lattice oxygen replenishment processes on adjacent ZnO during ODHE.
The reaction kinetics of dioxygen activation and ethane dehydrogenation to ethylene over and were then simulated, and the energy profiles are shown in Fig. 4h. Additional information on the models and energy values are summarized in Supplementary Fig. 36-37 and Supplementary Table 4-5. The adsorption energy of on was found to be significantly higher ( -2.35 eV ) than that on . The adsorbed oxygen ( ) then dissociates to two oxygen atoms ( ), with activation barriers ( ) of 0.68 eV and 1.08 eV on and , respectively. These results are consistent with the rapid oxygen consumption over observed on the time-resolved online MS (Fig. 3d). was found to have an of 0.32 eV for -assisted bond scission in , TS2), which was 0.54 eV lower than that of , indicating that ethane activation was kinetically favored over . Subsequently, the of is extracted to form and on ZnO (TS3). Then, and *H combine to form (TS4) via two possible pathways, with the oxygen in coming from either surface lattice oxygen (M-K pathway) or dissociated dioxygen (Langmuir-Hinshelwood, L-H pathway). The barriers of these two pathways over were calculated to be 0.71 eV and 0.92 eV , respectively (Supplementary Fig. 38 and 39), suggesting that the pathway is kinetically favored. The pathway leaves an on ZnO and an additional *O on PdZn , respectively, followed by a ZnO lattice oxygen replenishment process between the two species (TS5) with an of exhibits larger for both TS4 and TS5 compared with (Supplementary Fig. 40 and 41 ). We compared the energy profiles of the first two reaction steps (TS1 and TS2 as potential rate-determining steps) with models constructed for other Pd -based intermetallic nanoparticles on and . Results showed that exhibited the lowest for both oxygen activation and hydrogen extraction from ethane, validating its outstanding photocatalytic ODHE performance (Supplementary Fig. 42 and 43).
Based on the results presented, we propose a probable reaction mechanism for the selective photocatalytic ODHE over PdZn-ZnO (Fig. 5). Initially, photoexcited electron-hole pairs are generated in ZnO under UV ( 365 nm ) irradiation. The photogenerated electrons in ZnO are efficiently transferred to PdZn nanoparticles, activating to adsorbed oxygen atoms. Meanwhile, the photogenerated holes reaching the surface lattice oxygen of ZnO to form , which activates bond scission in to form and . Subsequently, cleavage in * leads to the formation of * and a water molecule, both of which desorb from the photocatalysts (leaving an on the ZnO surface). Finally, the is filled by the adsorbed oxygen atom spilling over from the PdZn sites.
In summary, we report the first example of selective photocatalytic ODHE with for ethylene production. A PdZn-ZnO photocatalyst, containing PdZn intermetallic nanoparticles, was prepared via thermal hydrogen reduction of a Pd-doped precursor. The strong electron transfer interactions at the interface promotes the photogeneration of surface active sites on ZnO to activate the bonds in ethane, leading to the formation of ethylene and water. Photo-excited electron transfer from ZnO to PdZn facilitated dioxygen dissociation, allowing fast replenishment of ZnO lattice oxygen consumed in the Mars-van Krevelen mechanism.
Photocatalytic ODHE on PdZn-ZnO had an apparent activation energy of under irradiation conditions, much lower than that in the dark ( ). The photocatalyst shows an ethylene production rate of with selectivity at low temperatures, exhibiting high alkene production rates and selectivity for photocatalytic dehydrogenation of propane and butane, as well as ethane in simulated shale gas. This work offers a proof-of-concept investigation, demonstrating that low-temperature photocatalytic ODHE is a promising new approach for ethylene production from ethane-containing feedstocks. Future work should be directed towards more detailed investigation of reaction mechanisms and also reactor designs for process scale-up.
Methods
Chemicals
and were obtained from Beijing Innochem Science & Technology Co., Ltd. , were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. and a mixed reactant gas ( , balanced with Ar ) were purchased from Beijing Beiyang United Gas Co., Ltd. isotopically labeled oxygen ( in Ar) was obtained from Shanghai Maotoo and . The red and blue spheres indicate the extent of charge depletion (positive) and accumulation (negative). g Density of states of Pd atoms in and . The horizontal dashed lines indicate the calculated d -band center. represents the energy relative to the Fermi energy level. Calculated potential energy diagrams for ODHE to on and .

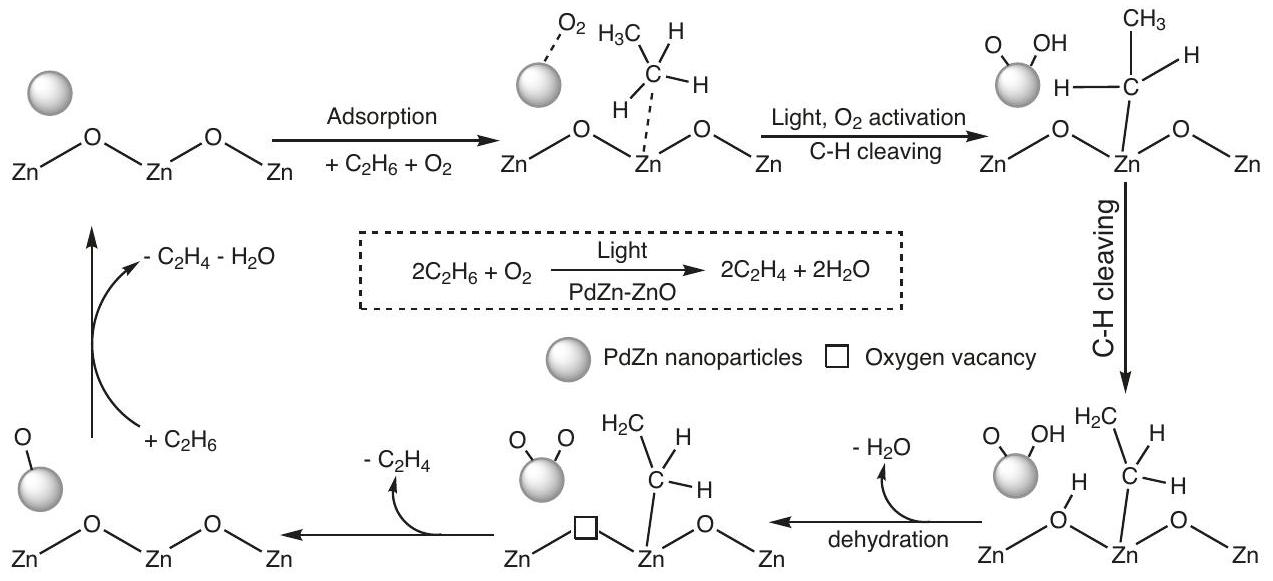

Fig. 5 | Proposed reaction mechanism for photocatalytic ODHE over PdZn-ZnO. Bond angles and bond lengths are not accurate in the schematic. The gray sphere represents a PdZn nanoparticle.
Specialty Gases Co., Ltd. All materials were used without further purification. Deionized water was used in the synthesis of all catalysts.
Preparation of catalysts
(a) PdZn-ZnO. Pd-doped precursor (Pd ) was synthesized according a commonly used coprecipitation method. Typically, for the preparation of the PdZn – ZnO photocatalyst, and a certain amount of were dissolved in deionized water. Then, a aqueous solution was added dropwise to the metal salt solution under continuous stirring. Next, the product was collected by centrifugation, washed several times with deionized water and then finally vacuum freeze-dried for 24 h . Next, the precursor was heated at to under a flow ( ), then held at for 4 h .
(b) . The synthesis methods for photocatalysts (with the mass percentage of Au, or relative to ZnO ), were similar to those described for the photocatalyst with different metals salts being used as required.
(c) ZnO and . Pristine ZnO photocatalyst was prepared by heating at in a flow for 4 h . The Pd-ZnO photocatalysts was synthesized using a reduction method with the above synthesized ZnO as raw material, followed by heating in a nitrogen gas stream at for 4 h .
(d) PdZn-ZnO-mix. For the synthesis of PdZn-ZnO-mix sample, 1.0 g of was immersed in 30 mL of an aqueous solution for 10 min to dissolve the ZnO support, then collected by centrifugation and washed with water. The obtained PdZn nanoparticles was dispersed in 100 mL of deionized water together with 980 mg of ZnO . The PdZn and ZnO dispersion was sonicated for 30 min , followed by freeze-dried for 24 h .
Characterizations
The structure and crystallinity of the photocatalysts were examined by X-ray diffraction (XRD, Bruker AXSD8 Advance, Germany). The diffractometer was equipped with a radiation source ( ) operating at 40 kV . Morphologies and structure of the photocatalysts were studied using TEM (JEM, 2100 F , Japan). The aberration-corrected HAADF-STEM images and corresponding high-resolution EDS analyses were performed using a JEOL JEM-ARM300F atomic resolution electron microscope with a double spherical aberration corrector.
Nitrogen adsorption/desorption isotherms were collected at 77 K on a Quadrasorb SI MP apparatus. Specific surface areas were calculated via the BET method. Diffuse reflectance spectra were recorded on a Cary 7000 (Agilent) spectrometer equipped with an integrating sphere attachment. The actual metal contents in the photocatalysts were determined by inductively coupled plasma-optical emission spectroscopy (ICP-OES, Varian 710). -TPD profiles were obtained using an AutoChem II 2920 (Micromeritics Instrument Corporation). Photocatalysts ( 200.0 mg ) were pretreated under a He atmosphere for 60 min at , using a heating rate of . After cooling to , photocatalysts were kept under a pure atmosphere for 60 min to achieve adsorption saturation. Next, the samples were kept under a He flow ( ) for 60 min to remove any weakly physically adsorbed ethane. Finally, the -TPD tests were carried out by heating the photocatalysts from to at a heating rate of under a He carrier gas, with a mass spectrometer used for detection. The test method for -TPD experiments was similar to -TPD tests, except that is replaced by .
In situ EPR spectra were collected on a Bruker E500 spectrometer. Before the EPR tests, the catalyst was pre-treated at for 2 h under an Ar flow to remove any surface adsorbed species. 50.0 mg of photocatalyst was loaded into a quartz tube and evacuated. Then, Ar or gas was introduced into the EPR tube. EPR spectra were recorded in the dark and light conditions at 110 K .
Time-resolved online MS experiments were performed in a homemade fixed-bed stainless steel flow reactor (volume ) with a quartz window on the top for irradiation of photocatalysts. The reactor was coupled to a mass spectrometer (SPIMS 2000, Hexin mass spectrum). Before each test, 20.0 mg of photocatalyst was uniformly dispersed on a glass fiber membrane and the modified membrane was then pretreated in an Ar gas flow at for 2 h to remove any impurities from the membrane.
In situ Fourier transform infrared spectroscopy (FT-IR) data were collected on a Bruker Vertex 70 V FT-IR spectrometer equipped with a narrowband HgCdTe detector and a transmission reaction chamber (Harrick) connected to an evacuation line ( ). 5.0 mg of PdZn-ZnO photocatalyst was pressed into a self-supported pellet ( 7.0 mm in diameter) and placed in the transmission chamber. In a typical in situ FT-IR experiment, the photocatalyst pellet was first purged with for 30 min to remove impurities adsorbed on the surface. Then, reactant gas ( 3 vol. vol. , balanced with ) was introduced into the chamber. After 30 min of reactant adsorption, a background FT-IR spectrum was then recorded. Further FT-IR spectra were then collected every minute in
the reaction atmosphere under illumination from a 150 mW continuous diode laser ( 375 nm ), which served as the light source. Each spectrum was recorded by averaging 200 scans collected at a scanning velocity of 40 kHz and a resolution of .
Photocatalytic activity measurements
Photocatalytic ODHE tests were conducted in a custom-built fixed-bed stainless steel flow reactor (volume ) with a quartz window on the top for light irradiation (Supplementary Fig. 44). Typically, photocatalyst ( 5.0 mg ) was uniformly spread on a glass fiber membrane (Whatman, GE Healthcare Life Sciences, catalog number 1823047) and then placed in the reactor (parallel to the quartz window). Then, a reaction gas comprising and ( in ) with a total flow rate of was introduced to the reactor. After purging for 30 min to remove the air in the reactor. a 365 nm LED lamp ( 100 W 365 nm LED, Beijing PerfectLight Technology Co., Ltd., PLS-LED100C) was applied as light source to drive the reaction. Gas samples in the outlet were analyzed using a gas chromatograph (Shimadzu GC-2014, Shimadzu Co., Japan) equipped with three channels. The first channel analyzed hydrocarbons in an HP PLOT column with He as a carrier gas and a flame ionization detector (FID). The second channel analyzed , and CO with a combination of micropacket Haysep Q, H-N, and Molsieve columns using He as the carrier gas and a thermal conductivity detector (TCD). The third channel analyzes using a micropacket HayeSep Q and Molsieve column with as a carrier gas and a TCD detector. For the batch-reactor test, a batch type reactor (volume= 56.0 mL ) was used. After evacuation of the reaction system, reaction gas ( , balanced with Ar ) was introduced into the reactor until the pressure reached 0.3 MPa , after which the photocatalyst was exposed to the 365 nm LED light source.
The selectivity is calculated according to the following equation.
where and represent the moles of and at the outlet, respectively. The conversion rate is calculated based on products according to the following equation.
where represents the moles of at the inlet. The carbon balance is calculated according to the following equation.
where represent the moles of at the outlet, respectively. The AQE was calculated according to the following equation.
where (electrons) and (photons) represent the number of reacted electrons and the number of incident photons, respectively. According to the chemical equation , electrons , where and , represent the moles of produced and , respectively. (photons) , where , and represent light intensity ( ), irradiation area ( ), irradiation time ( s ) and photon energy (J), respectively. , where , and represent
Planck’s constant, light speed, and monochromatic light wavelength, respectively. The light intensity I at different wavelengths ( , , and 700 nm ) was measured to be 51.3, 52.6, , and by xenon lamp ( 300 W Xe lamp, Beijing Perfectlight Technology Co. Ltd, PLS-SXE300D) source and band pass filter (Supplementary Fig. 45). Since the surface temperature of the catalyst was around room temperature under monochromatic light irradiation, the contribution of heat induced by illumination during AQE tests was not considered.
Computational details
First-principles spin-polarized calculations were performed using the Vienna ab initio Simulation Program (VASP) . The generalized gradient approximation (GGA) in the Perdew-Burke-Ernzerhof (PBE) form and a cutoff energy of 700 eV for planewave basis set were adopted . A Monkhorst-Pack grid was used for sampling the Brillouin zones in the structure calculations. Ion-electron interactions were described by the projector augmented wave (PAW) method . The convergence criteria for structure optimization was a maximum force less than on each atom with an energy change less than . The DFT-D3 semiempirical correction was described via Grimme’s scheme method .
Since the main exposed facets of ZnO were (101), a model was used for the calculations. The surface was modelled by a unit cell based on an initial structure with lattice parameters . cluster with fifteen Pd atoms and fifteen Zn atom was used to simulate a PdZn intermetallic nanoparticle, whilst cluster with thirty Pd atoms was used to simulate a Pd nanoparticle. The above and clusters were placed on surface to form models and , respectively. Models similar to were used to build , , and .
To calculate the kinetic energy barrier of chemical reactions, the climbing image nudged elastic band (CI-NEB) method was used to search for the , with convergence criteria a force below was calculated using , where and represents the energy of TS and the initial state.
Data availability
The datasets generated and/or analyzed during the current study are available from the corresponding author on reasonable request. Received: ((will be filled in by the editorial staff)) Accepted: ((will be filled in by the editorial staff)) Published online: ((will be filled in by the editorial staff)) Source data are provided with this paper.
References
Li, X., Pei, C. & Gong, J. Shale gas revolution: catalytic conversion of light alkanes to value-added chemicals. Chem 7, 1755-1801 (2021).
Melzer, D. et al. Design and synthesis of highly active MoVTeNb-oxides for ethane oxidative dehydrogenation. Nat. Commun. 10, 4012 (2019).
Yang, Z. et al. Coking-resistant iron catalyst in ethane dehydrogenation achieved through siliceous zeolite modulation. J. Am. Chem. Soc. 142, 16429-16436 (2020).
Xie, Z., Wang, X., Chen, X., Liu, P. & Chen, J. G. General descriptors for -assisted selective bond scission in ethane. J. Am. Chem. Soc. 144, 4186-4195 (2022).
Venegas, J. M., McDermott, W. P. & Hermans, I. Serendipity in catalysis research: boron-based materials for alkane oxidative dehydrogenation. Acc. Chem. Res. 51, 2556-2564 (2018).
Cavani, F., Ballarini, N. & Cericola, A. Oxidative dehydrogenation of ethane and propane: How far from commercial implementation? Catal. Today 127, 113-131 (2007).
Song, S. et al. A selective hybrid photocatalyst for oxidative coupling of methane to ethane with dioxygen. Nat. Catal. 4, 1032-1042 (2021).
Zhang, W. et al. High-performance photocatalytic nonoxidative conversion of methane to ethane and hydrogen by heteroatomsengineered . Nat. Commun. 13, 2806 (2022).
Song, H. et al. Direct and selective photocatalytic oxidation of to oxygenates with on cocatalysts/ ZnO at room temperature in water. J. Am. Chem. Soc. 141, 20507-20515 (2019).
Chen, X . et al. Photocatalytic oxidation of methane over silver decorated zinc oxide nanocatalysts. Nat. Commun. 7, 12273 (2016).
Parastaev, A. et al. Boosting hydrogenation via size-dependent metal-support interactions in cobalt/ceria-based catalysts. Nat. Catal. 3, 526-533 (2020).
Luo, L. et al. Binary Au-Cu reaction sites decorated ZnO for selective methane oxidation to oxygenates with nearly selectivity at room temperature. J. Am. Chem. Soc. 144, 740-750 (2022).
Xiong, P. et al. Zn-ion transporting, in situ formed robust solid electrolyte interphase for stable zinc metal anodes over a wide temperature range. ACS Energy Lett. 8, 1613-1625 (2023).
Zhang, F. et al. Catalytic activity of catalysts mediated by MgO promoter in hydrogenation of methyl acetate to ethanol. J. Energy Chem. 61, 203-209 (2021).
Ye, C. et al. PdZn intermetallic compound stabilized on nitrogen-decorated carbon hollow spheres for catalytic semihydrogenation of alkynols. Nano Res 15, 3090-3098 (2022).
Hu, M. et al. MOF-confined sub-2 nm atomically ordered intermetallic PdZn nanoparticles as high-performance catalysts for selective hydrogenation of acetylene. Adv. Mater. 30, 1801878 (2018).
Qiu, Y. et al. Construction of Pd-Zn dual sites to enhance the performance for ethanol electro-oxidation reaction. Nat. Commun. 12, 5273 (2021).
Zabilskiy, M. et al. Mechanistic study of carbon dioxide hydrogenation over Pd/ZnO-based catalysts: the role of palladium-zinc alloy in selective methanol synthesis. Angew. Chem. Int. Ed. 60, 17053-17059 (2021).
Huang, R. et al. Direct insight into ethane oxidative dehydrogenation over boron nitrides. ChemCatChem 9, 3293-3297 (2017).
Sarkar, B. et al. nanoclusters decorated on nanorods for oxidative dehydrogenation of ethane to ethylene. Appl. Catal., B 217, 637-649 (2017).
Luongo, G. et al. Highly selective oxidative dehydrogenation of ethane to ethylene via chemical looping with oxygen uncoupling through structural engineering of the oxygen carrier. Adv. Energy Mater. 12, 2200405 (2022).
Solsona, B., Concepción, P., Hernández, S., Demicol, B. & Nieto, J. M. L. Oxidative dehydrogenation of ethane over mixed oxides catalysts. Catal. Today 180, 51-58 (2012).
Dang, D., Chen, X., Yan, B., Li, Y. & Cheng, Y. Catalytic performance of phase-pure composite for oxidative dehydrogenation of ethane. J. Catal. 365, 238-248 (2018).
Ykrelef, A. et al. Mixed oxide TiSiO prepared by non-hydrolytic Xerogel method as a diluter of nickel oxide for the oxidative dehydrogenation of ethane. Catal. Today 299, 93-101 (2018).
Zhang, Z. et al. Low-temperature, highly selective, highly stable -foam catalyst for the oxidative dehydrogenation of ethane. Catal. Sci. Technol. 8, 4383-4389 (2018).
Lu, J. et al. Coking-and sintering-resistant palladium catalysts achieved through atomic layer deposition. Science 335, 1205-1208 (2012).
Kong, L. et al. Oxidative dehydrogenation of ethane to ethylene over Mo-incorporated mesoporous SBA-16 catalysts: The effect of dispersion. Appl. Catal. A-Gen. 510, 84-97 (2016).
Kong, L. et al. Template-induced mesoporous oxide catalysts with tuned physico-chemical properties for the oxidative dehydrogenation of ethane. Chem. Eng. J. 452, 139247 (2023).
Cao, X. et al. Boron and nitrogen co-doped porous carbon nanospheres for oxidative dehydrogenation of ethane to ethylene. Carbon 197, 120-128 (2022).
Yan, P., Chen, Y. & Cheng, Y. Industrially potential MoVNbTeOx@FoamSiC structured catalyst for oxidative dehydrogenation of ethane. Chem. Eng. J. 427, 131813 (2022).
Shi, R. et al. Structural disorder in higher-temperature phases increases charge carrier lifetimes in metal halide perovskites. J. Am. Chem. Soc. 144, 19137-19149 (2022).
Yang, Y. et al. Oxygen-vacancy-induced activation and electron-hole migration enhance photothermal catalytic toluene oxidation. Cell Rep. Phys. Sci. 3, 101011 (2022).
Rieboldt, F., Bechstein, R., Besenbacher, F. & Wendt, S. Vicinal rutile surfaces and their interactions with . J. Phys. Chem. C. 118, 3620-3628 (2014).
Xu, C. et al. Nanostructured materials for photocatalysis. Chem. Soc. Rev. 48, 3868-3902 (2019).
Kang, L. et al. Photo-thermo catalytic oxidation over a -supported platinum catalyst. Angew. Chem. Int. Ed. 59, 12909-12916 (2020).
Zhu, S. et al. Efficient photooxidation of methane to liquid oxygenates over ZnO Nanosheets at atmospheric pressure and near room temperature. Nano Lett. 21, 4122-4128 (2021).
Shoji, S. et al. Photocatalytic uphill conversion of natural gas beyond the limitation of thermal reaction systems. Nat. Catal. 3, 148-153 (2020).
Wang, P. et al. Selective photocatalytic oxidative coupling of methane via regulating methyl intermediates over metal/ZnO nanoparticles. Angew. Chem. Int. Ed. 62, e202304301 (2023).
Wang, W. et al. Photocatalytic C-C coupling from carbon dioxide reduction on copper oxide with mixed-valence copper(I)/copper(II.).J. Am. Chem. Soc 143, 2984-2993(2021).
Bian, Y., Kim, M., Li, T., Asthagiri, A. & Weaver, J. F. Facile dehydrogenation of ethane on the surface. J. Am. Chem. Soc. 140, 2665-2672 (2018).
Zhang, R. et al. Photocatalytic oxidative dehydrogenation of ethane using as a soft oxidant over catalysts to and syngas. ACS Catal. 8, 9280-9286 (2018).
Ye, L., Duan, X. & Xie, K. Electrochemical oxidative dehydrogenation of ethane to ethylene in a solid oxide electrolyzer. Angew. Chem. Int. Ed. 60, 21746-21750 (2021).
He, Y. et al. In situ identification of reaction intermediates and mechanistic understandings of methane oxidation over hematite: a combined experimental and theoretical study. J. Am. Chem. Soc. 142, 17119-17130 (2020).
Luo, M. et al. PdMo bimetallene for oxygen reduction catalysis. Nature 574, 81-85 (2019).
Lee, B.-H. et al. Supramolecular tuning of supported metal phthalocyanine catalysts for hydrogen peroxide electrosynthesis. Nat. Catal. 6, 234-243 (2023).
Wang, P. et al. Efficient photocatalytic aerobic oxidation of bisphenol A via gas-liquid-solid triphase interfaces. Mater. Today Energy 23, 100908 (2022).
Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 54, 11169-11186 (1996).
Kresse, G. & Furthmüller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 6, 15-50 (1996).
Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 77, 3865-3868 (1996).
Monkhorst, H. J. & Pack, J. D. Special points for Brillouin-zone integrations. Phys. Rev. B 13, 5188-5192 (1976).
Blöchl, P. E. Projector augmented-wave method. Phys. Rev. B 50, 17953-17979 (1994).
Grimme, S., Antony, J., Ehrlich, S. & Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 132, 154104 (2010).
Harl, J., Schimka, L. & Kresse, G. Assessing the quality of the random phase approximation for lattice constants and atomization energies of solids. Phys. Rev. B 81, 115126 (2010).
Henkelman, G., Uberuaga, B. P. & Jónsson, H. A climbing image nudged elastic band method for finding saddle points and minimum energy paths. J. Chem. Phys. 113, 9901-9904 (2000).
Henkelman, G. & Jónsson, H. Improved tangent estimate in the nudged elastic band method for finding minimum energy paths and saddle points. J. Chem. Phys. 113, 9978-9985 (2000).
Acknowledgements
The authors are grateful for financial support from the National Key R&D Program of China (2023YFA1507201), the National Natural Science Foundation of China (51825205, 52120105002, 22272190, 22088102), the Beijing Natural Science Foundation (2222035), the CAS Project for Young Scientists in Basic Research (YSBR-004), the DNL Cooperation Fund, CAS (DNL202016), and the Youth Innovation Promotion Association of the CAS. GINW acknowledges funding support from the Royal Society Te Apārangi (for a James Cook Research Fellowship), the MacDiarmid Institute for Advanced Materials and Nanotechnology, and the Energy Education Trust of New Zealand. The authors would like to thank Yueru Wu from Shiyanjia Lab (www.shiyanjia.com) for assistance with the TPD experiments.
Author contributions
R.S. and T.Z. supervised the project. P.W. conceived the idea for the project and performed catalyst synthesis, characterization and photocatalytic tests. X.Z. participated in data processing for DFT calculations. J.Z. and R.S. assisted in data analysis. P.W. wrote the manuscript. R.S., G.I.N.W., J.T. and T.Z. revised the manuscript. All authors discussed the results and commented on the manuscript at all stages.
Correspondence and requests for materials should be addressed to Run Shi or Tierui Zhang.
Peer review information Nature Communications thanks Liang Wang and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. A peer review file is available.
Key Laboratory of Photochemical Conversion and Optoelectronic Materials, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China. Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China. Functional Crystals Lab, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China. School of Chemical Sciences, The University of Auckland, Auckland 1142, New Zealand. Department of Chemical Engineering, University College London, London WC1E 7JE, UK. Industrial Catalysis Center, Department of Chemical Engineering, Tsinghua University, Beijing 100084, China. e-mail: shirun@mail.ipc.ac.cn; tierui@mail.ipc.ac.cn
